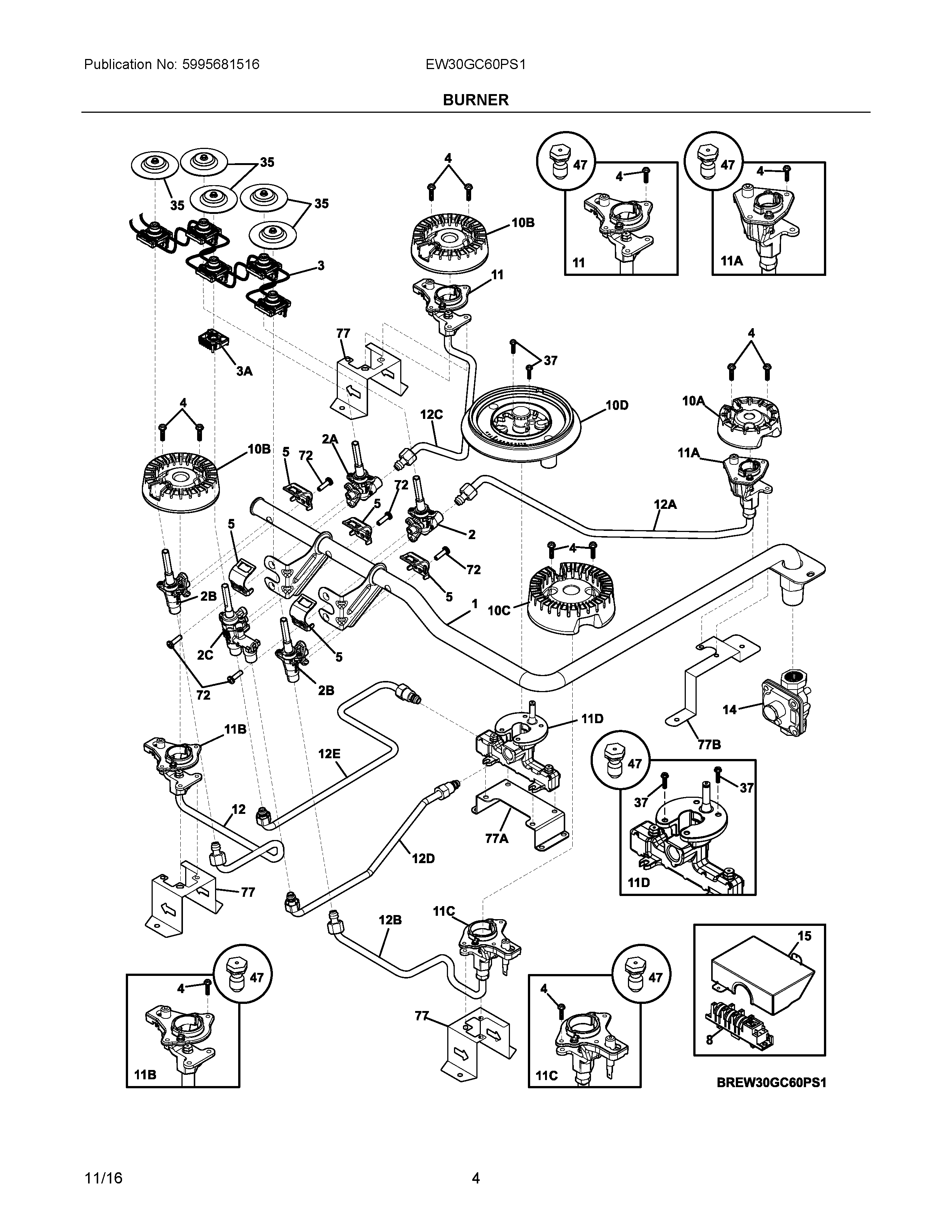

EW30GC60PS1 03 – BURNER

EW30GC60PS1 03 – BURNER

Written by

in

EW30GC60PS1 03 – BURNER

Products

PositionProduct
NIAWCI 318199780
NI305338702 Frigidaire Screw
NIA803910601 Frigidaire Screw
NIDA316566901 Frigidaire Oven Sleeve
NIB305452800 Frigidaire Screw
NI305338602 Frigidaire Screw
15304508470 Frigidaire Manifold Pipe
2A5304508472 Frigidaire Oven Valve
2C5304508465 Frigidaire Oven Valve
2B5304508464 Frigidaire Oven Valve
25304508471 Frigidaire Oven Valve
3A5304508439 Frigidaire Oven Adapter Assembly
35304527828 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
8SPARK MODULE
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10D5304501023 Frigidaire Burner Assembly
11C5304498788 Frigidaire Igniter/Orifice Assembly
11WCI 5304499396
11B5304498787 Frigidaire Igniter Assembly/Orifice
11A5304498786 Frigidaire Igniter/Orifice Assembly
11D5304529110 Frigidaire Igniter/Orifice Assembly
12EWCI 5304508473
12D5304527977 Frigidaire Tube
12CWCI 318560726
12B318560723 Frigidaire Tube
12AWCI 318560724
12WCI 318560725
145304519943 Frigidaire Regulator
15WCI 318024209
355304508440 Frigidaire Bushing
37305309701 Frigidaire Oven Screw
47WCI 5304506288
725304508436 Frigidaire Oven Screw
77AWCI 305583001
77WCI 318920309
77BWCI 318920304
