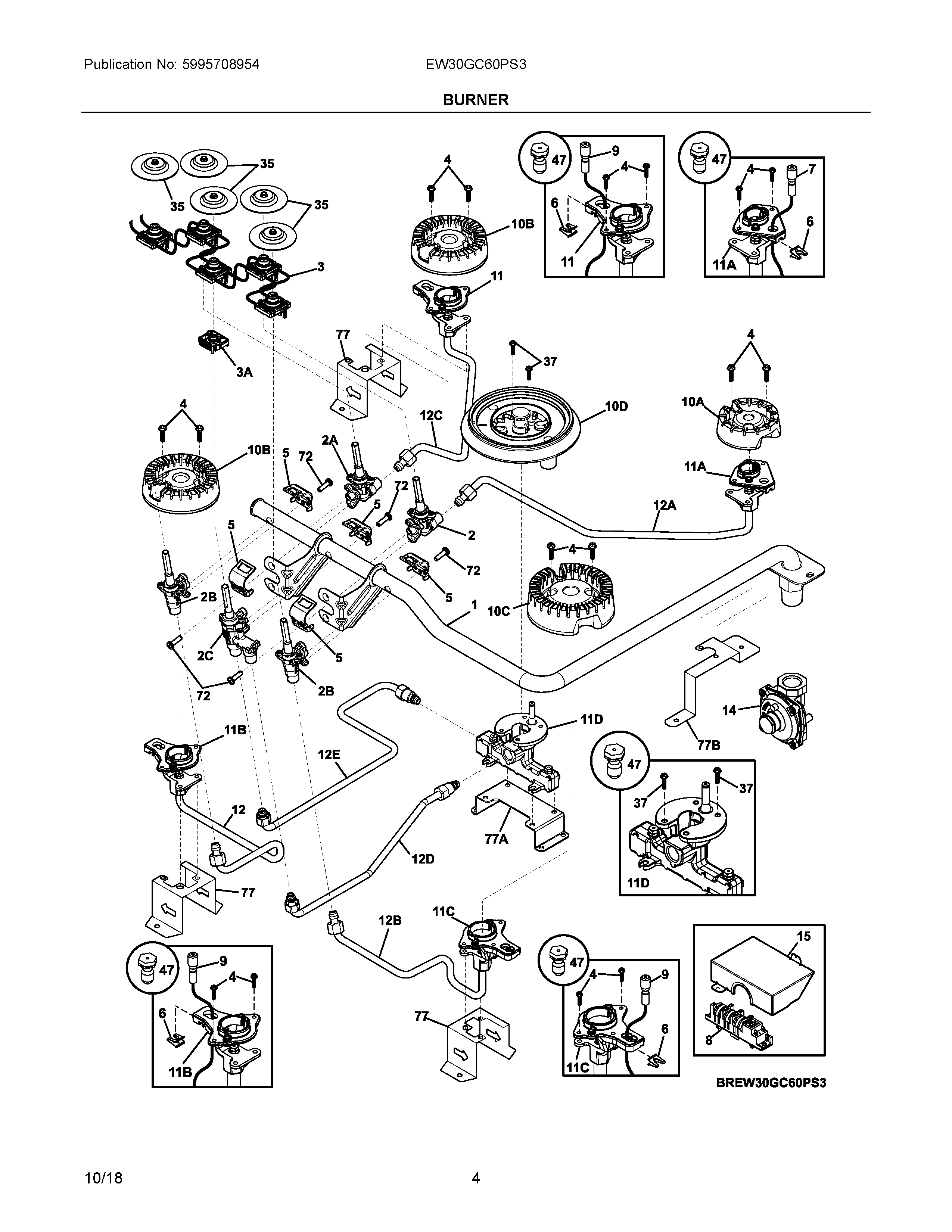

EW30GC60PS3 03 – BURNER
Written by
in
EW30GC60PS3 03 – BURNER
Products
Position
Product
NIA
305452800 Frigidaire Screw
NI
305338702 Frigidaire Screw
NIA
CA
NIB
5304516456 Frigidaire Wire
NI
305338602 Frigidaire Screw
NIA
803910601 Frigidaire Screw
NIDA
WIRING, IGNITOR, G5-600MM, TWIN BURNER, W/SLEEVE
NID
316566901 Frigidaire Oven Sleeve
1
MANIFOLD PIPE
2
5304508471 Frigidaire Oven Valve
2B
5304508464 Frigidaire Oven Valve
2C
5304508465 Frigidaire Oven Valve
2A
5304508472 Frigidaire Oven Valve
3A
5304508439 Frigidaire Oven Adapter Assembly
3
5304527828 Frigidaire Switch Assembly
4
316240600 Frigidaire Igniter Mounting Screw
5
357733402 Frigidaire Oven Bracket
6
SPRING CLIP IGNITOR
7
5304516453 Frigidaire Igniter
8
SPARK MODULE
9
5304516454 Frigidaire Igniter
10A
316438200 Frigidaire Range Sealed Burner, 5K
10D
5304519952 Frigidaire Burner Assembly
10B
316558300 Frigidaire Oven 9.5L Sealed Burner
10C
316438600 Frigidaire Range Sealed Burner, 14K
11DB
5304529110 Frigidaire Igniter/Orifice Assembly
11B
5304516450 Frigidaire Oven Holder
11
5304516458 Frigidaire Holder
11A
5304516449 Frigidaire Oven Holder
11C
5304516451 Frigidaire Oven Holder
12E
WCI 5304508473
12D
5304527977 Frigidaire Tube
12C
WCI 318560726
12B
318560723 Frigidaire Tube
12A
WCI 318560724
12
WCI 318560725
14
5304519943 Frigidaire Regulator
15
WCI 318024209
35
5304508440 Frigidaire Bushing
37
305309701 Frigidaire Oven Screw
47
WCI 5304506288
72
5304508436 Frigidaire Oven Screw
77A
WCI 305583001
77
WCI 318920309
77B
WCI 318920304
←
