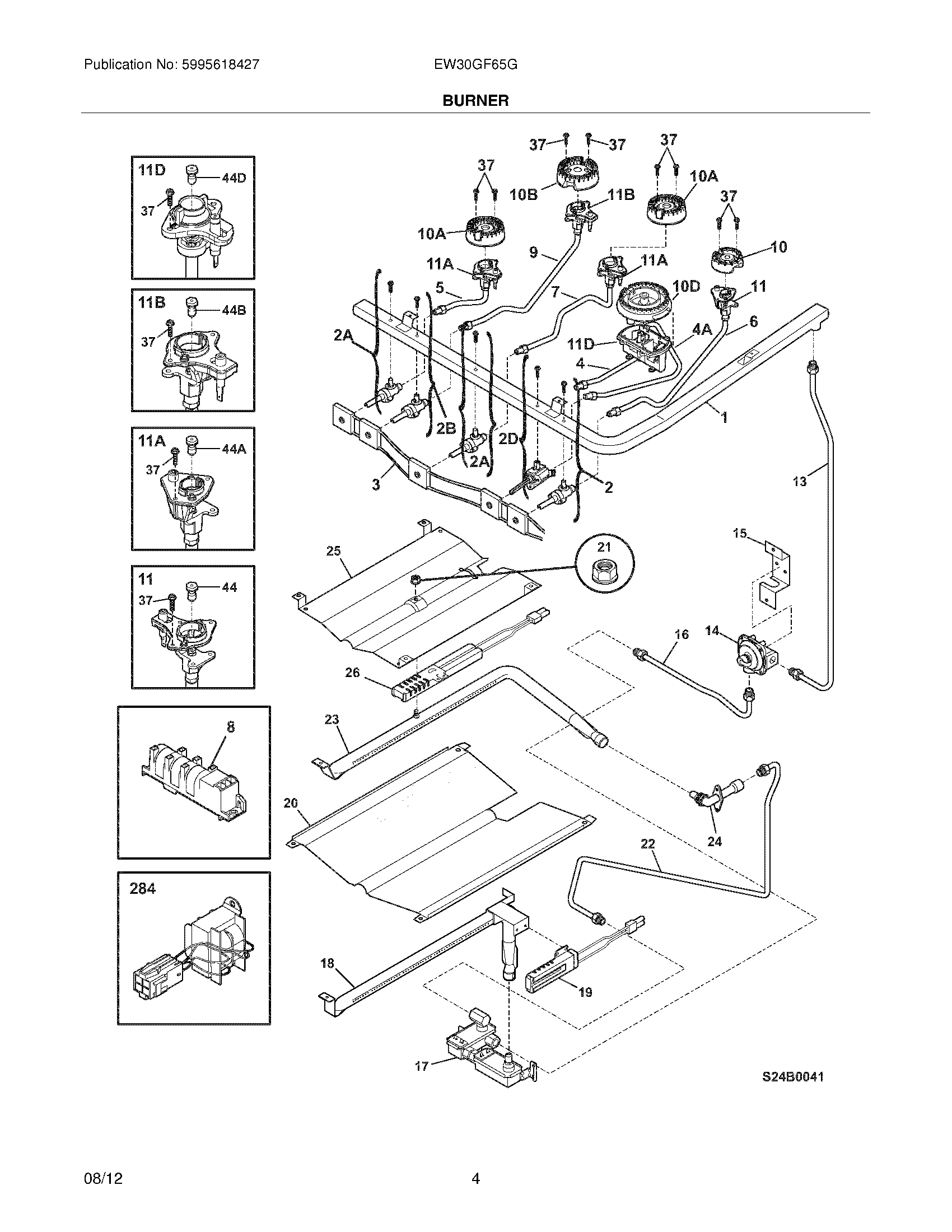

EW30GF65GBD 05 – BURNER

Products

Position	Product
NI	316215600 Frigidaire Oven Screw
NI	WCI 316064103
NI	WCI 316443200
NI	WCI 316434900
NI	WCI 316526900
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
NI	316021105 Frigidaire Oven Screw
1	WCI 316505200
2D	WCI 316574901
2B	WCI 316520703
2A	316520701 Frigidaire Oven Valve Assembly
2	WCI 316520700
3	316518201 Frigidaire Assembly Harness
4	WCI 316509000
4A	WCI 316509100
5	WCI 316509300
6	WCI 316509200
7	WCI 316509400
8	SPARK MODULE
9	WCI 316526600
10D	WCI 316525400
10B	316438600 Frigidaire Range Sealed Burner, 14K
10	316438200 Frigidaire Range Sealed Burner, 5K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
11B	316543204 Frigidaire Igniter/Orifice Assembly
11A	316540700 Frigidaire Igniter/Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
11D	WCI 316525100
13	WCI 316545700
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	316404304 Frigidaire Oven Burner
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	BAKE IGNITOR
37	316540900 Frigidaire Oven Screw
44	316527504 Frigidaire Oven Orifice
44D	WCI 316523508
44A	316527500 Frigidaire Oven Burner Orifice
44B	316527511 Frigidaire Oven Orifice
284	316536100 Frigidaire Transformer
