EW30GS6CGS2 09 – TOP/DRAWER – Aparts

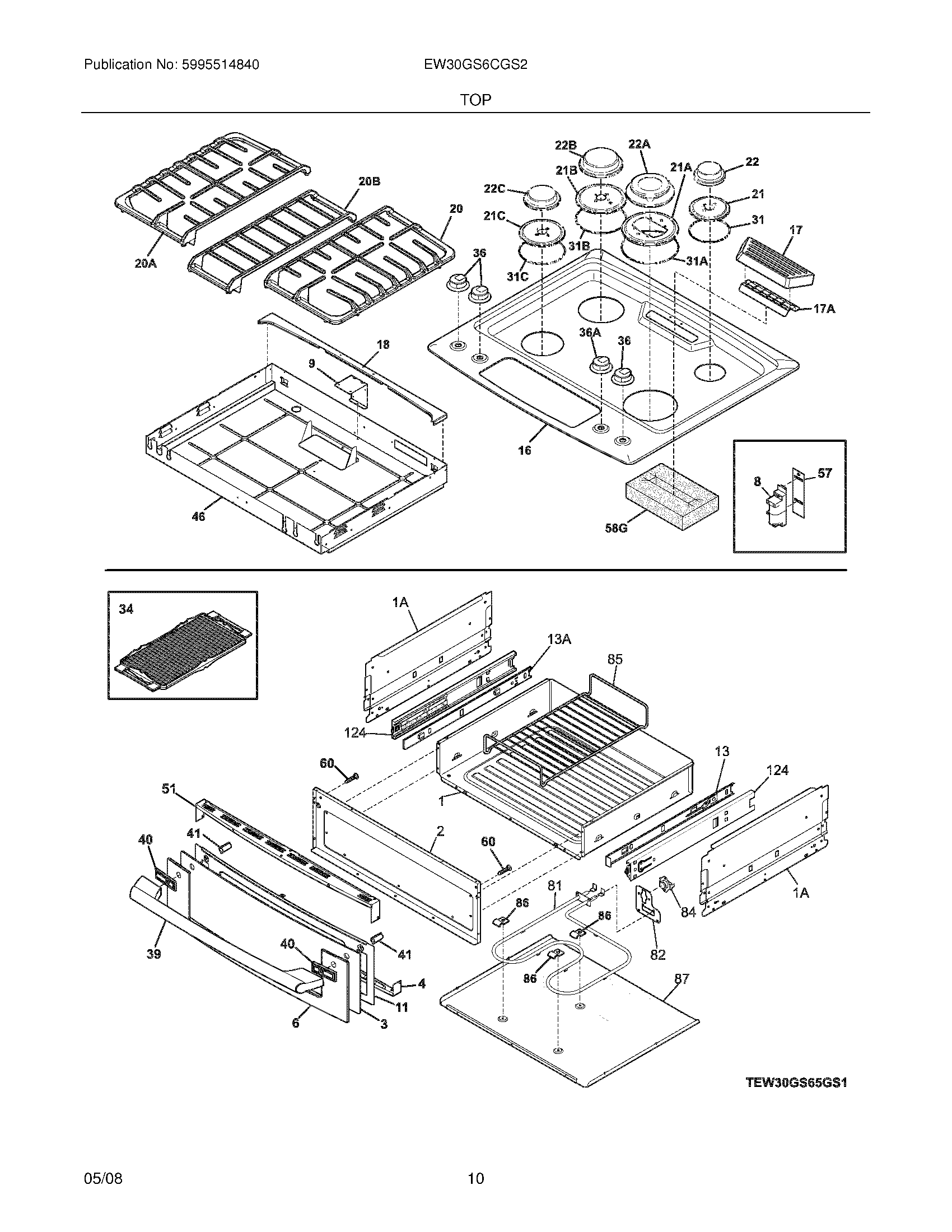

EW30GS6CGS2 09 – TOP/DRAWER

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	WCI 75304462582
NI	WCI 708008009
NI	5304500008 Frigidaire Oven Screw
NI	WCI 75304463977
NI	WCI 7318199748
NI	318531701 Frigidaire Spacer
NI	WCI 75304463974
NI	5303307980 Frigidaire Oven Screw
NI	134178901 Frigidaire Screw
NI	WCI 75303325171
NI	WCI 7318163602
NI	5303323139 Frigidaire Oven Screw
NI	5304453707 Frigidaire Oven Screw
NI	WCI 7318534401
1	WCI 7318304402
1A	318300003 Frigidaire Oven Panel
2	WCI 7318391201
3	WCI 7318904405
4	WCI 7318904903
6	WCI 7318377911
8	WCI 7316135701
9	WCI 7318905500
11	WCI 7318385701
13	318259507 Frigidaire Oven Glide
13A	318259506 Frigidaire Oven Glide
16	WCI 7318536526
17	WCI 7318905400
17A	WCI 7318907401
18	WCI 7318906900
20A	WCI 7318909201
20	318909206 Frigidaire Oven Grate
20B	WCI 7318909400
21A	Skirt,18K burner ,black
21B	Skirt,14K burner ,black ,(2)
21	WCI 7316514800
21C	WCI 7316514900
22C	WCI 7316511102
22A	WCI 7316511502
22	WCI 7316510902
22B	WCI 7316511302
31	WCI 7316515200
31B	Seal,14K burner ,(2)
31C	WCI 7316515201
31A	316515203 Frigidaire Oven Seal
34	5304495353 Frigidaire Oven Griddle
36A	318905205 Frigidaire Oven Knob
39	WCI 7241761004
40	WCI 7318902902
41	WCI 7318902600
46	WCI 7318900111
51	WCI 7318904701
57	318295611 Frigidaire Panel
58G	318594401 Frigidaire Insulation
60	WCI 75304441734
81	318255301 Frigidaire Oven Element
82	WCI 7318304501
84	318005108 Frigidaire Thermostat
85	WCI 7318345600
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
124	316105501 Frigidaire P-1 Glide
