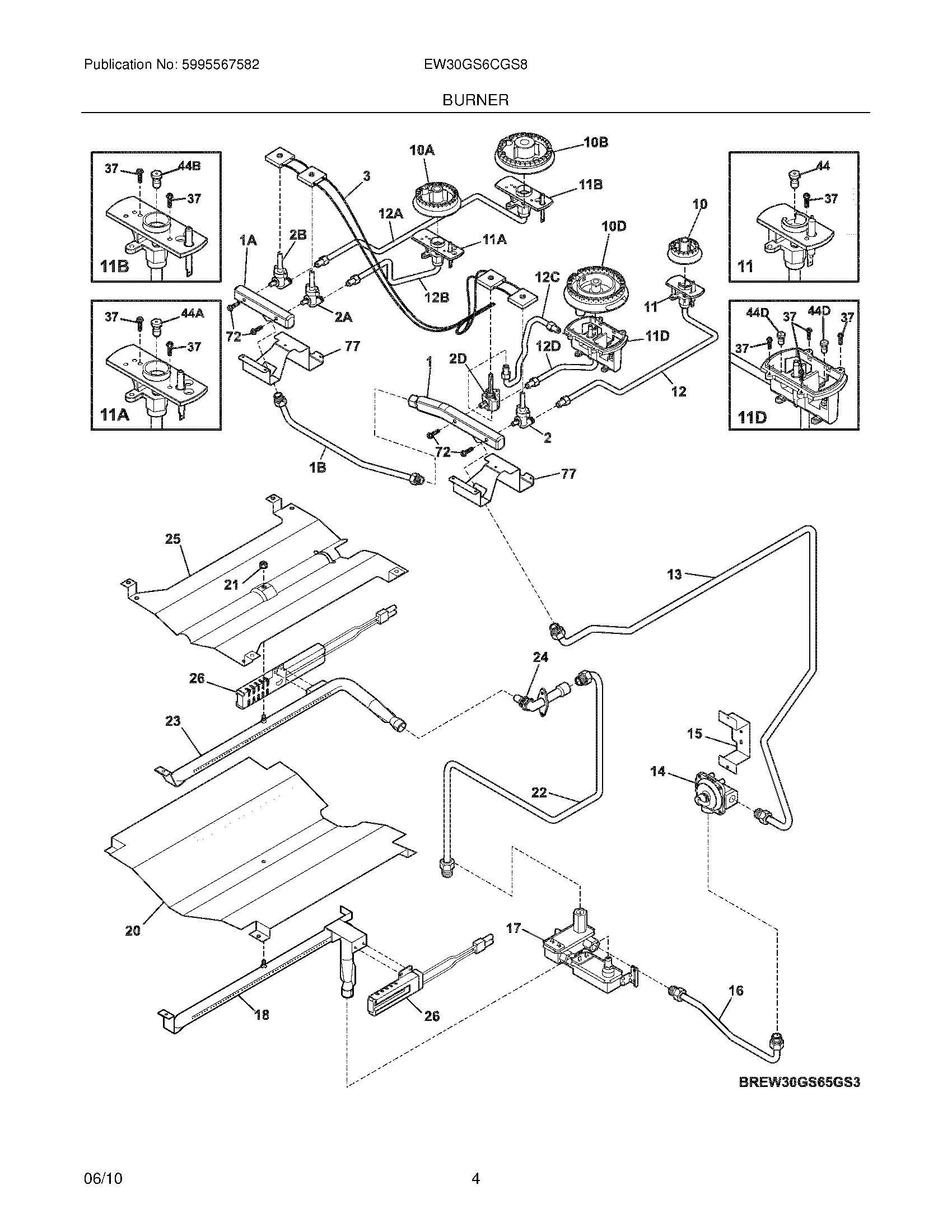

EW30GS6CGS8 05 – BURNER

Products

Position	Product
NI	5303323137 Frigidaire Oven Screw
NI	WCI 5304463705
NI	318268600 Frigidaire Oven Harness
NI	WCI 318199781
NI	WCI 318186922
NI	5304517816 Frigidaire Harness
NI	SCREW, 10 X 3/8
NI	5300803416 Frigidaire Dishwasher Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304480396 Frigidaire Screw
1A	WCI 318907200
1	WCI 318907000
1B	WCI 318902100
2A	318387401 Frigidaire Oven Valve
2B	318387402 Frigidaire Oven Valve
2	318387400 Frigidaire Oven Valve
2D	WCI 316574901
3	318232649 Frigidaire Wiring Harness
10A	WCI 316511000
10D	WCI 316525401
10B	316511200 Frigidaire Oven Burner
10	316510800 Frigidaire Oven Burner
11D	WCI 316525100
11A	WCI 316524900
11B	WCI 316525000
11	WCI 316524800
12	WCI 318901100
12D	WCI 318901900
12A	WCI 318901300
12B	WCI 318901500
12C	WCI 318901700
13	WCI 318902300
14	316091711 Frigidaire Regulator Assembly
15	318262810 Frigidaire Oven Bracket
16	WCI 318289500
17	316404901 Frigidaire Oven Valve
18	318292200 Frigidaire Oven Burner
20	WCI 318290400
21	5303013272 Frigidaire Oven Nut
22	318305203 Frigidaire Tube
23	WCI 318292300
24	WCI 316409703
25	WCI 316401301
26	5303935066 Frigidaire Oven Flat Igniter 17" Leads
37	316240600 Frigidaire Igniter Mounting Screw
44D	WCI 316523508
44A	WCI 316523500
44	WCI 316523504
44B	WCI 316523506
72	316215600 Frigidaire Oven Screw
77	WCI 318906711
