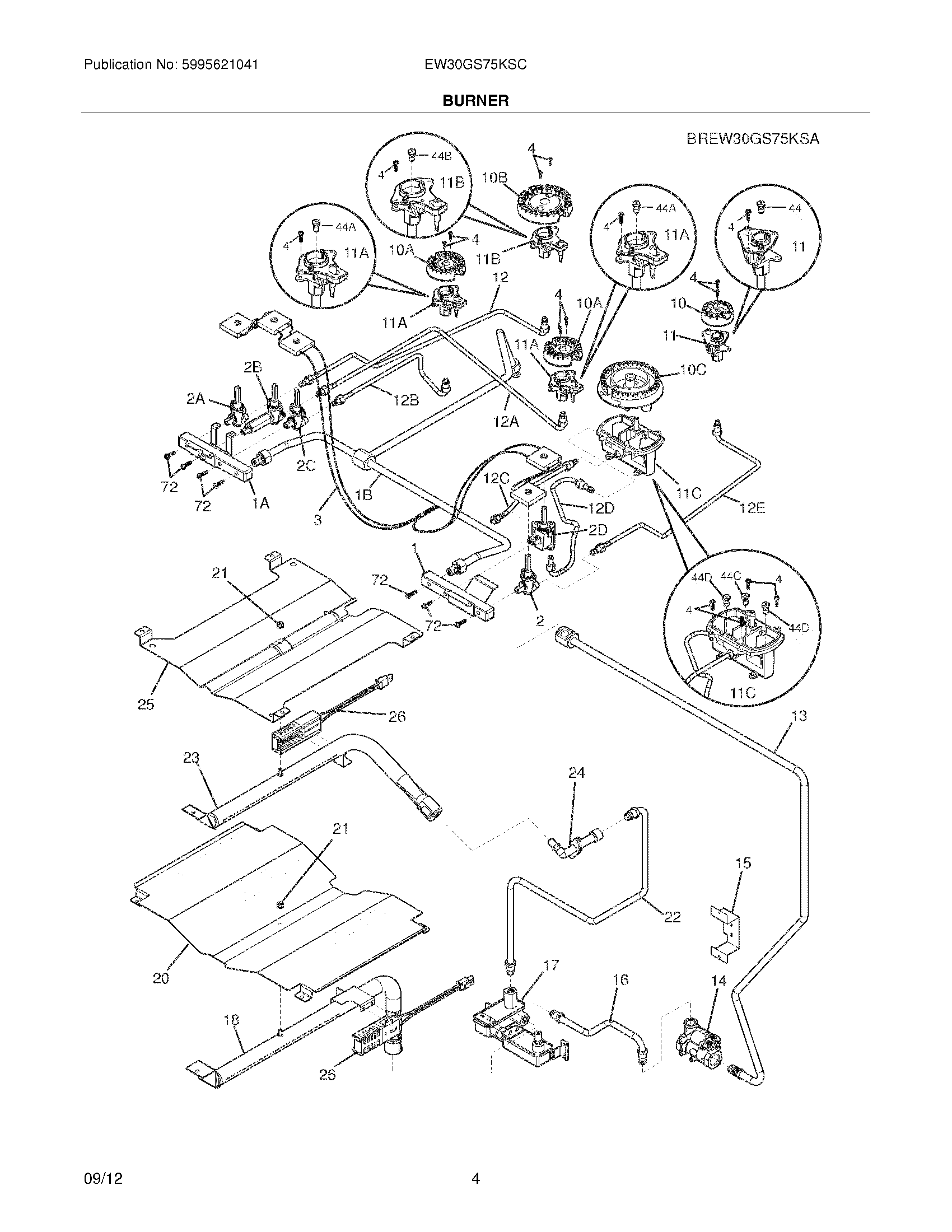

EW30GS75KSC 05 – BURNER

EW30GS75KSC 05 – BURNER

Written by

in

EW30GS75KSC 05 – BURNER

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	5303323137 Frigidaire Oven Screw
NI	5300803416 Frigidaire Dishwasher Screw
NI	318268600 Frigidaire Oven Harness
NI	318064866 Frigidaire Instruction Sheet
NI	5303211311 Frigidaire Refrigerator Screw
NI	318186932 Frigidaire Lp Conversion Kit
NI	WCI 5304463705
NI	318199795 Frigidaire Wiring Harness
1A	318941201 Frigidaire Oven Manifold
1	WCI 318941200
1B	318305412 Frigidaire Oven Tube
2C	318387402 Frigidaire Oven Valve
2B	WCI 318589200
2A	318387401 Frigidaire Oven Valve
2	318387400 Frigidaire Oven Valve
2D	WCI 316574901
3	WCI 318232671
4	316240600 Frigidaire Igniter Mounting Screw
10C	WCI 316525401
10	316438200 Frigidaire Range Sealed Burner, 5K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438400 Frigidaire Range Sealed Burner, 16/17K
11	316540800 Frigidaire Igniter/Orifice Assembly
11A	316540700 Frigidaire Igniter/Orifice Assembly
11C	WCI 316525103
11B	316543202 Frigidaire Igniter/Orifice Assembly
12C	WCI 318901900
12E	WCI 318901100
12	318901301 Frigidaire Tubing
12D	WCI 318901700
12B	318901502 Frigidaire Tubing
12A	WCI 318916807
13	WCI 318902301
14	316091711 Frigidaire Regulator Assembly
15	318262810 Frigidaire Oven Bracket
16	WCI 318289500
17	316404901 Frigidaire Oven Valve
18	318292200 Frigidaire Oven Burner
20	WCI 318290400
21	5303013272 Frigidaire Oven Nut
22	318305203 Frigidaire Tube
23	WCI 318292300
24	WCI 316409703
25	WCI 316401301
26	5303935066 Frigidaire Oven Flat Igniter 17" Leads
44	316527504 Frigidaire Oven Orifice
44A	316527500 Frigidaire Oven Burner Orifice
44C	WCI 316523509
44D	WCI 316523512
44B	316527508 Frigidaire Oven Orifice
72	316215600 Frigidaire Oven Screw
