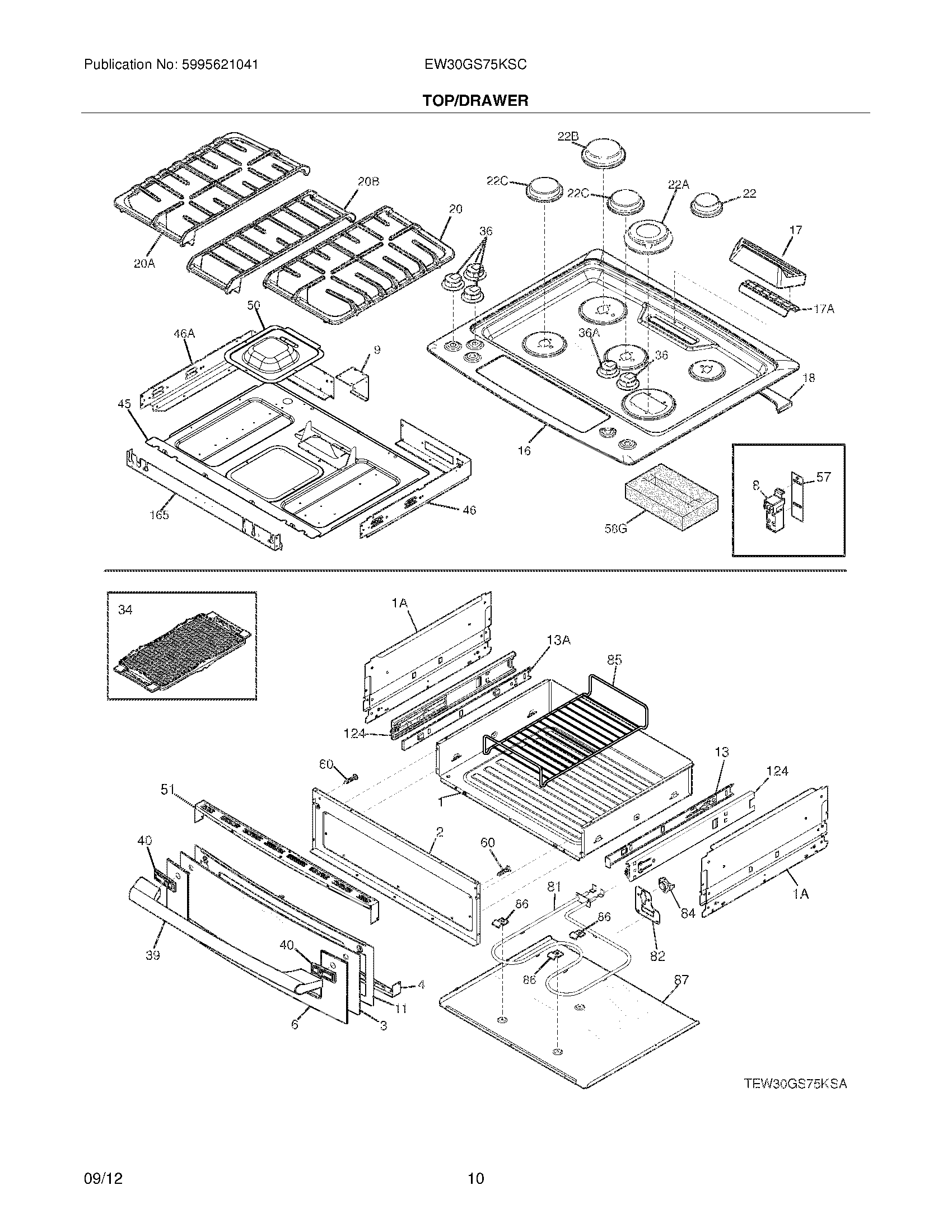

EW30GS75KSC 09 – TOP/DRAWER

EW30GS75KSC 09 – TOP/DRAWER

Written by

in

EW30GS75KSC 09 – TOP/DRAWER

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NIWCI 5304463977
NIWCI 5304463974
NI318534403 Frigidaire Oven Gasket
NI318403105 Frigidaire Oven Bracket
NIWCI 5304447556
NI134716700 Frigidaire Washer
NI5304517816 Frigidaire Harness
NIWCI 5304476599
NIScrew,No.8-18 x 3/8 ,(10)
NIWCI 318199748
NI5303288565 Frigidaire Screw
NI5303211311 Frigidaire Refrigerator Screw
NI5303307980 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318163602
1A318300003 Frigidaire Oven Panel
1DRAWER, BODY ASSEMBLY
2WCI 318391205
3WCI 318904405
4WCI 318904903
6WCI 318377915
85304508269 Frigidaire Oven Range Spark Module Kit
9WCI 318905500
11WCI 318385701
13AWCI 318259508
13WCI 318259509
16WCI 318536556
17WCI 318905410
17AWCI 318907401
18WCI 318906900
20BGrate,burner ,black ,center
20AWCI 318909207
20318909206 Frigidaire Oven Grate
22AWCI 316511502
22316548600 Frigidaire Oven Cap
22BWCI 316548900
22C316548700 Frigidaire Oven Cap
345304495353 Frigidaire Oven Griddle
36KNOB, TOP VALVE, BLACK, SINGLE, (4)
36AKNOB, TOP VALVE, BLACK, DUAL
39WCI 241881302
40WCI 318902902
45318578704 Frigidaire Panel Assembly
46WCI 318568200
46AWCI 318568201
50PANEL, SERVICE, FAN
51WCI 318904703
57318295611 Frigidaire Panel
58G318594401 Frigidaire Insulation
60WCI 5304477736
81318255301 Frigidaire Oven Element
82WCI 318304500
84318005108 Frigidaire Thermostat
86316095800 Frigidaire Oven Clip
87318300102 Frigidaire Oven Panel
124316105501 Frigidaire P-1 Glide
165WCI 318568301
