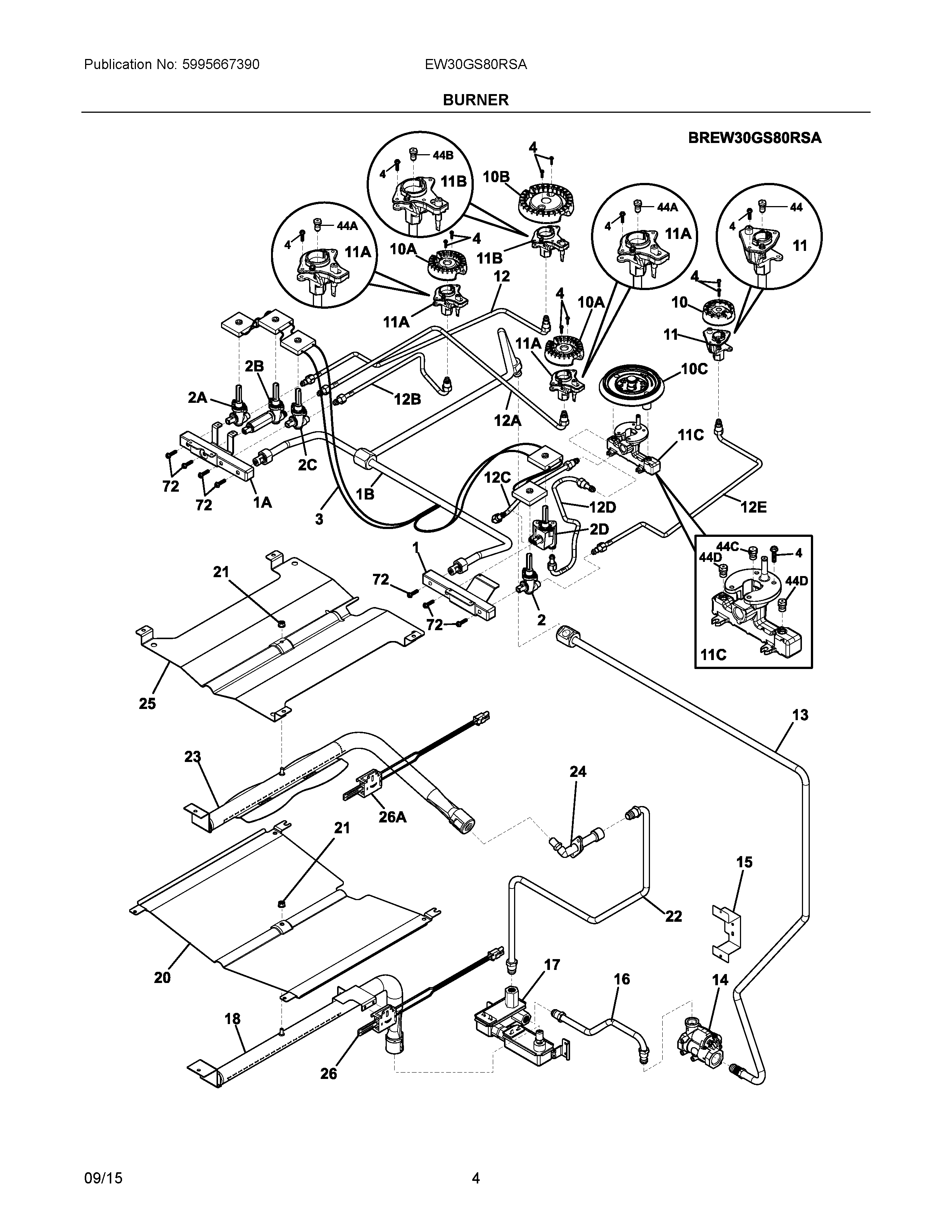

EW30GS80RSA 03 – BURNER

EW30GS80RSA 03 – BURNER

Written by

in

EW30GS80RSA 03 – BURNER

Products

PositionProduct
NI318199795 Frigidaire Wiring Harness
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIA316566901 Frigidaire Oven Sleeve
NI808041201 Frigidaire Oven Harness
NI316418901 Frigidaire Oven Screw
NICAWCI 5304503473
NI318186932 Frigidaire Lp Conversion Kit
1A318941201 Frigidaire Oven Manifold
1WCI 318941200
1B318305412 Frigidaire Oven Tube
2318387400 Frigidaire Oven Valve
2BWCI 318589200
2A318387401 Frigidaire Oven Valve
2D316412515 Frigidaire Oven Valve
2C318387402 Frigidaire Oven Valve
3WCI 318232671
4316540900 Frigidaire Oven Screw
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10C5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438400 Frigidaire Range Sealed Burner, 16/17K
11B316543202 Frigidaire Igniter/Orifice Assembly
11C316440105 Frigidaire Igniter Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
12CWCI 318901900
12DWCI 318901700
12318901301 Frigidaire Tubing
12B318901502 Frigidaire Tubing
12AWCI 318916807
12EWCI 318901100
13WCI 318902301
14316091711 Frigidaire Regulator Assembly
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26A139013701 Frigidaire Igniter
26139013700 Frigidaire Igniter
44A316527500 Frigidaire Oven Burner Orifice
44B316527508 Frigidaire Oven Orifice
44C316527520 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
44D316527502 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
