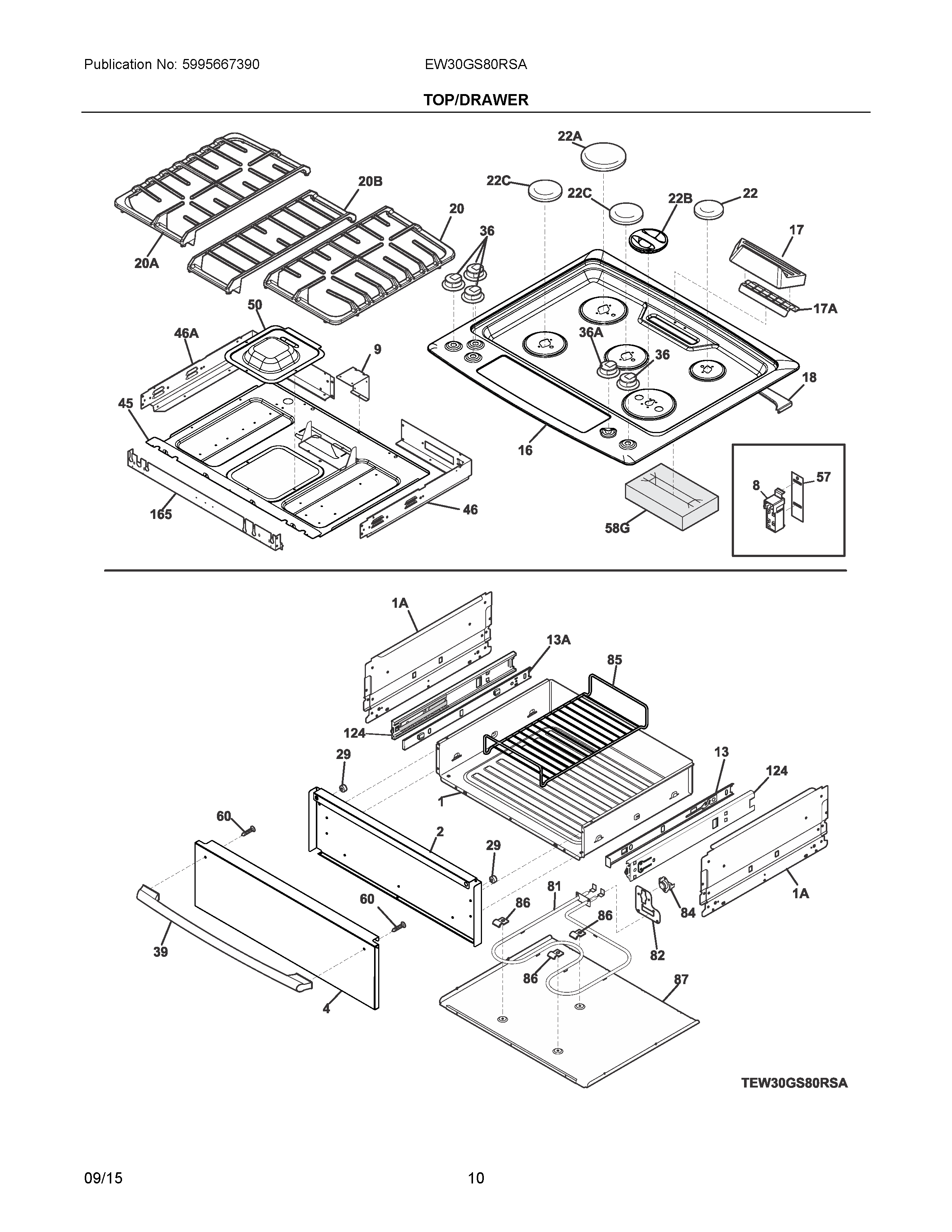

EW30GS80RSA 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	807527301 Frigidaire Harness
NIA	318534403 Frigidaire Oven Gasket
NI	5304501948 Frigidaire Screw
NI	316021109 Frigidaire Oven Screw
NI	WCI 318163602
1	DRAWER, BODY ASSEMBLY
1A	318300003 Frigidaire Oven Panel
2	WCI 5304503469
4	WCI 5304503470
8	5304508269 Frigidaire Oven Range Spark Module Kit
9	WCI 318905500
13A	WCI 318259508
13	WCI 318259509
16	WCI 318536560
17	WCI 318905403
17A	WCI 5304503475
18	WCI 318906900
20	318909206 Frigidaire Oven Grate
20B	Grate,burner ,black ,center
20A	WCI 318909207
22C	5304508442 Frigidaire Oven Surface Burner Cap
22	CAP
22B	5304499569 Frigidaire Cap
22A	5304508468 Frigidaire Oven Cap
29	318147430 Frigidaire Oven Bumper
36	KNOB, TOP VALVE, BLACK, SINGLE, (4)
36A	KNOB, TOP VALVE, BLACK, DUAL
39	316380802 Frigidaire Oven Handle
45	318578704 Frigidaire Panel Assembly
46A	WCI 318568201
46	WCI 318568200
50	PANEL, SERVICE, FAN
57	318295611 Frigidaire Panel
58G	318594401 Frigidaire Insulation
60	5304414648 Frigidaire Oven Screw
81	318255301 Frigidaire Oven Element
82	WCI 318304500
84	318005108 Frigidaire Thermostat
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
124	316105501 Frigidaire P-1 Glide
165	WCI 318568301
