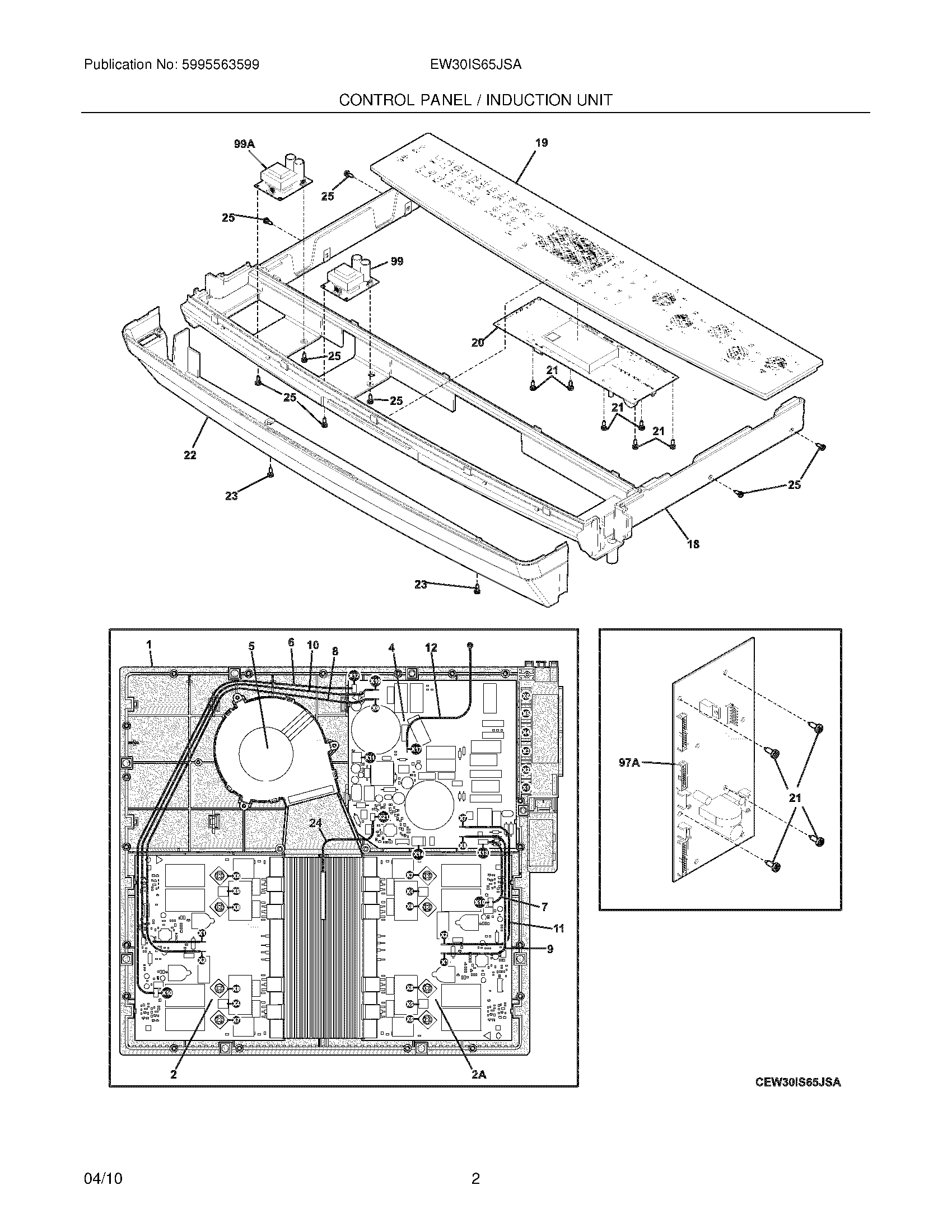

EW30IS65JSA 03 – CONTROL PANEL/INDUCTION UNIT

EW30IS65JSA 03 – CONTROL PANEL/INDUCTION UNIT

Written by

in

EW30IS65JSA 03 – CONTROL PANEL/INDUCTION UNIT

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NIClamp,power cord
NIWCI 318341200
NIWCI 318384488
NIWCI 318402340
NIWCI 318402354
NIWCI 318402397
NI5303307980 Frigidaire Oven Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
NI5303211311 Frigidaire Refrigerator Screw
NI5303324184 Frigidaire Wall Oven Range Screw
NI5304480396 Frigidaire Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304453707 Frigidaire Oven Screw
1318329602 Frigidaire Oven Housing Assembly
2318347101 Frigidaire Oven Generator
2A318347102 Frigidaire Oven Generator
4318347000 Frigidaire Filter
5Cooling Fan Assembly,large
6Communication Cable,generator ,18“ ,to filter,X10/X12
7Communication Cable,generator ,6“ ,to filter,X10/X13
8WCI 318052581
9WCI 318052580
10WCI 318052582
11WCI 318052579
12WCI 318532141
18WCI 318900302
19WCI 318387122
20316576610 Frigidaire Electrical Control
21316524400 Frigidaire Oven Screw
22318905005 Frigidaire Oven Panel
23SCREW <8-18 X 3/4>
25Screw,No.8-18 x 3/8 ,(10)
97A316576452 Frigidaire Oven Board
99A316435703 Frigidaire Oven Board
99316535200 Frigidaire Oven Control Board
