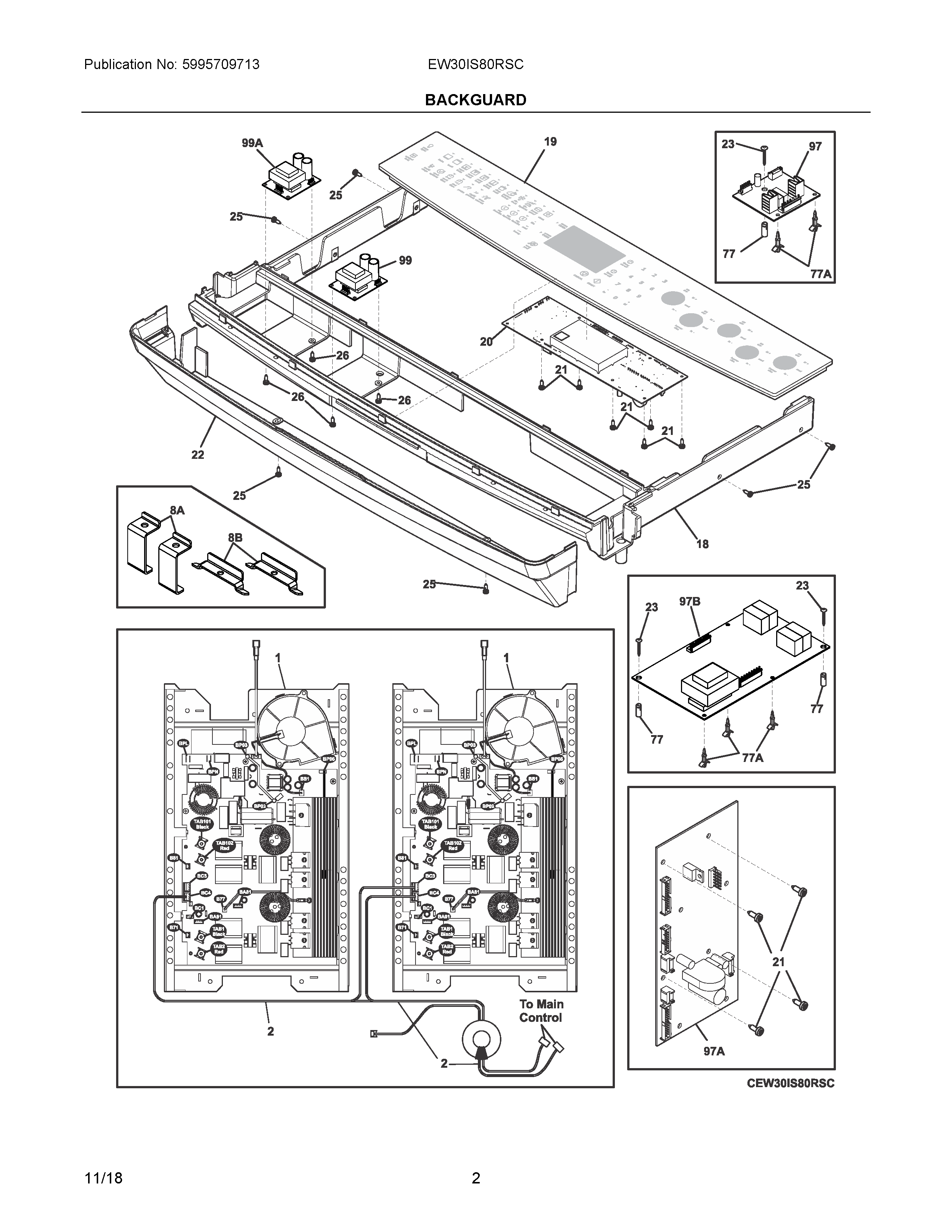

EW30IS80RSC 02 – BACKGUARD

EW30IS80RSC 02 – BACKGUARD

Written by

in

EW30IS80RSC 02 – BACKGUARD

Products

PositionProduct
NIAWCI 318534402
NI5304453707 Frigidaire Oven Screw
NINUT, KEPS, 8-32, (2)
NIHARNESS, WIRING, COMMUNICATION
NI5304517820 Frigidaire Harness
NI5304520761 Frigidaire Harness
1903160-9010 Frigidaire Generator and Harness
25304517795 Frigidaire Oven Harness
8A318403105 Frigidaire Oven Bracket
8BWCI 318403202
18SUBFRAME, CONTROL
19WCI 318387122
20316576687 Frigidaire Controller
21316524400 Frigidaire Oven Screw
22318905005 Frigidaire Oven Panel
235303289910 Frigidaire Oven Screw
25316021105 Frigidaire Oven Screw
26Screw,cup pt ,8-18 x 0.375 ,chrome
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
97A316201101 Frigidaire Oven Board
97B316443916 Frigidaire Oven Range Relay Board
97316519200 Frigidaire Oven Control Board
99316535201 Frigidaire Oven Board
99A316435703 Frigidaire Oven Board
