EW30MC65PSE 03 – MICROWAVE

EW30MC65PSE 03 – MICROWAVE

Written by

in

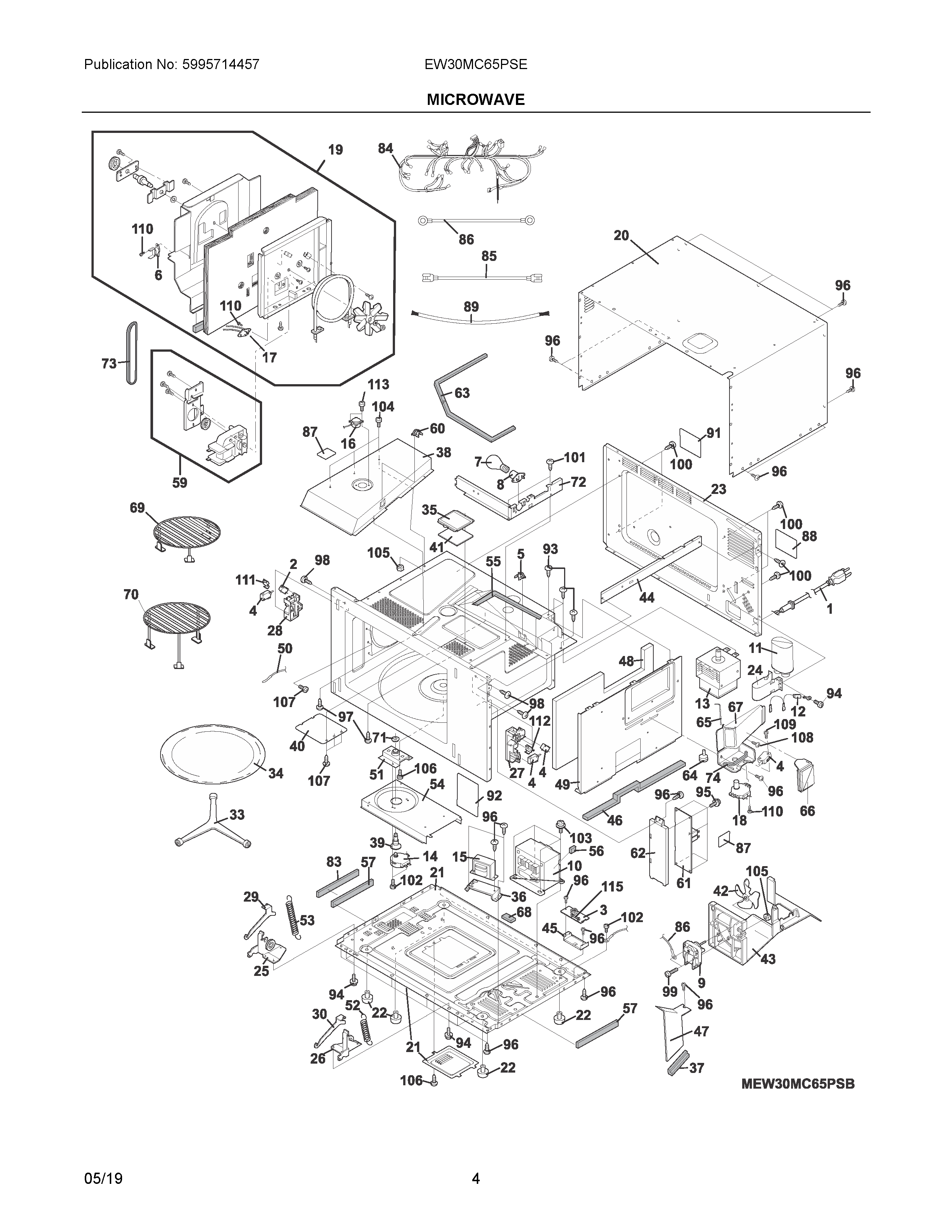

EW30MC65PSE 03 – MICROWAVE

Products

PositionProduct
15304470537 Frigidaire Microwave Power Cord
25304503483 Frigidaire Microwave Switch
35304498734 Frigidaire Microwave Filter
45304493153 Frigidaire Microwave Door Switch
55304480634 Frigidaire Microwave Fuse
65304503729 Frigidaire Thermal Cut-Out
75304464198 Frigidaire Microwave Lamp
85304463785 Frigidaire Microwave LampHolder
95304461119 Frigidaire Microwave Motor
105304470538 Frigidaire Microwave Transformer
115304470539 Frigidaire Microwave Capacitor
125304531883 Frigidaire Microwave Rectifier Assembly
135304501808 Frigidaire Microwave Magnetron
145304498736 Frigidaire Turntable Motor
155304470541 Frigidaire Microwave Transformer
165304513871 Frigidaire Sensor Assembly
175304518629 Frigidaire Thermistor
185304485889 Frigidaire MOTOR
195304503730 Frigidaire Convection Fan Assembly
205304470542 Frigidaire Cabinet Assembly
215304470734 Frigidaire Base
22WCI 5304461127
23PANEL, CABINET BACK
245304498739 Frigidaire Holder
255304480638 Frigidaire Microwave Hinge Assembly
265304480639 Frigidaire Microwave Hinge
275304470547 Frigidaire Microwave Hook Latch
285304470548 Frigidaire Microwave Hook Latch
295304480640 Frigidaire Microwave Cam
305304480641 Frigidaire Microwave Cam Assembly
335304501830 Frigidaire Microwave Support
345304518632 Frigidaire Microwave Tray
355304461155 Frigidaire Frame
365304470564 Frigidaire Bracket
37WCI 5304461157
38WCI 5304461158
395304480644 Frigidaire Microwave Coupling
405304461165 Frigidaire Microwave Cover
415304461167 Frigidaire Microwave Lens
425304461173 Frigidaire Microwave Blade
43WCI 5304461174
445304461175 Frigidaire Support
45WCI 5304461178
46WCI 5304461156
47WCI 5304461181
48WCI 5304461182
495304461183 Frigidaire COVER
505304513872 Frigidaire Wiring Harness
515304451459 Frigidaire Microwave Bracket
525304503731 Frigidaire Oven Spring Assembly
535304503732 Frigidaire Oven Spring Assembly
54WCI 5304470576
55WCI 5304483931
56WCI 5304461180
57WCI 5304483932
59WCI 5304494061
605304461114 Frigidaire Microwave Cut-Out Thermal
615304513875 Frigidaire Microwave Control Board
625304470735 Frigidaire Holder
63WCI 5304482055
645304461159 Frigidaire Cam
655304461160 Frigidaire SHAFT
665304461161 Frigidaire Microwave Door Assembly
675304461162 Frigidaire Duct
68WCI 5304461163
695304498741 Frigidaire Rack Assembly
705304498742 Frigidaire Rack Assembly
715304451470 Frigidaire Microwave PACKING
72WCI 5304480654
735304461177 Frigidaire Microwave Belt
745304461179 Frigidaire Cushion
83WCI 5304480655
845304513873 Frigidaire Harness
855304440331 Frigidaire Microwave Wire
865304461199 Frigidaire Microwave Wire
87WCI 5304483935
885304465314 Frigidaire Label
895304513874 Frigidaire Harness
905304451534 Frigidaire LABEL
915304440333 Frigidaire Label
92WCI 5304504050
93WCI 5303319636
945304451550 Frigidaire Screw
955304502863 Frigidaire Microwave Screw
965304451553 Frigidaire Microwave Screw
975304461203 Frigidaire Screw
985303319641 Frigidaire Screw
995304461209 Frigidaire Screw
1005304470587 Frigidaire Screw
1015304461215 Frigidaire Screw
1025304470588 Frigidaire Screw
103WCI 5304461221
104WCI 5304451548
105WCI 5
