EW30SO60QSB 02 – OVEN, CABINET

EW30SO60QSB 02 – OVEN, CABINET

Written by

in

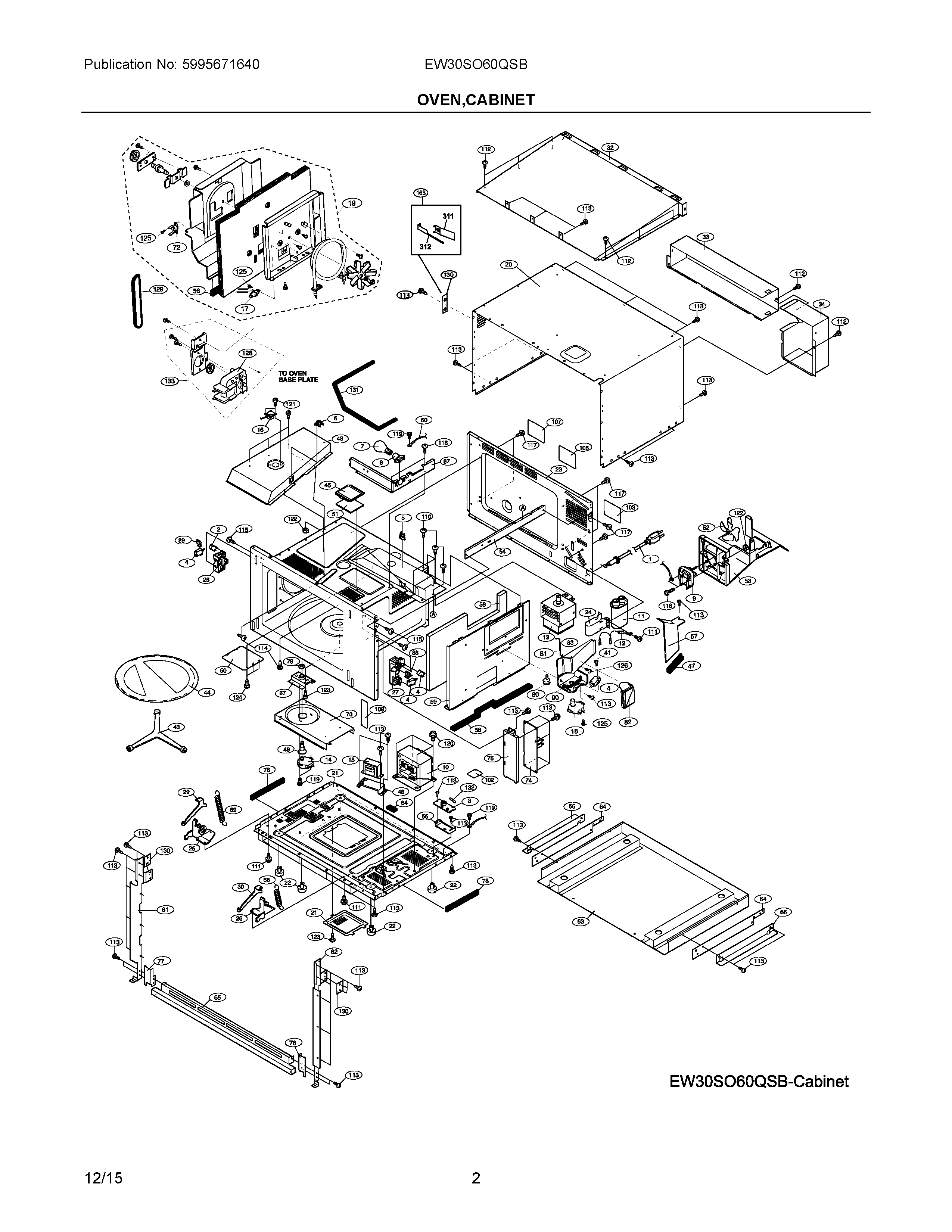

EW30SO60QSB 02 – OVEN, CABINET

Products

PositionProduct
15304470537 Frigidaire Microwave Power Cord
25304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
35304498734 Frigidaire Microwave Filter
45304493153 Frigidaire Microwave Door Switch
55304480634 Frigidaire Microwave Fuse
65304461114 Frigidaire Microwave Cut-Out Thermal
75304464198 Frigidaire Microwave Lamp
85304463785 Frigidaire Microwave LampHolder
95304461119 Frigidaire Microwave Motor
105304470538 Frigidaire Microwave Transformer
115304470539 Frigidaire Microwave Capacitor
125304531883 Frigidaire Microwave Rectifier Assembly
135304501808 Frigidaire Microwave Magnetron
145304498736 Frigidaire Turntable Motor
155304470541 Frigidaire Microwave Transformer
165304461125 Frigidaire Microwave Sensor Assembly
175304483929 Frigidaire Thermistor Assembly
185304485889 Frigidaire MOTOR
195304503730 Frigidaire Convection Fan Assembly
205304470542 Frigidaire Cabinet Assembly
215304470734 Frigidaire Base
22WCI 5304461127
23PANEL, CABINET BACK
245304498739 Frigidaire Holder
255304480638 Frigidaire Microwave Hinge Assembly
265304480639 Frigidaire Microwave Hinge
275304470547 Frigidaire Microwave Hook Latch
285304470548 Frigidaire Microwave Hook Latch
295304480640 Frigidaire Microwave Cam
305304480641 Frigidaire Microwave Cam Assembly
32WCI 5304501829
33DUCT, B
34DUCT, C
415304461208 Frigidaire Screw
435304501830 Frigidaire Microwave Support
445304498731 Frigidaire Microwave Tray
455304461155 Frigidaire Frame
465304470564 Frigidaire Bracket
47WCI 5304461157
48WCI 5304461158
495304480644 Frigidaire Microwave Coupling
505304461165 Frigidaire Microwave Cover
515304461167 Frigidaire Microwave Lens
525304461173 Frigidaire Microwave Blade
53WCI 5304461174
545304461175 Frigidaire Support
55WCI 5304461178
56WCI 5304461156
57WCI 5304461181
58WCI 5304461182
595304461183 Frigidaire COVER
605304461196 Frigidaire Wiring Harness
61TRIM, LEFT SIDE
62TRIM, RIGHT SIDE
63WCI 5304504302
64WCI 5304501832
65WCI 5304475717
66WCI 5304501833
675304451459 Frigidaire Microwave Bracket
685304503731 Frigidaire Oven Spring Assembly
695304503732 Frigidaire Oven Spring Assembly
70WCI 5304470576
725304503729 Frigidaire Thermal Cut-Out
74POWER BOARD, PRINTED CIRCUIT
755304470735 Frigidaire Holder
76WCI 5304470594
77WCI 5304470593
78WCI 5304480655
795304451470 Frigidaire Microwave PACKING
805304461159 Frigidaire Cam
815304461160 Frigidaire SHAFT
825304461161 Frigidaire Microwave Door Assembly
835304461162 Frigidaire Duct
84WCI 5304461163
87WCI 5304480654
885304470592 Frigidaire Microwave Lever
895304470591 Frigidaire Microwave Lever
905304461179 Frigidaire Cushion
1025304440334 Frigidaire Microwave Label
1035304465314 Frigidaire Label
106WCI 5304470585
1075304440333 Frigidaire Label
109WCI 5304498744
110WCI 5303319636
1115304451550 Frigidaire Screw
1125304502863 Frigidaire Microwave Screw
1135304451553 Frigidaire Microwave Screw
1145304461203 Frigidaire Screw
1155303319641 Frigidaire Screw
1165304461209 Frigidaire Screw
1175304470587 Frigidaire Screw
1185304461215 Frigidaire Screw
1195304470588 Frigidaire Screw
120WCI 5
