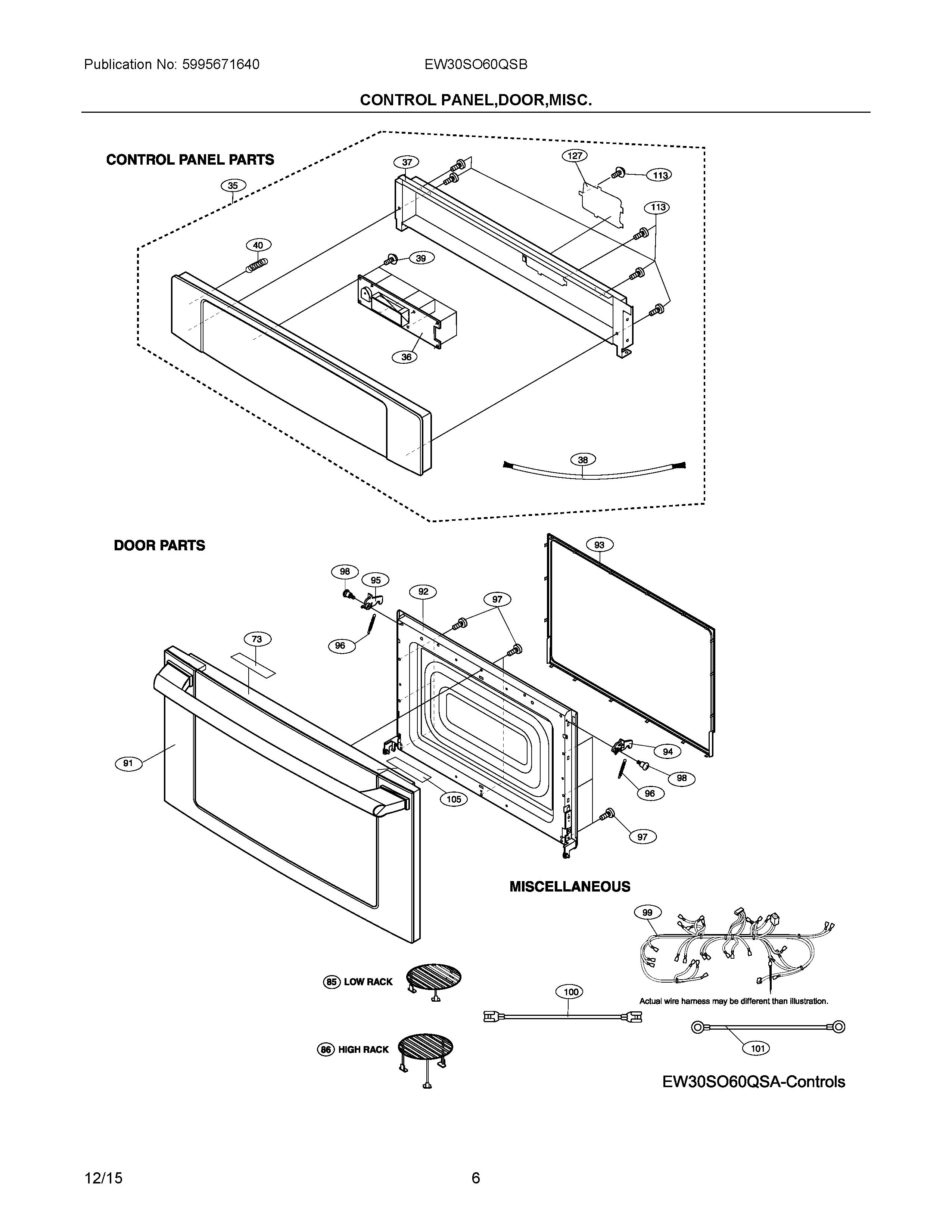

EW30SO60QSB 03 – CONTROL PANEL, DOOR, MISC

EW30SO60QSB 03 – CONTROL PANEL, DOOR, MISC

Written by

in

EW30SO60QSB 03 – CONTROL PANEL, DOOR, MISC

Products

PositionProduct
355304504301 Frigidaire Microwave Touch Control Assembly
365304470557 Frigidaire Microwave Display Board
37BRACKET, CONTROL MOUNT
38WCI 5304470561
39WCI 5304458568
40SPRING, GROUNDING
735304440346 Frigidaire LABEL
855304498741 Frigidaire Rack Assembly
865304498742 Frigidaire Rack Assembly
91FRAME, OUTER DOOR, WITH HANDLE
925304471512 Frigidaire Microwave Panel
935304470579 Frigidaire Microwave Frame
945304491054 Frigidaire Microwave Latch Head
955304490142 Frigidaire Microwave Latch
965304501834 Frigidaire Microwave Spring
975304451561 Frigidaire Microwave Screw
985304470583 Frigidaire Microwave Screw
995304480652 Frigidaire Microwave Harness
1005304440331 Frigidaire Microwave Wire
1015304461199 Frigidaire Microwave Wire
1055304451534 Frigidaire LABEL
1135304451553 Frigidaire Microwave Screw
127PLATE, CONTROL PANEL, REAR COVER
