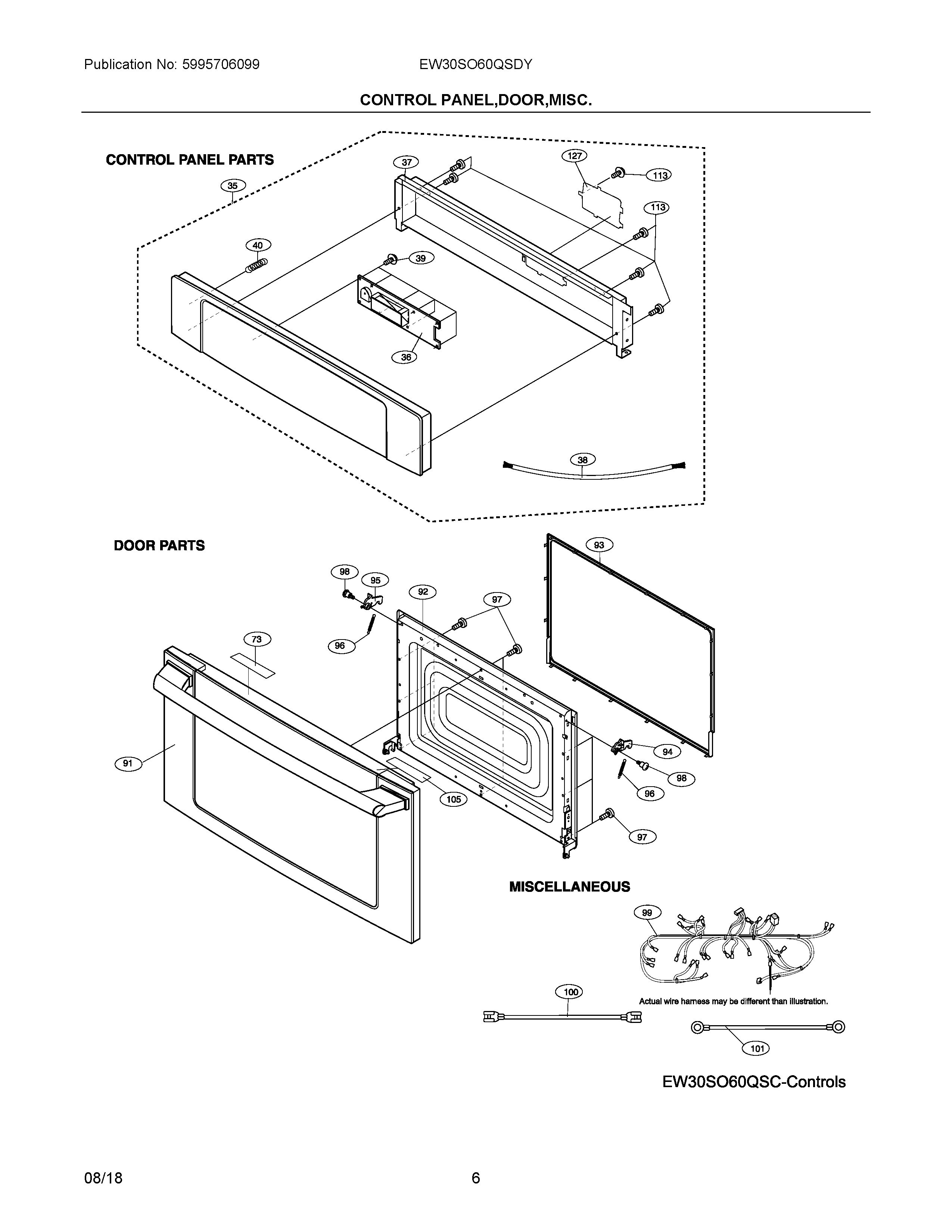

EW30SO60QSDY 03 – CONTROL PANEL,DOOR,MISC.

EW30SO60QSDY 03 – CONTROL PANEL,DOOR,MISC.

Written by

in

EW30SO60QSDY 03 – CONTROL PANEL,DOOR,MISC.

Products

PositionProduct
355304518630 Frigidaire Microwave Touch Control Assembly
365304513290 Frigidaire Microwave Display Board
37BRACKET, CONTROL MOUNT
38WIRING HARNESS, POWER SUPPLY
39WCI 5304458568
40SPRING, GROUNDING
735304440346 Frigidaire LABEL
91FRAME, OUTER DOOR, WITH HANDLE
925304471512 Frigidaire Microwave Panel
935304470579 Frigidaire Microwave Frame
945304491054 Frigidaire Microwave Latch Head
955304490142 Frigidaire Microwave Latch
965304501834 Frigidaire Microwave Spring
975304451561 Frigidaire Microwave Screw
985304470583 Frigidaire Microwave Screw
99WIRING HARNESS, MAIN
1005304440331 Frigidaire Microwave Wire
1015304461199 Frigidaire Microwave Wire
1055304451534 Frigidaire LABEL
1135304451553 Frigidaire Microwave Screw
127PLATE, CONTROL PANEL, REAR COVER
