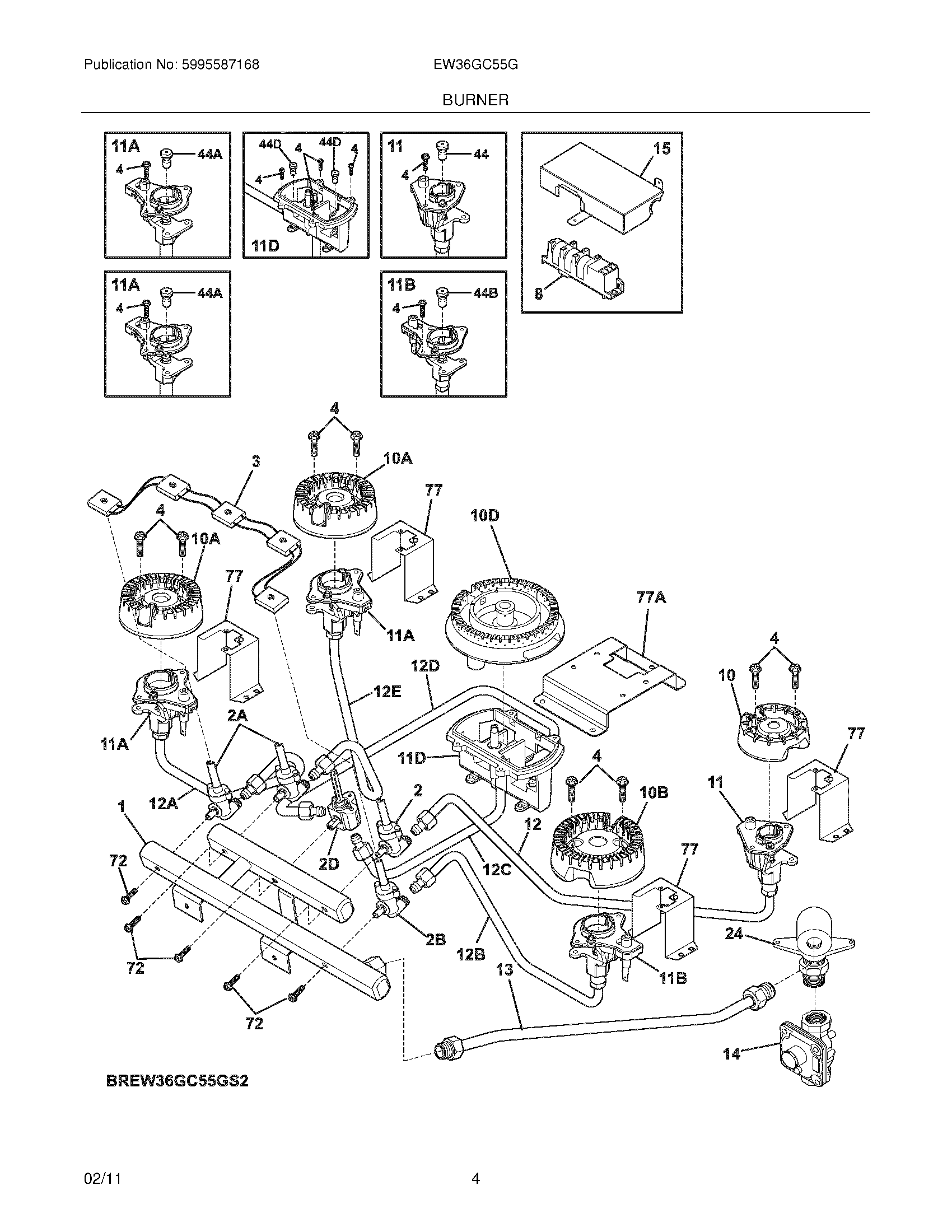

EW36GC55GW2 05 – BURNER

EW36GC55GW2 05 – BURNER

Written by

in

EW36GC55GW2 05 – BURNER

Products

PositionProduct
NIDEFLECTOR, QUICK CONNECT
NI5303323140 Frigidaire Oven Screw
NIWCI 318199780
NI5303211311 Frigidaire Refrigerator Screw
NI5303311174 Frigidaire Oven Screw
NIWCI 318127446
NI5304480396 Frigidaire Screw
NI5303323137 Frigidaire Oven Screw
1WCI 318379210
2318387400 Frigidaire Oven Valve
2B318387402 Frigidaire Oven Valve
2A318387401 Frigidaire Oven Valve
2DWCI 316574901
3318232621 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10DWCI 316525401
10B316438600 Frigidaire Range Sealed Burner, 14K
11A316540700 Frigidaire Igniter/Orifice Assembly
11DWCI 316525103
11316540800 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
12DTUBING, TOP BURNER, 18K, CENTER
12ATUBING, TOP BURNER, 9.5K, LEFT FRONT
12ETUBING, TOP BURNER, 9.5K, LEFT REAR
12TUBING, TOP BURNER, 5K, RIGHT REAR
12BTUBING, TOP BURNER, 14K, RIGHT FRONT
12CTUBING, TOP BURNER, 18K, CENTER
13PIPE, MANIFOLD INLET
14WCI 318122706
15DEFLECTOR, SPARK MODULE
24318054010 Frigidaire Oven Elbow
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
44B316527511 Frigidaire Oven Orifice
44DWCI 316523512
72316215600 Frigidaire Oven Screw
77AWCI 318384104
77WCI 318920303
