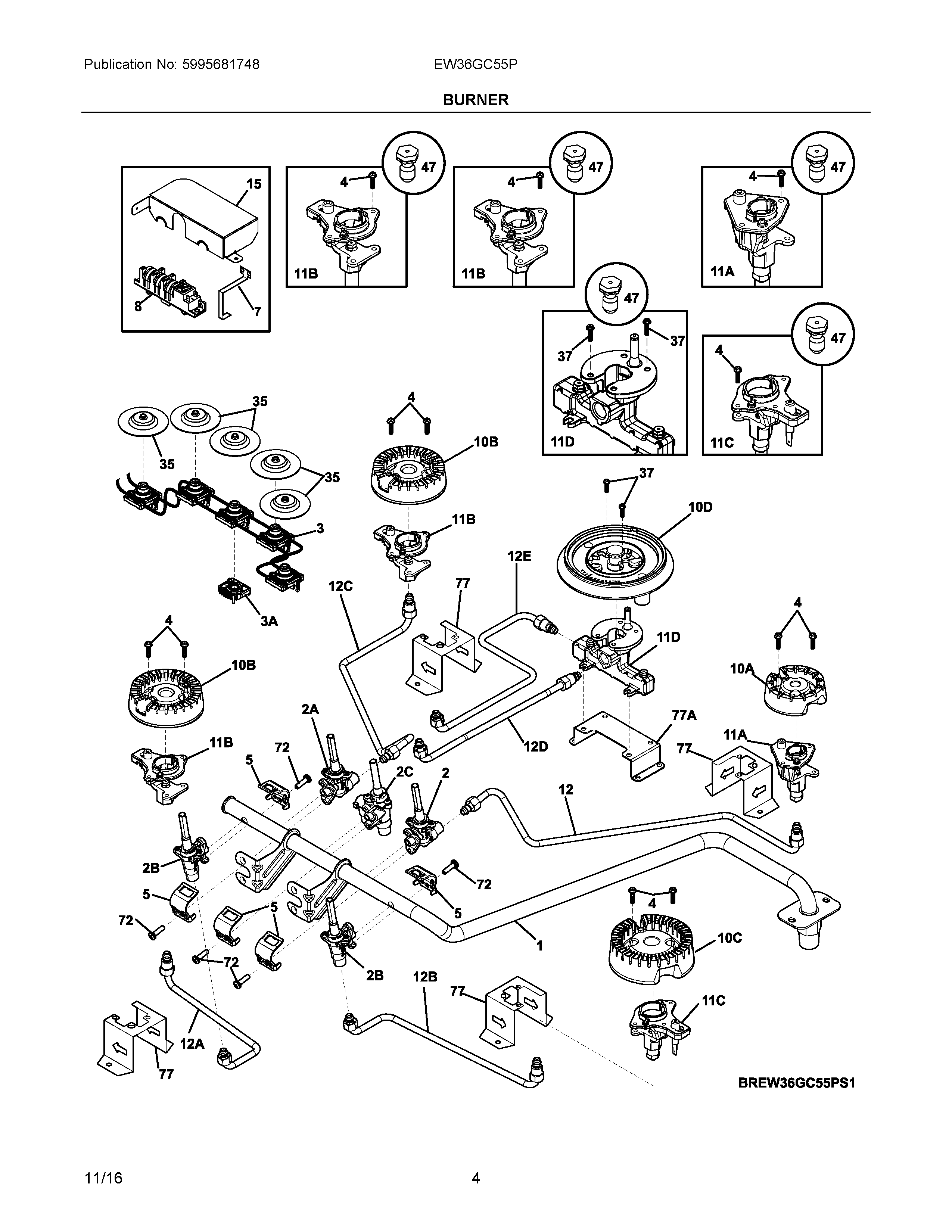

EW36GC55PB1 03 – BURNER

EW36GC55PB1 03 – BURNER

Written by

in

EW36GC55PB1 03 – BURNER

Products

PositionProduct
NIA803910601 Frigidaire Screw
NIDA316566901 Frigidaire Oven Sleeve
NIAWCI 318199780
NI305338702 Frigidaire Screw
NIB305452800 Frigidaire Screw
NI305338602 Frigidaire Screw
1WCI 5304508588
2CWCI 5304508579
25304508471 Frigidaire Oven Valve
2A5304508472 Frigidaire Oven Valve
2B5304508464 Frigidaire Oven Valve
35304527828 Frigidaire Switch Assembly
3A5304508439 Frigidaire Oven Adapter Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
7WCI 318024209
8SPARK MODULE
10A316438200 Frigidaire Range Sealed Burner, 5K
10D5304501023 Frigidaire Burner Assembly
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11D5304529110 Frigidaire Igniter/Orifice Assembly
11A5304498786 Frigidaire Igniter/Orifice Assembly
11C5304500255 Frigidaire Igniter/Orifice Assembly
11B5304498787 Frigidaire Igniter Assembly/Orifice
12CTUBING, TOP BURNER, LH REAR
12TUBING, TOP BURNER, RH REAR
12A305595700 Frigidaire Tubing
12D5304527979 Frigidaire Tube
12ETUBE, DUAL BURNER, MAIN
12BTUBING, TOP BURNER, RH FRONT
145304519943 Frigidaire Regulator
15SHIELD, HEAT
355304508440 Frigidaire Bushing
37305309701 Frigidaire Oven Screw
47LP KIT, GAS CONVERSION
725304508436 Frigidaire Oven Screw
77AWCI 305583001
77WCI 318920309
