EW36GC55PS0 03 – BURNER

EW36GC55PS0 03 – BURNER

Written by

in

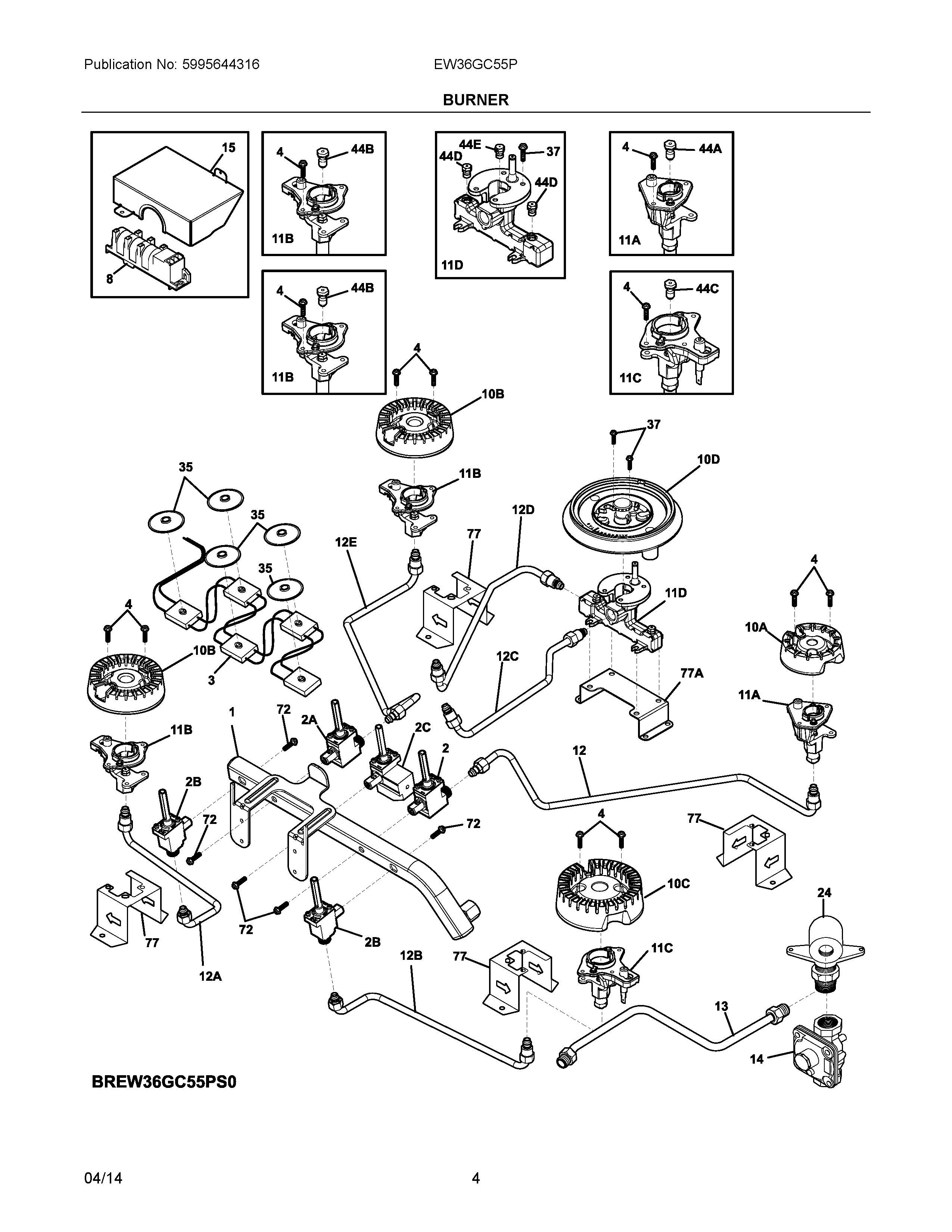

EW36GC55PS0 03 – BURNER

Products

PositionProduct
NI5303211311 Frigidaire Refrigerator Screw
NIDA316566901 Frigidaire Oven Sleeve
NIA803910601 Frigidaire Screw
NIAWCI 318199780
NIC305452800 Frigidaire Screw
NIB305338601 Frigidaire Screw
NI305338602 Frigidaire Screw
NI305338702 Frigidaire Screw
NIDEFLECTOR, QUICK CONNECT
NIWCI 808695306
1WCI 305595300
2WCI 316271312
2AWCI 316271310
2CWCI 316272300
2B316560902 Frigidaire Oven Valve
3WCI 305595103
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10C316438600 Frigidaire Range Sealed Burner, 14K
10A316438200 Frigidaire Range Sealed Burner, 5K
10D5304519952 Frigidaire Burner Assembly
11D316440105 Frigidaire Igniter Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
11C316543204 Frigidaire Igniter/Orifice Assembly
12TUBING, TOP BURNER, RH REAR
12ETUBING, TOP BURNER, LH REAR
12BTUBING, TOP BURNER, RH FRONT
12A305595700 Frigidaire Tubing
12DWCI 809112501
12CWCI 809112401
13WCI 305596100
14WCI 318122706
15WCI 318024209
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
37305309701 Frigidaire Oven Screw
44C316527511 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
44E316527520 Frigidaire Oven Orifice
44D316527502 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77AWCI 305583001
77WCI 318920309
