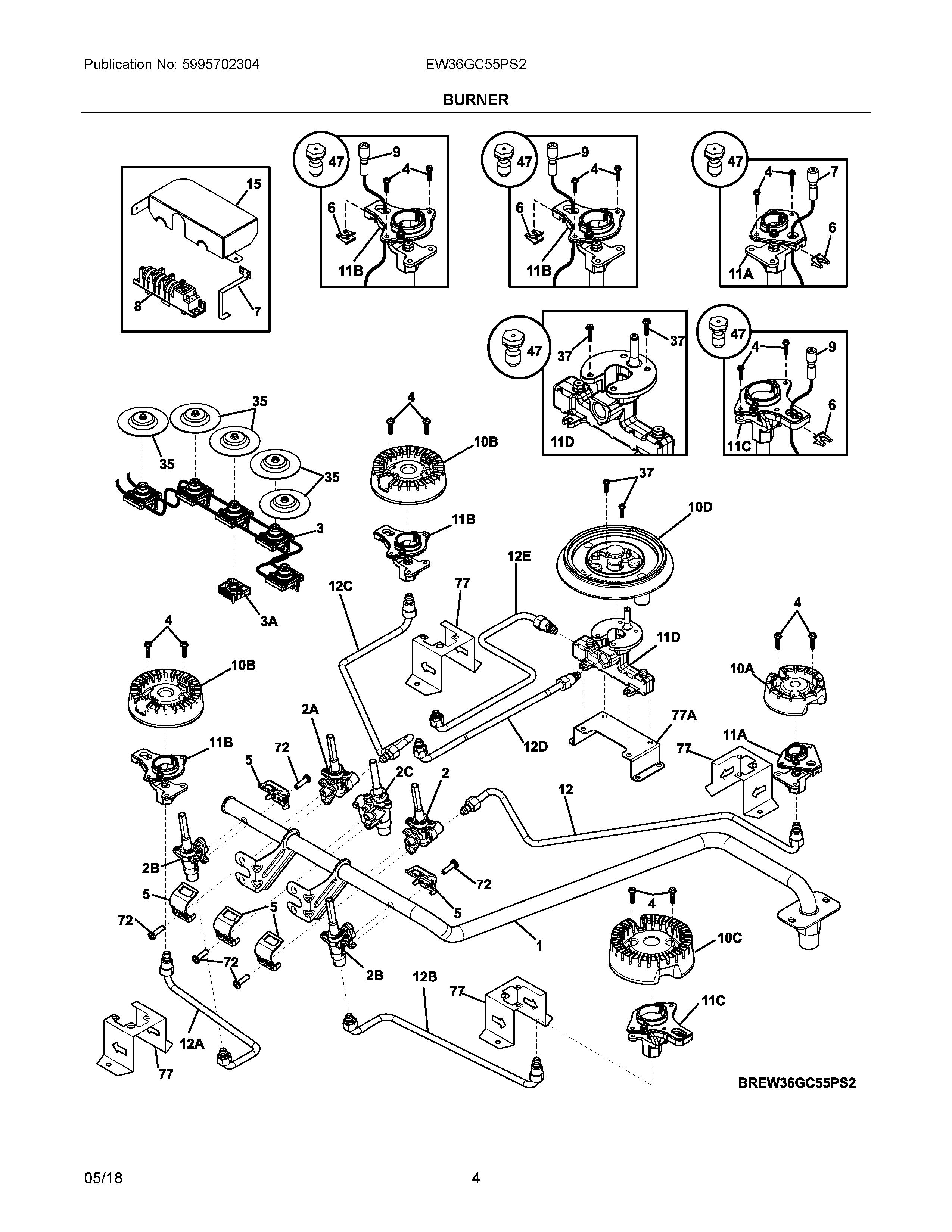

EW36GC55PS2 03 – BURNER

EW36GC55PS2 03 – BURNER

Written by

in

EW36GC55PS2 03 – BURNER

Products

PositionProduct
NI305338702 Frigidaire Screw
NIB305452800 Frigidaire Screw
NIA5304516456 Frigidaire Wire
NI305338602 Frigidaire Screw
NIDAWIRING, IGNITOR, G5-600MM, TWIN BURNER, W/SLEEVE
NIA803910601 Frigidaire Screw
NIDB316566901 Frigidaire Oven Sleeve
1WCI 5304508588
25304508471 Frigidaire Oven Valve
2A5304508472 Frigidaire Oven Valve
2CWCI 5304508579
2B5304508464 Frigidaire Oven Valve
3A5304508439 Frigidaire Oven Adapter Assembly
35304527828 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
75304516453 Frigidaire Igniter
8SPARK MODULE
95304516454 Frigidaire Igniter
10A316438200 Frigidaire Range Sealed Burner, 5K
10D5304501023 Frigidaire Burner Assembly
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11D5304529110 Frigidaire Igniter/Orifice Assembly
11B5304516450 Frigidaire Oven Holder
11C5304516452 Frigidaire Oven Holder
11A5304516449 Frigidaire Oven Holder
12A305595700 Frigidaire Tubing
12ETUBE, DUAL BURNER, MAIN
12D5304527979 Frigidaire Tube
12CTUBING, TOP BURNER, LH REAR
12BTUBING, TOP BURNER, RH FRONT
12TUBING, TOP BURNER, RH REAR
13WCI 318024209
145304519943 Frigidaire Regulator
15SHIELD, HEAT
355304508440 Frigidaire Bushing
37305309701 Frigidaire Oven Screw
47LP KIT, GAS CONVERSION
725304508436 Frigidaire Oven Screw
77AWCI 305583001
77WCI 318920309
