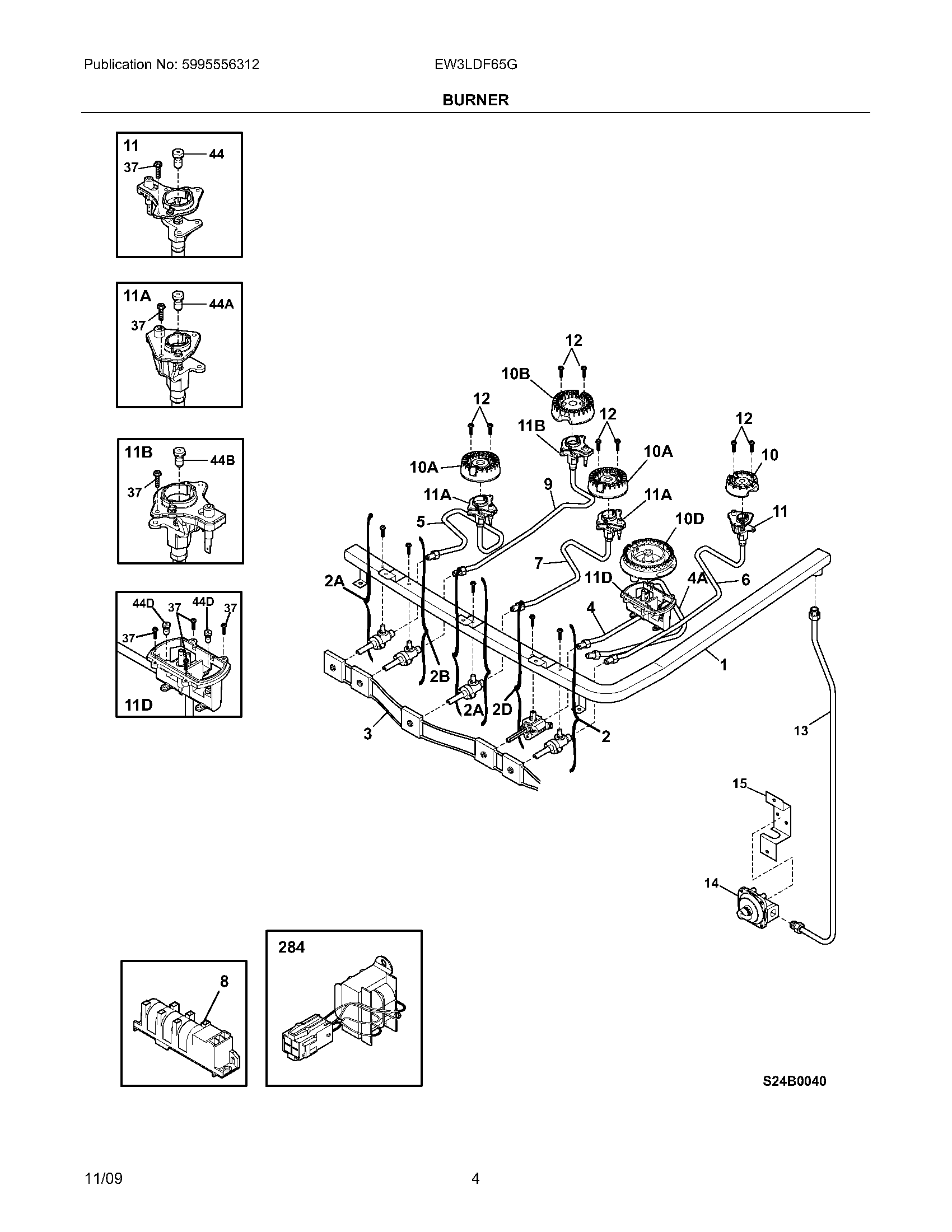

EW3LDF65GBD 05 – BURNER

Products

Position	Product
NI	316215600 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	WCI 316443200
NI	WCI 316064103
NI	WCI 316434900
NI	WCI 316526900
NI	5303271648 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	WCI 316505200
2	WCI 316536700
2A	WCI 316536701
2B	WCI 316536702
2D	WCI 316574903
3	316518201 Frigidaire Assembly Harness
4	WCI 316509000
4A	WCI 316509100
5	WCI 316509300
6	WCI 316509200
7	WCI 316509400
8	SPARK MODULE
9	WCI 316526600
10	316438200 Frigidaire Range Sealed Burner, 5K
10D	WCI 316525401
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
11	WCI 316540801
11A	WCI 316540701
11B	WCI 316543205
11D	316525101 Frigidaire Igniter Orifice Assembly
13	WCI 316545700
14	WCI 316541400
15	316091600 Frigidaire Oven Bracket
37	316540900 Frigidaire Oven Screw
44D	WCI 316523510
44B	316527512 Frigidaire Oven Orifice
44A	316527501 Frigidaire Oven Orifice
44	316527505 Frigidaire Oven Orifice
284	316536100 Frigidaire Transformer
