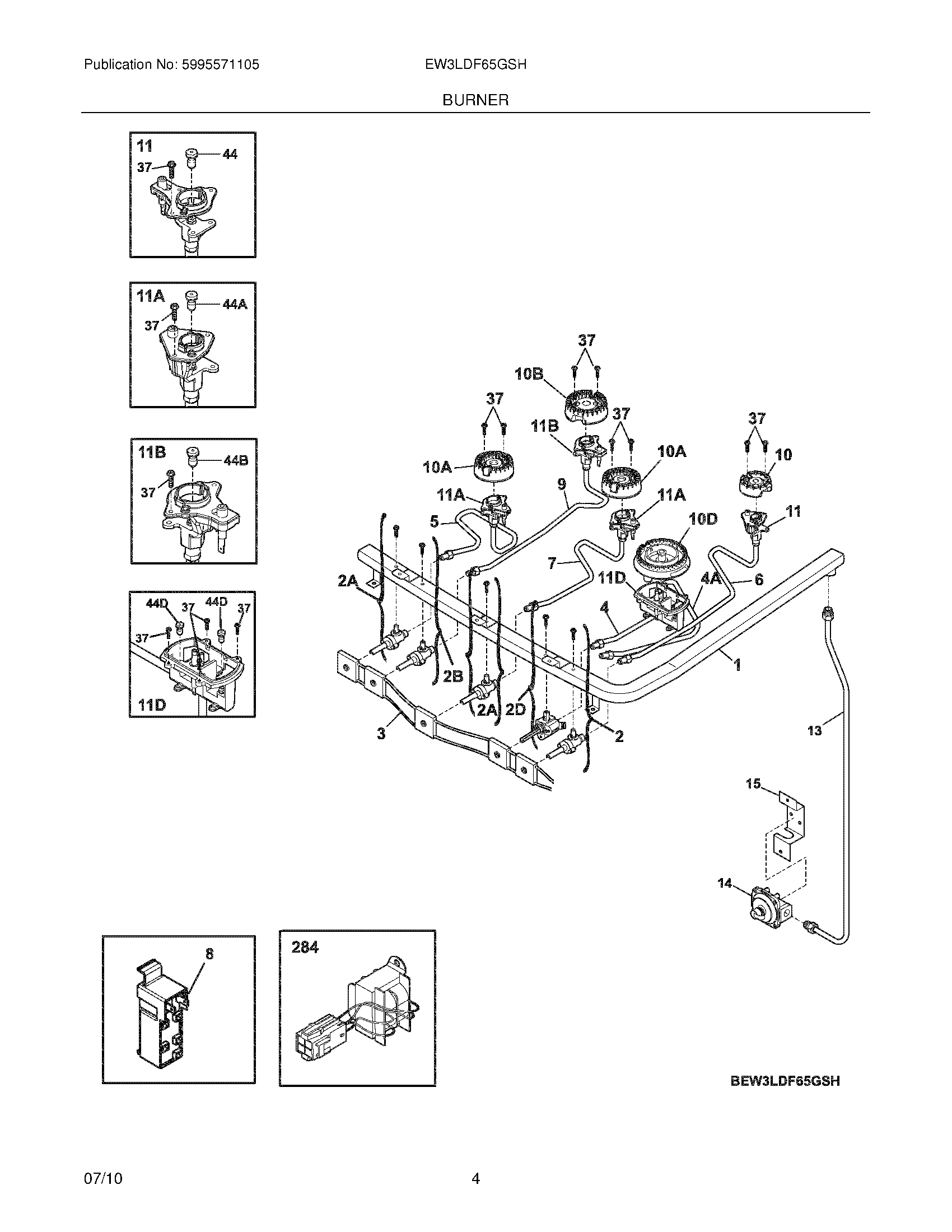

EW3LDF65GSH 05 – BURNER

Products

PositionProduct
NI316215600 Frigidaire Oven Screw
NIWCI 316434900
NI316001017 Frigidaire Screw
NIWCI 316526900
NIWCI 316443201
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1WCI 316505200
2BWCI 316536702
2DWCI 316574903
2WCI 316536700
2AWCI 316536701
3316518201 Frigidaire Assembly Harness
4WCI 316509000
4AWCI 316509100
5WCI 316509300
6WCI 316509200
7WCI 316509400
85304508269 Frigidaire Oven Range Spark Module Kit
9WCI 316526600
10B316438600 Frigidaire Range Sealed Burner, 14K
10DWCI 316525401
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
11WCI 316540801
11AWCI 316527901
11D316525101 Frigidaire Igniter Orifice Assembly
11BWCI 316543205
13WCI 316545700
14WCI 316541400
15316091600 Frigidaire Oven Bracket
37316540900 Frigidaire Oven Screw
44B316527512 Frigidaire Oven Orifice
44A316527501 Frigidaire Oven Orifice
44316527505 Frigidaire Oven Orifice
44DWCI 316523510
284316536100 Frigidaire Transformer
