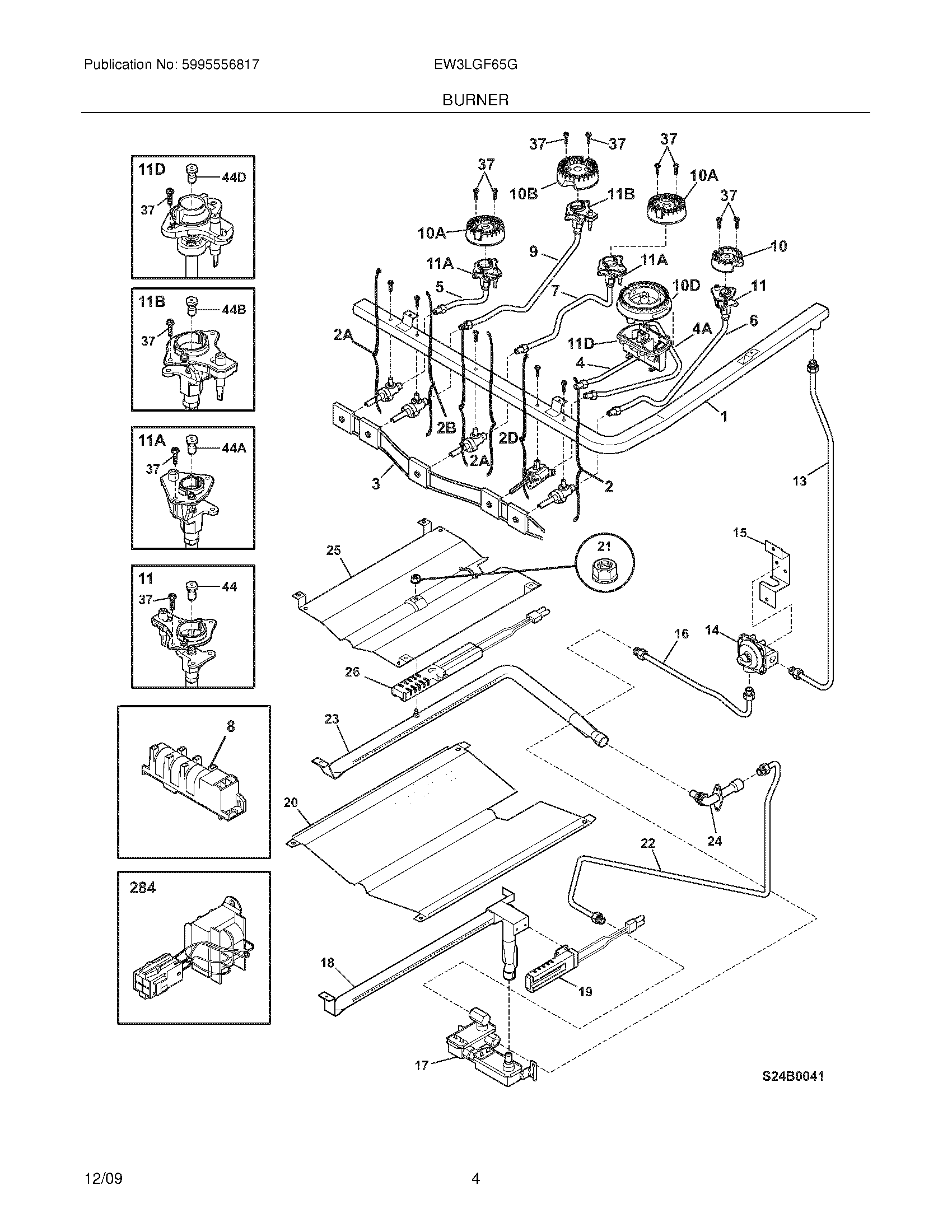

EW3LGF65GBD 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	WCI 316443200
NI	WCI 316064103
NI	WCI 316434900
NI	WCI 316526900
NI	316401500 Frigidaire Oven Cover
NI	316215600 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	WCI 316505200
2	WCI 316536700
2A	WCI 316536701
2B	WCI 316536702
2D	WCI 316574903
3	316518201 Frigidaire Assembly Harness
4	WCI 316509000
4A	WCI 316509100
5	WCI 316509300
6	WCI 316509200
7	WCI 316509400
8	SPARK MODULE
9	WCI 316526600
10D	WCI 316525401
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
10	316438200 Frigidaire Range Sealed Burner, 5K
11A	WCI 316527901
11	WCI 316540801
11B	WCI 316543205
11D	316525101 Frigidaire Igniter Orifice Assembly
13	WCI 316545700
14	316416702 Frigidaire Oven Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	WCI 316404902
18	WCI 316404401
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404305
24	WCI 316409702
25	WCI 316401301
26	BAKE IGNITOR
37	316540900 Frigidaire Oven Screw
44D	WCI 316523510
44B	316527512 Frigidaire Oven Orifice
44A	316527501 Frigidaire Oven Orifice
44	316527505 Frigidaire Oven Orifice
284	316536100 Frigidaire Transformer
