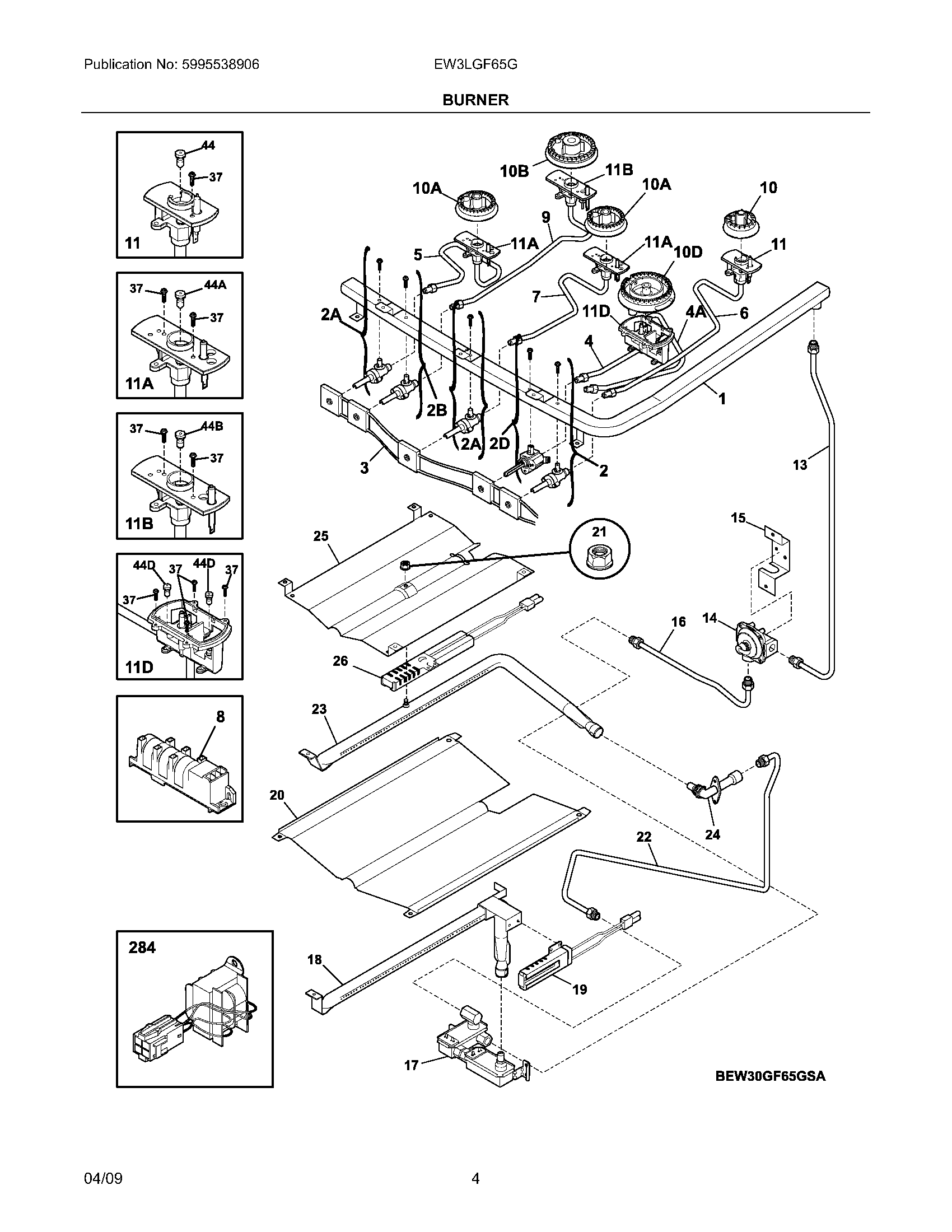

EW3LGF65GWC 05 – BURNER

Products

Position	Product
NI	316215600 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	WCI 7316064103
NI	WCI 7316434900
NI	WCI 7316526900
NI	WCI 7316536300
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
1	WCI 7316505200
2B	WCI 7316536702
2D	WCI 7316540001
2A	WCI 7316536701
2	WCI 7316536700
3	316518201 Frigidaire Assembly Harness
4A	WCI 7316509100
4	WCI 7316509000
5	WCI 7316509300
6	WCI 7316509200
7	WCI 7316509400
8	SPARK MODULE
9	WCI 7316526600
10D	WCI 7316525400
10B	316511200 Frigidaire Oven Burner
10A	WCI 7316511000
10	316510800 Frigidaire Oven Burner
11	WCI 7316524801
11B	WCI 7316525001
11D	316525101 Frigidaire Igniter Orifice Assembly
11A	WCI 7316524901
13	WCI 7316545700
14	316416702 Frigidaire Oven Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	WCI 7316404902
18	WCI 7316404401
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 7316404303
24	WCI 7316409702
25	WCI 7316401301
26	316489401 Frigidaire Igniter Assembly
37	316540900 Frigidaire Oven Screw
44A	WCI 7316523502
44	WCI 7316523505
44D	WCI 7316523510
44B	WCI 7316523507
284	316536100 Frigidaire Transformer
