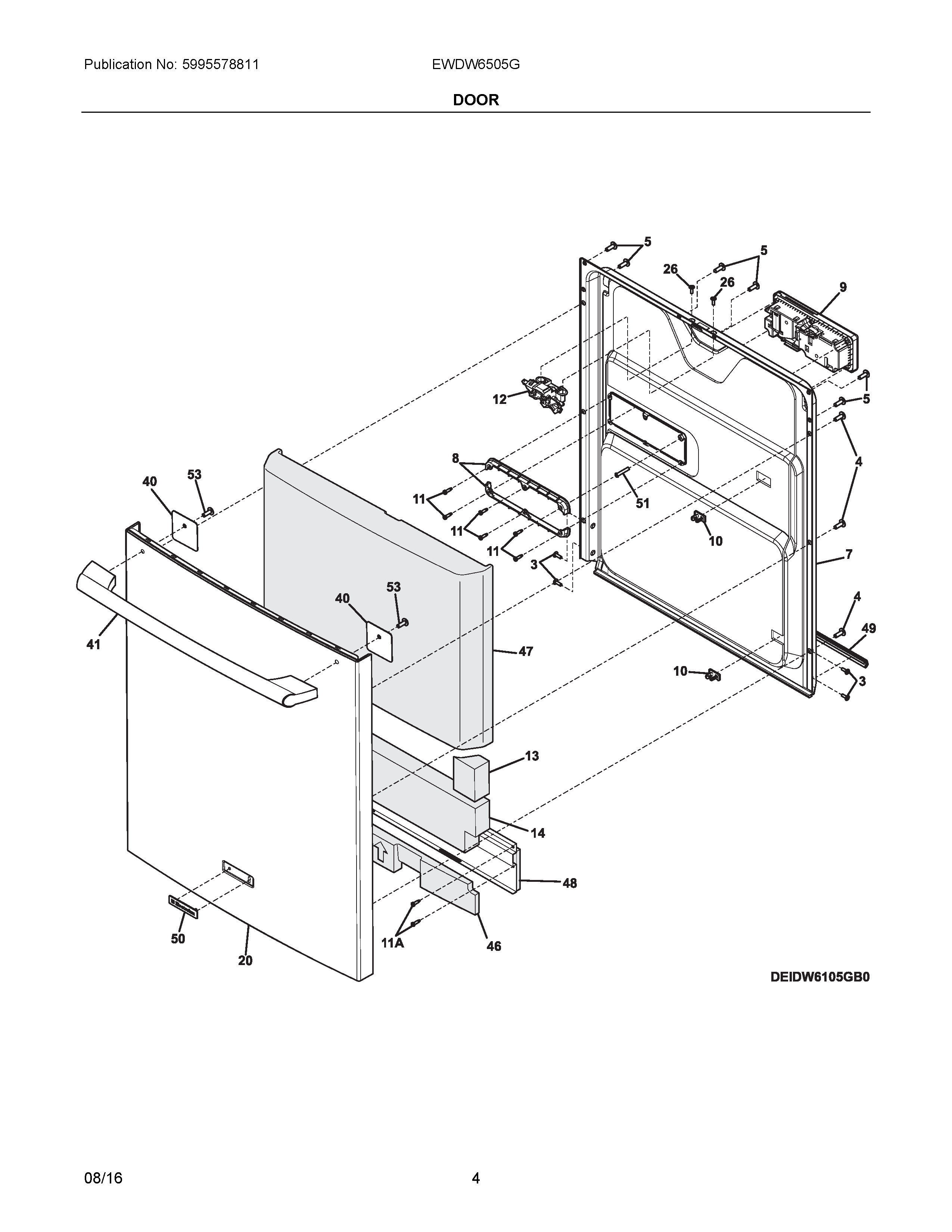

| 3 | SCREW, 6 LOBE RECESS, #10-32, (4) |
| 4 | 154603801 Frigidaire Dishwasher Screw |
| 5 | SCREW, PH, #10-16 HI-LO, (6), 6 LOBE |
| 7 | WCI 154509701 |
| 8 | BRACKET, DISPENSER MTG., (2) |
| 9 | 5304507354 Frigidaire Dishwasher Dispenser |
| 10 | CLIP, WIRING HARNESS |
| 11A | SCREW, 6 LOBE RECESS, #8-18 |
| 11 | SCREW, FT PH 6 LOBE,#8-18 |
| 12 | 154671402 Frigidaire Dishwasher Door Latch Assembly |
| 13 | WCI 154670701 |
| 14 | WCI 154623401 |
| 20 | WCI 154616603 |
| 26 | SCREW, PHLPS HD, #10-16 HI LO, (4) |
| 40 | 154603401 Frigidaire Dishwasher Plate Assembly |
| 41 | WCI 241881319 |
| 46 | WCI 154690501 |
| 47 | WCI 154672001 |
| 48 | REINFORCEMENT, ASSEMBLY, DOOR |
| 49 | GASKET, DOOR BOTTOM |
| 50 | WCI 154658703 |
| 51 | WCI 154320301 |
| 53 | 154633601 Frigidaire Dishwasher Screw |
