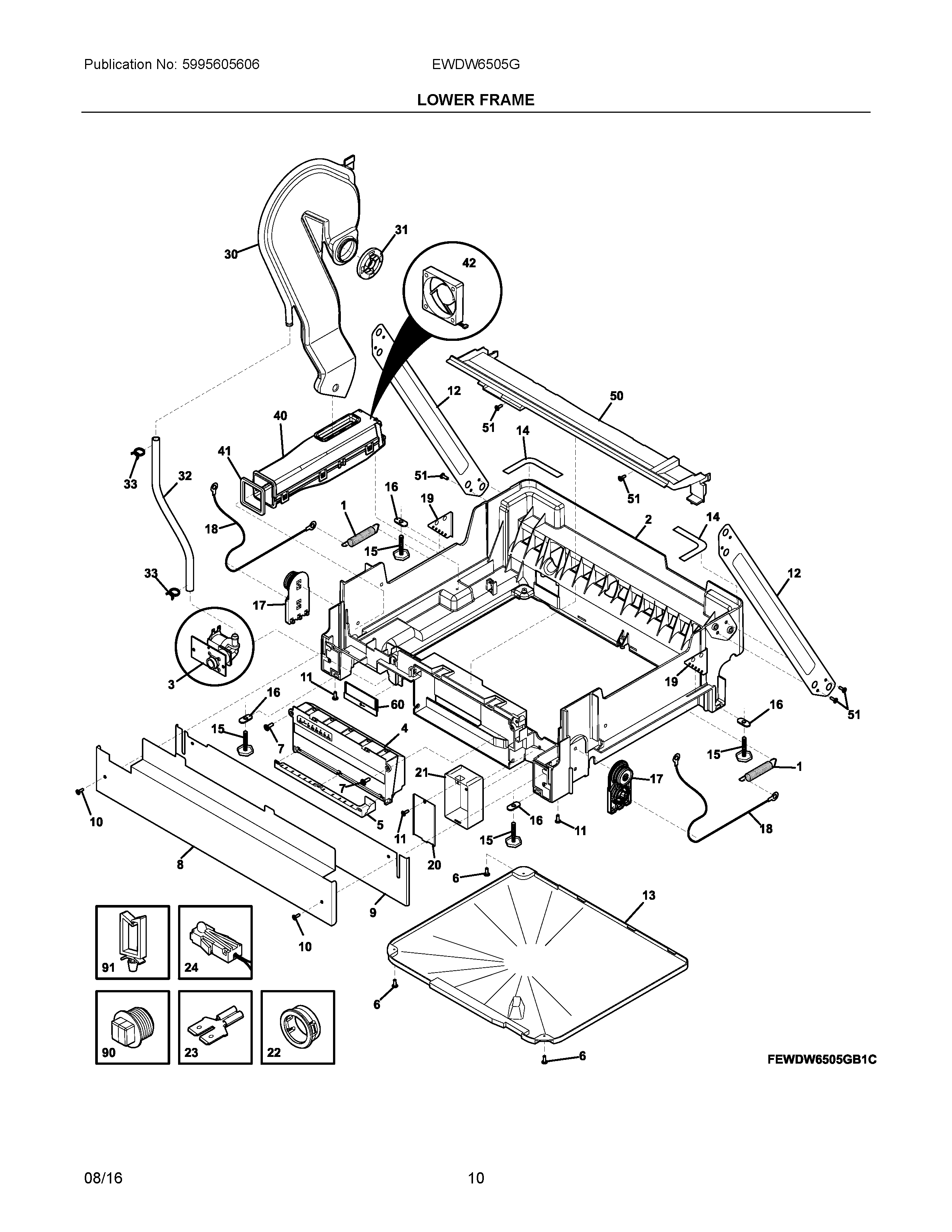

EWDW6505GS1C 06 – LOWER FRAME

Products

PositionProduct
NIADEFL
NIHARNESS, WIRING, RH SIDE, BASE
NIHARNESS, WIRING, LH SIDE, BASE
NISCREW, 6 TRI LOBE, #10 PH, (2)
1SPRING, DOOR HINGE, (2)
2BASE, FRAME MOUNTING
3VALVE ASSEMBLY, WATER
4154750502 Frigidaire Dishwasher Electronic Printed Circuit Control Board
5BRACKET, CONTROL HOUSING
6154294701 Frigidaire Dishwasher Screw
7SCREW, 6 LOBE RECESS, #10 HI LO
8154658005 Frigidaire Dishwasher KickPlate
9154679305 Frigidaire Dishwasher TOE Plate
10WCI 154371307
11SCREW, 6 LOBE RECESS, #8-18
12FRAME, DIAGONAL, LEG, (2)
13TRAY, BASE, W/LABEL
14TAPE, CONNECTION, (2), BASE TO TUB
155304506540 Frigidaire Dishwasher Leg Assembly
16PLATE, MOUNTING, (4), LEVELING LEG
17BRACKET ASSEMBLY, PULLEY, (2)
18154658601 Frigidaire Hinge Cable
19PLATE, ADJUSTMENT, (2), DOOR SPRING
20COVER, JUNCTION BOX, W/LABEL
21BOX, JUNCTION
22GROMMET, ELECTRICAL
23CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE
24LIGHT ASSEMBLY, CLEANING
30154617901 Frigidaire Dishwasher Duct Assembly
31COVER, DRYING INLET
32154625001 Frigidaire Dishwasher Tubing
33CLAMP, HOSE
40DUCT ASSEMBLY, LOWER DRYING, W/MOTOR
41GASKET, DRYING DUCT, LOWER
42MOTOR, DRYING
50ADAPTOR PLATE, ASSEMBLY, W/SHIELD
51154518001 Frigidaire Refrigerator Screw
60COVER, VALVE SERVICE
90PLUG, WATER VALVE
91CLIP, WIRING
