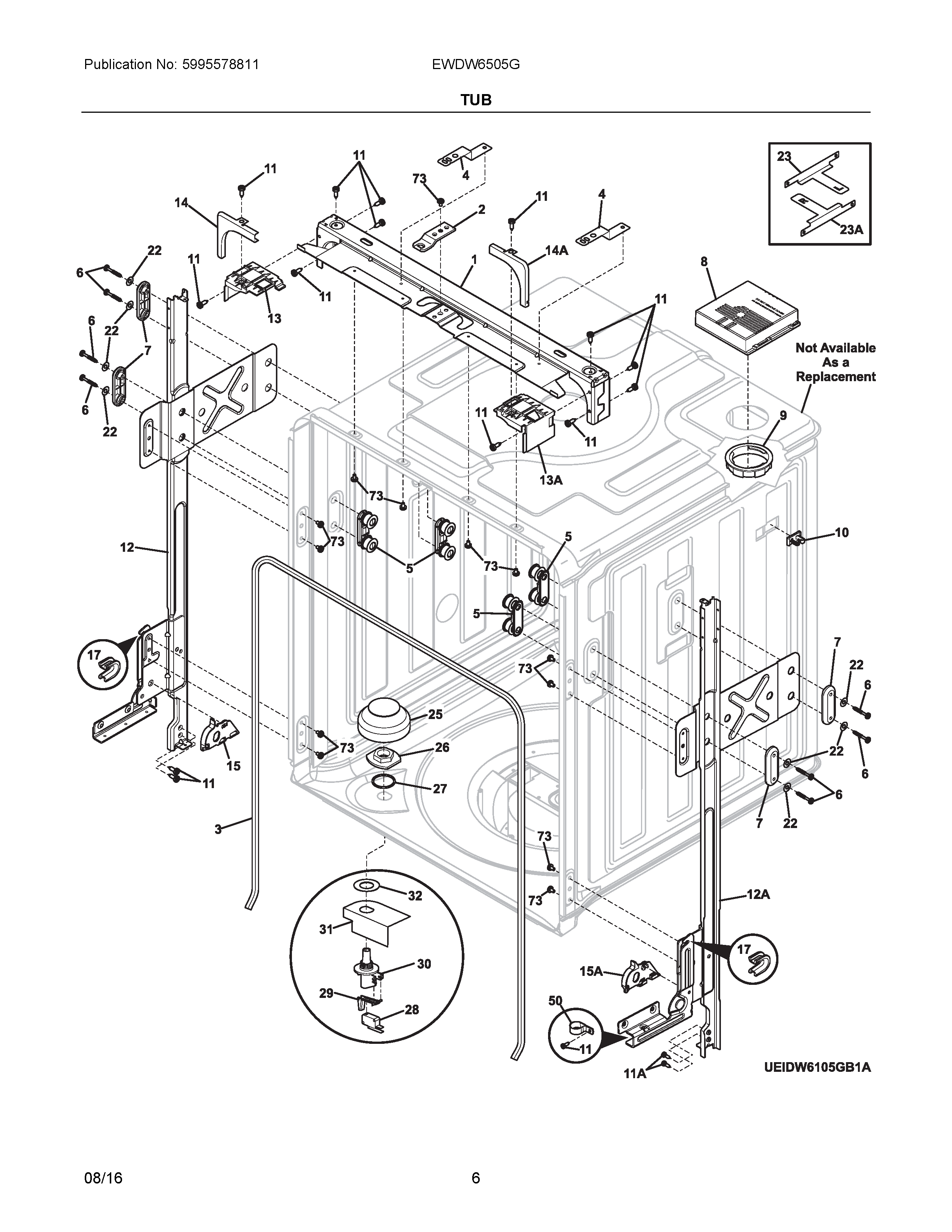

EWDW6505GW0B 04 – TUB

EWDW6505GW0B 04 – TUB

Written by

in

EWDW6505GW0B 04 – TUB

Products

PositionProduct
NIA154691601 Frigidaire Dishwasher Cover
NIASCREW, CABINET CLAMP, (2)
NISEAL, TUB CORNER, LH LOWER
NICLIP, INSULATION, (2)
NIWCI 154662101
NIINSULATION, BLANKET
NI154733001 Frigidaire Dishwasher Seal
1BRACE, FRAME, TOP
2STRIKE, DOOR LATCH
3GASKET, TUB
4CLIP, CABINET MTG., TOP MOUNT, (2)
5ROLLER ASSEMBLY, TUB, (4), W/GASKET
6WCI 154719001
7PLATE, RETAINER, OUTER, (2), TUB ROLLER
8VENT ASSEMBLY, UPPER
9154622601 Frigidaire Dishwasher Bezel
10CLIP, WIRING HARNESS
11SCREW, 6 LOBE RECESS, #8-18
11A154200701 Frigidaire Dishwasher Screw
12ALEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT
12LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT
13BRACKET, CABINET CLIP, LH
13ABRACKET, CABINET CLIP, RH
14ATRIM, CORNER, RH
14TRIM, CORNER, LH
15COVER, HINGE ARM, LH
15ACOVER, HINGE ARM, RH
17BUSHING, HINGE ARM CABLE, (2)
225300809968 Frigidaire Dishwasher P-1 Washer
23ACLIP, CABINET MTG., RH
23154654601 Frigidaire Dishwasher Clip
26154506902 Frigidaire Dishwasher Nut
27154677201 Frigidaire Dishwasher Gasket
28154860901 Frigidaire Dishwasher Float Sensor
30154763901 Frigidaire Dishwasher Switch Assembly
31WCI 154657101
32154506801 Frigidaire Dishwasher Washer
50154690101 Frigidaire Clamp
73SCREW, 6 LOBE RECESS, #8-32
