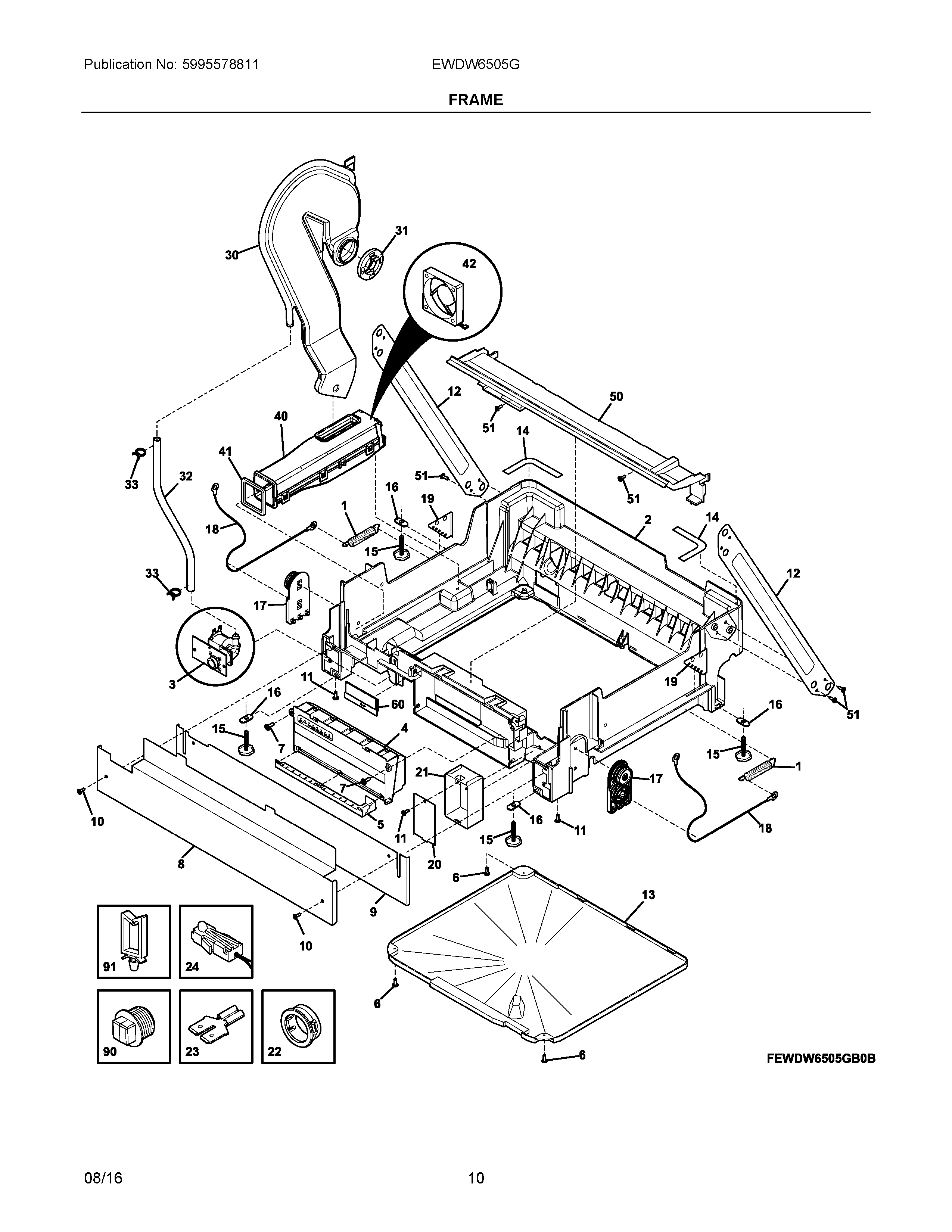

EWDW6505GW0B 06 – FRAME

EWDW6505GW0B 06 – FRAME

Written by

in

EWDW6505GW0B 06 – FRAME

Products

PositionProduct
NISCREW, 6 TRI LOBE, #10 PH, (2)
NIWCI 154688401
NIWCI 154654001
NIADEFL
1WCI 154514801
2BASE, FRAME MOUNTING
3VALVE ASSEMBLY, WATER
4154750502 Frigidaire Dishwasher Electronic Printed Circuit Control Board
5BRACKET, CONTROL HOUSING
6154294701 Frigidaire Dishwasher Screw
7SCREW, 6 LOBE RECESS, #10 HI LO
8KICKPLATE, WHITE, W/LABEL
9TOE PLATE, ADJUSTABLE, WHITE, W/DAMPER
10154371301 Frigidaire Dishwasher Screw
11SCREW, 6 LOBE RECESS, #8-18
12FRAME, DIAGONAL, LEG, (2)
13TRAY, BASE, W/LABEL
14TAPE, CONNECTION, (2), BASE TO TUB
155304506540 Frigidaire Dishwasher Leg Assembly
16PLATE, MOUNTING, (4), LEVELING LEG
17WCI 154792201
18154658601 Frigidaire Hinge Cable
19PLATE, ADJUSTMENT, (2), DOOR SPRING
20COVER, JUNCTION BOX, W/LABEL
21BOX, JUNCTION
22GROMMET, ELECTRICAL
23CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE
24LIGHT ASSEMBLY, CLEANING
30154617901 Frigidaire Dishwasher Duct Assembly
31COVER, DRYING INLET
32154625001 Frigidaire Dishwasher Tubing
33CLAMP, HOSE
40DUCT ASSEMBLY, LOWER DRYING, W/MOTOR
41GASKET, DRYING DUCT, LOWER
42MOTOR, DRYING
50ADAPTOR PLATE, ASSEMBLY, W/SHIELD
51154518001 Frigidaire Refrigerator Screw
60COVER, VALVE SERVICE
90PLUG, WATER VALVE
91CLIP, WIRING
