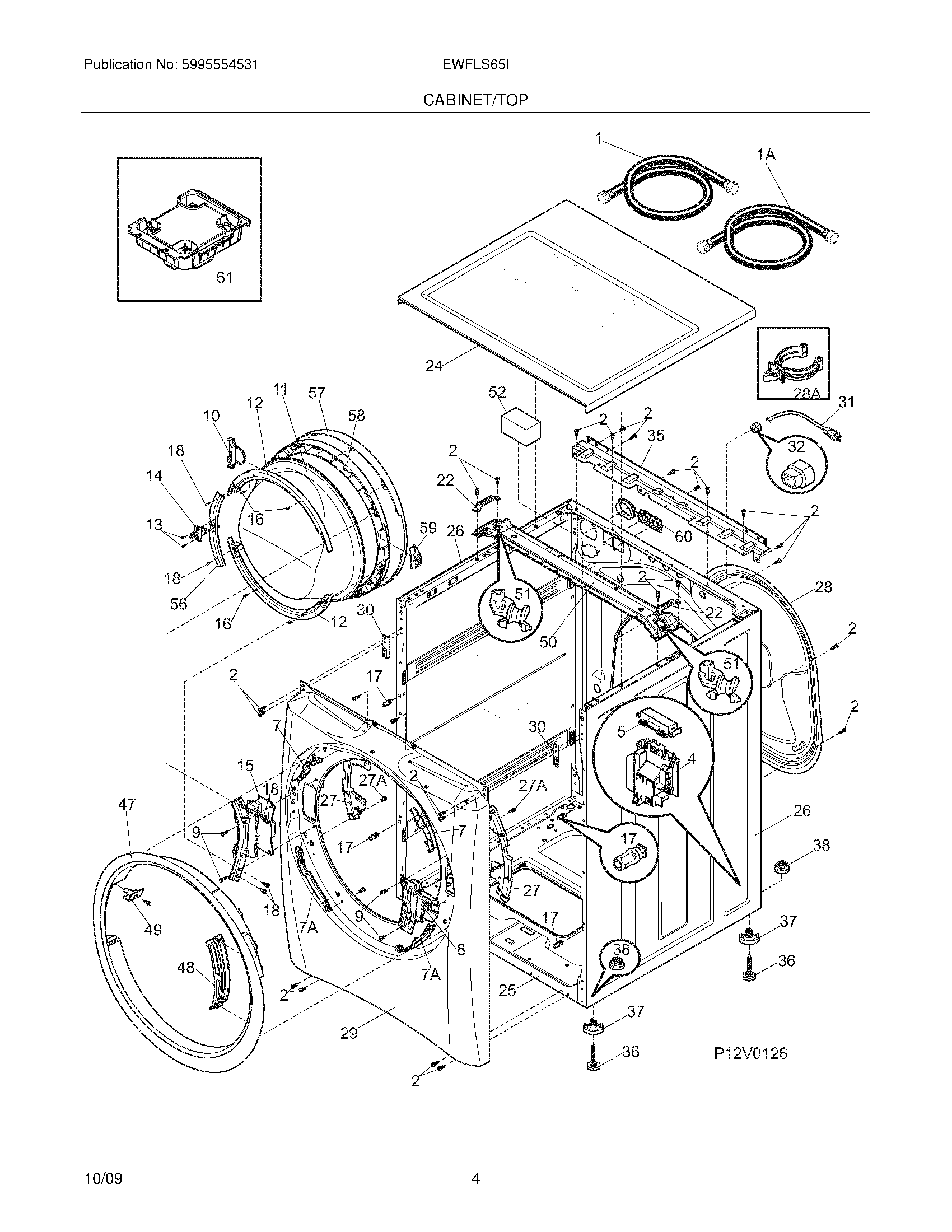

EWFLS65IIW0 05 – CABINET/TOP

EWFLS65IIW0 05 – CABINET/TOP

Written by

in

EWFLS65IIW0 05 – CABINET/TOP

Products

PositionProduct
NI134629400 Frigidaire Screw
NI134868900 Frigidaire Harness
NI134876501 Frigidaire Clip
NIWCI 134657300
NIWCI 134657400
NIWCI 134657500
NIWCI 134994500
NI131302901 Frigidaire Screw
NI137380600 Frigidaire Screw – M5 x 0.8
NI134178901 Frigidaire Screw
NI131202300 Frigidaire Screw
1WCI 137015502
1AWCI 137015503
2131168200 Frigidaire Dryer Screw
4WCI 134618200
5134649700 Frigidaire Cover
7A137046700 Frigidaire Bracket
7137046800 Frigidaire Bracket
8134629900 Frigidaire Washer Door Lock
9131302800 Frigidaire Drum Vane Screw
10WCI 134933900
115304505107 Frigidaire Door Glass Window
12134696901 Frigidaire Frame
14134937300 Frigidaire Washer Door Strike
15WCI 137107500
16134788000 Frigidaire Screw
17134638700 Frigidaire Clip
18134790400 Frigidaire Screw
22134648500 Frigidaire Spring Bracket
24134638510 Frigidaire Washer Dryer Top Panel
25WCI 134646000
26PANEL, SIDE, WHITE
27A134790600 Frigidaire Screw
27WCI 134879800
28AWCI 134649400
28BACK PANEL SERVICE,service
29PANEL, CABINET FRONT, WHITE
30WCI 134858010
30WCI 134858000
31137011400 Frigidaire Power Cord
325303209428 Frigidaire Serv.Cord Bushing
35WCI 134713100
36134639100 Frigidaire Leveling Leg
37134617600 Frigidaire Bushing
38134639200 Frigidaire Nut
475304505715 Frigidaire Trim Ring
48WCI 134967200
49134651200 Frigidaire Retainer
50WCI 134645600
51134655800 Frigidaire Protector
52131931202 Frigidaire Dampener
56134925001 Frigidaire Lock Cover
58137067900 Frigidaire Outer Lens Assembly
59134931500 Frigidaire Cover
60134372000 Frigidaire Grommet
61134652000 Frigidaire Damper
