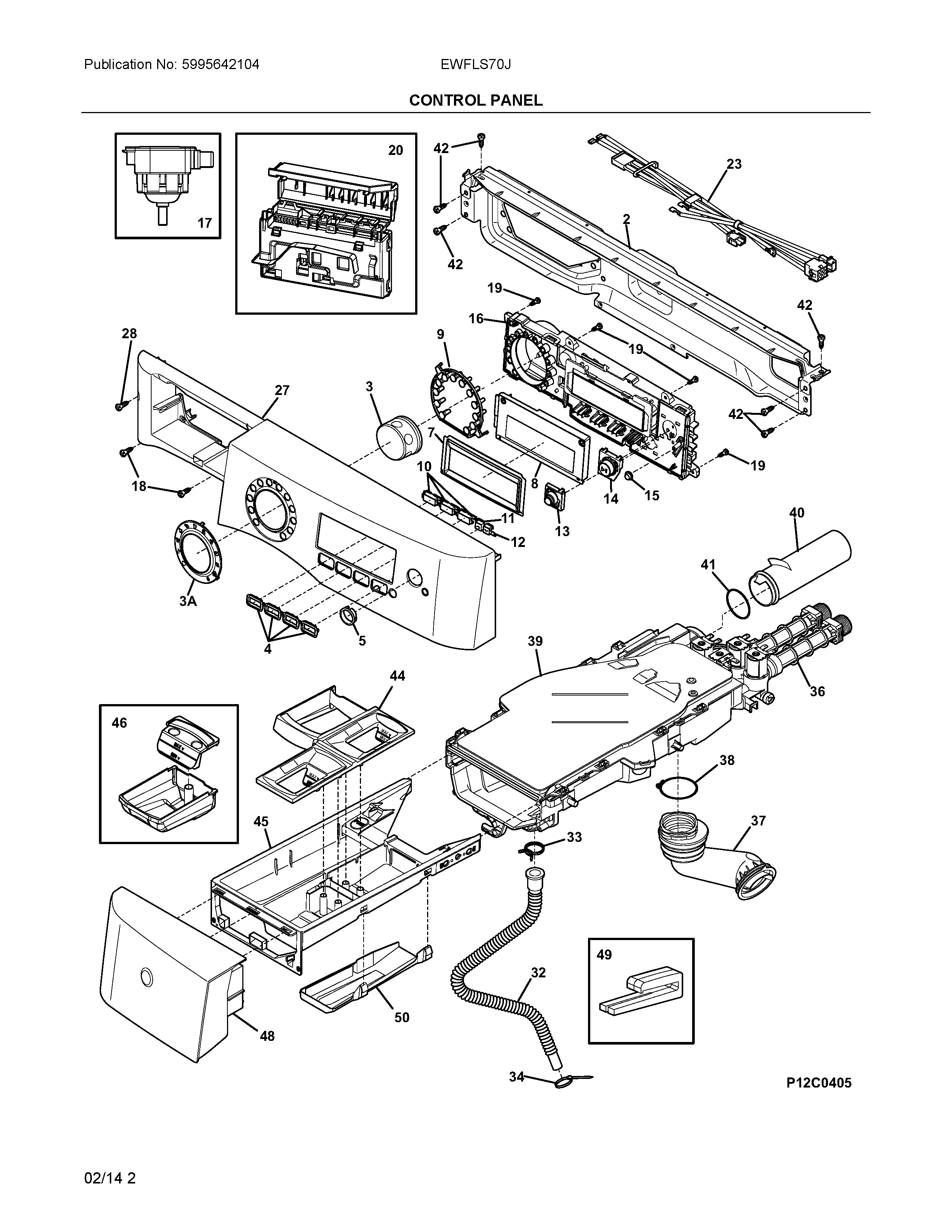

EWFLS70JIW1 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NIA	134371300 DISPENSER TO VALVE GASKET
NI	WCI 137356500
2	134887400 Frigidaire Bracket
3A	WCI 137021400
3	WCI 134766500
4	134871900 Frigidaire Pipe
5	134767800 Frigidaire Pipe
7	137007800 Frigidaire Trim
8	134767600 Frigidaire Lens
9	134768400 Frigidaire Pipe
10	137007900 Frigidaire Cap
11	137043100 Frigidaire Button
12	137010900 Frigidaire Button
13	137021200 Frigidaire Button
14	137009900 Frigidaire Button
15	WCI 137008100
16	WCI 134994821
17	134762010 Frigidaire Washer Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
20	809019910 Frigidaire Control Assembly
23	HARNESS, WIRING, MAIN
27	WCI 137312410
28	131302901 Frigidaire Screw
32	HOSE, DISP-TO-BELLOWS
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	WATER VALVE W/O THERMISTER
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	WCI 134964020
40	WCI 134372100
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
44	WCI 134638310
45	WCI 134638200
46	137143800 Frigidaire Cup
48	WCI 137316510
49	137105200 Frigidaire Guide
50	WCI 134638400
