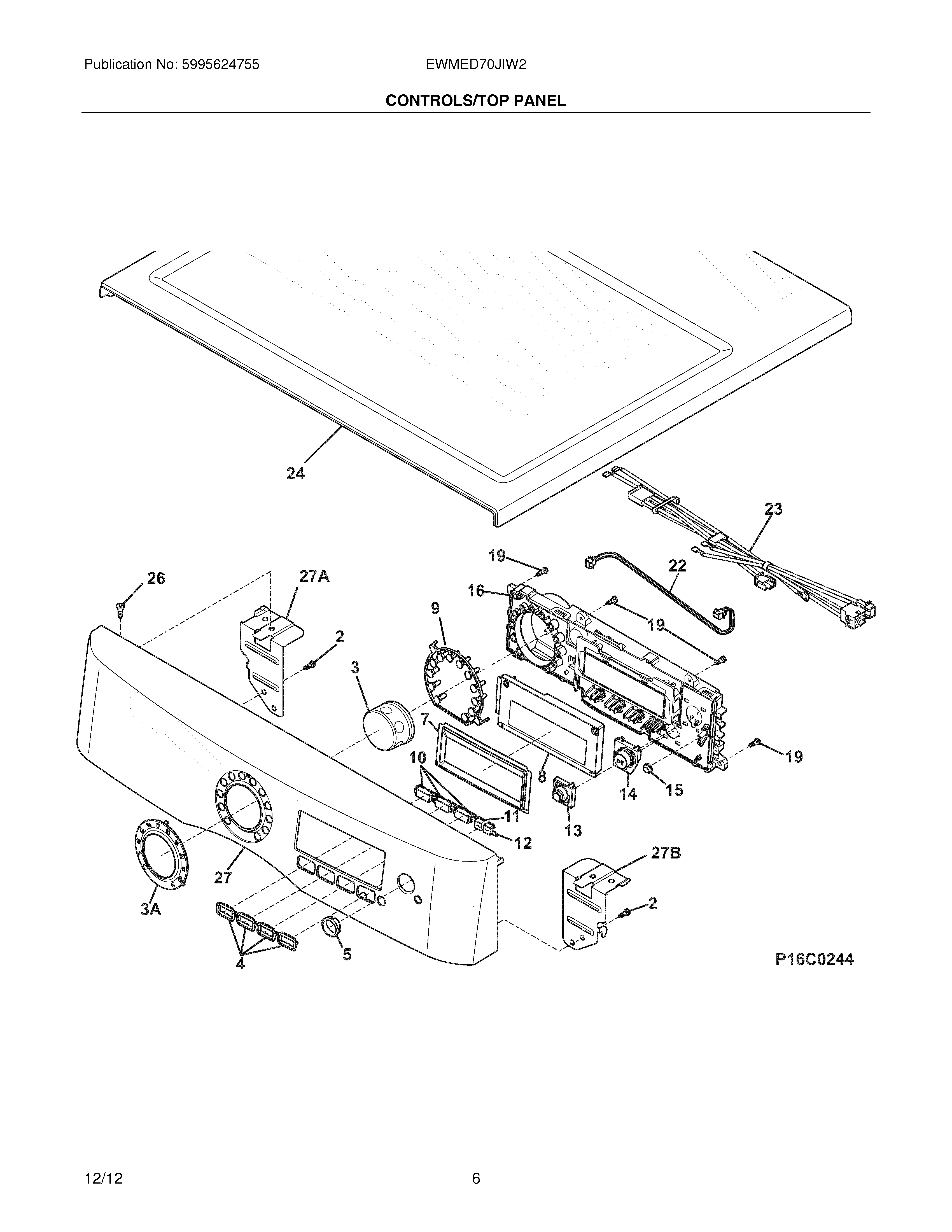

EWMED70JIW2 07 – CONTROLS

Products

Position	Product
NI	137150200 Frigidaire Terminal
NI	134926600 Frigidaire Damper
2	131168200 Frigidaire Dryer Screw
3A	137063600 Frigidaire Ring
3	WCI 134766500
4	134871900 Frigidaire Pipe
5	134767800 Frigidaire Pipe
7	137007800 Frigidaire Trim
8	134767600 Frigidaire Lens
9	134768400 Frigidaire Pipe
10	137007900 Frigidaire Cap
11	137043100 Frigidaire Button
12	137010900 Frigidaire Button
13	137021200 Frigidaire Button
14	137009900 Frigidaire Button
15	WCI 137008100
16	809160410 Frigidaire Dryer Control Board
19	134402900 Frigidaire Screw
22	134790700 Frigidaire Harness
23	Harness,main wire
24	134638510 Frigidaire Washer Dryer Top Panel
26	131205100 Frigidaire Screw
27B	134711000 Frigidaire Bracket
27A	134710900 Frigidaire Bracket Assembly
27	137317411 Frigidaire Control Panel Console
