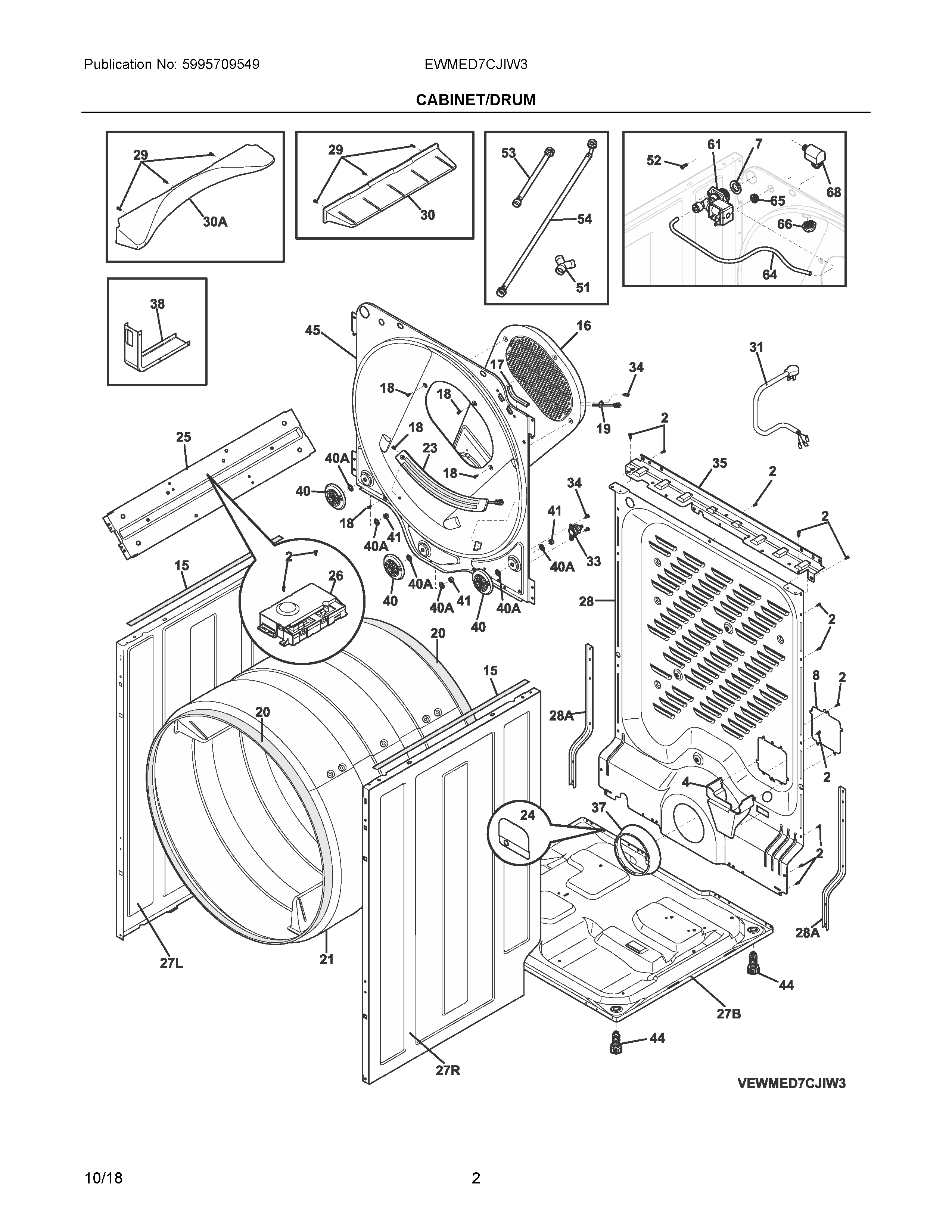

EWMED7CJIW3 02 – CABINET/DRUM

EWMED7CJIW3 02 – CABINET/DRUM

Written by

in

EWMED7CJIW3 02 – CABINET/DRUM

Products

PositionProduct
NIB134930800 Frigidaire Harness
NIA131205500 Frigidaire Screw
NIA134716200 Frigidaire Retainer
NIAStrain relief,240 ,pwr cord
NIWCI 137360810
NIAWCI 137611500
NIAWCI 137577900
NIA5304506746 Frigidaire Shield
NIBRACE, SIDE PANEL
NIA134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
4134792100 Frigidaire Bracket
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
8137578600 Frigidaire Cover
15137031800 Frigidaire Cushion
165304508449 Frigidaire Washer Dryer Air Duct
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
19134711200 Frigidaire Washer Thermistor
20137565300 Frigidaire Seal
21137610710 Frigidaire Drum Assembly
23134786100 Frigidaire Moisture Sensor
24137537100 Frigidaire Cover
25137567001 Frigidaire Bracket Assembly
26809160302NH Frigidaire Control Board
27L134712610 Frigidaire Panel
27B134690203 Frigidaire Base
27RPANEL, RIGHT SIDE, WHITE
28137560425 Frigidaire Panel
28A137029801 Frigidaire Bracket Assembly
29131205100 Frigidaire Screw
30A137611100 Frigidaire Vane
30137610900 Frigidaire Vane Assembly
315304505408 Frigidaire Cord
33137515200 Frigidaire Limiter
34131243700 Frigidaire Screw
35WCI 134713100
37137553500 Frigidaire COVER
38GUARD, ROLLER
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
44216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45137556623 Frigidaire Bulkhead
515304500709 Frigidaire Y Hose Adapter Fitting
52131202300 Frigidaire Screw
53137471800 Frigidaire Hose
545304503984 Frigidaire Kit Assembly
61LOW PROFILE MIST VALVE
65137017200 Frigidaire Grommet
665304529773 Frigidaire Nozzle Assembly
