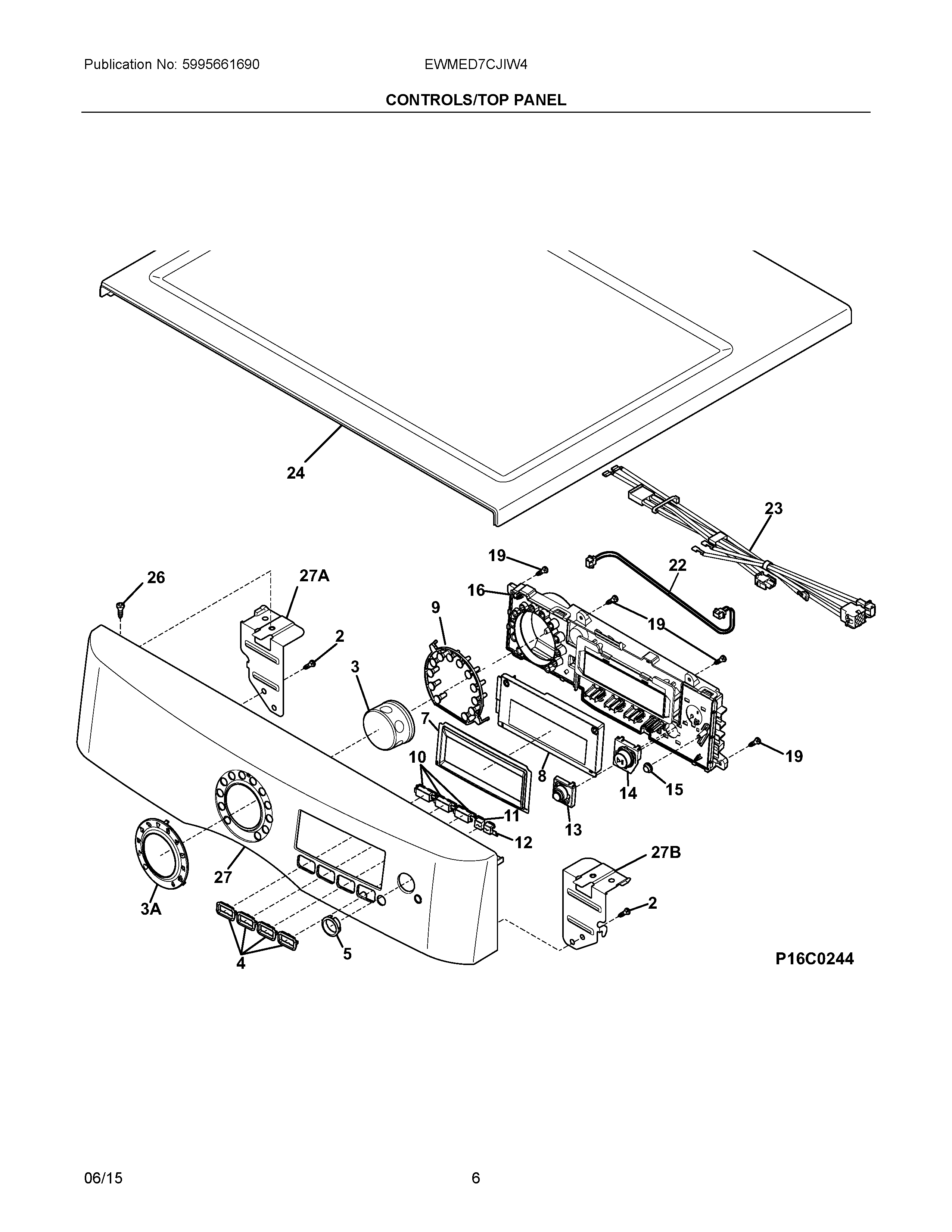

EWMED7CJIW4 04 – CONTROLS/TOP PANEL

EWMED7CJIW4 04 – CONTROLS/TOP PANEL

Written by

in

EWMED7CJIW4 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA137150200 Frigidaire Terminal
NIA134926600 Frigidaire Damper
2131168200 Frigidaire Dryer Screw
3A137063600 Frigidaire Ring
3WCI 134766500
4134871900 Frigidaire Pipe
5134767800 Frigidaire Pipe
7137007800 Frigidaire Trim
8134767600 Frigidaire Lens
9134768400 Frigidaire Pipe
10137007900 Frigidaire Cap
11137043100 Frigidaire Button
12137010900 Frigidaire Button
13137021200 Frigidaire Button
14137009900 Frigidaire Button
15WCI 137008100
16WCI 809160406
19134402900 Frigidaire Screw
22134790700 Frigidaire Harness
23WCI 5304500490
24134638510 Frigidaire Washer Dryer Top Panel
26131205100 Frigidaire Screw
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
27137317411 Frigidaire Control Panel Console
