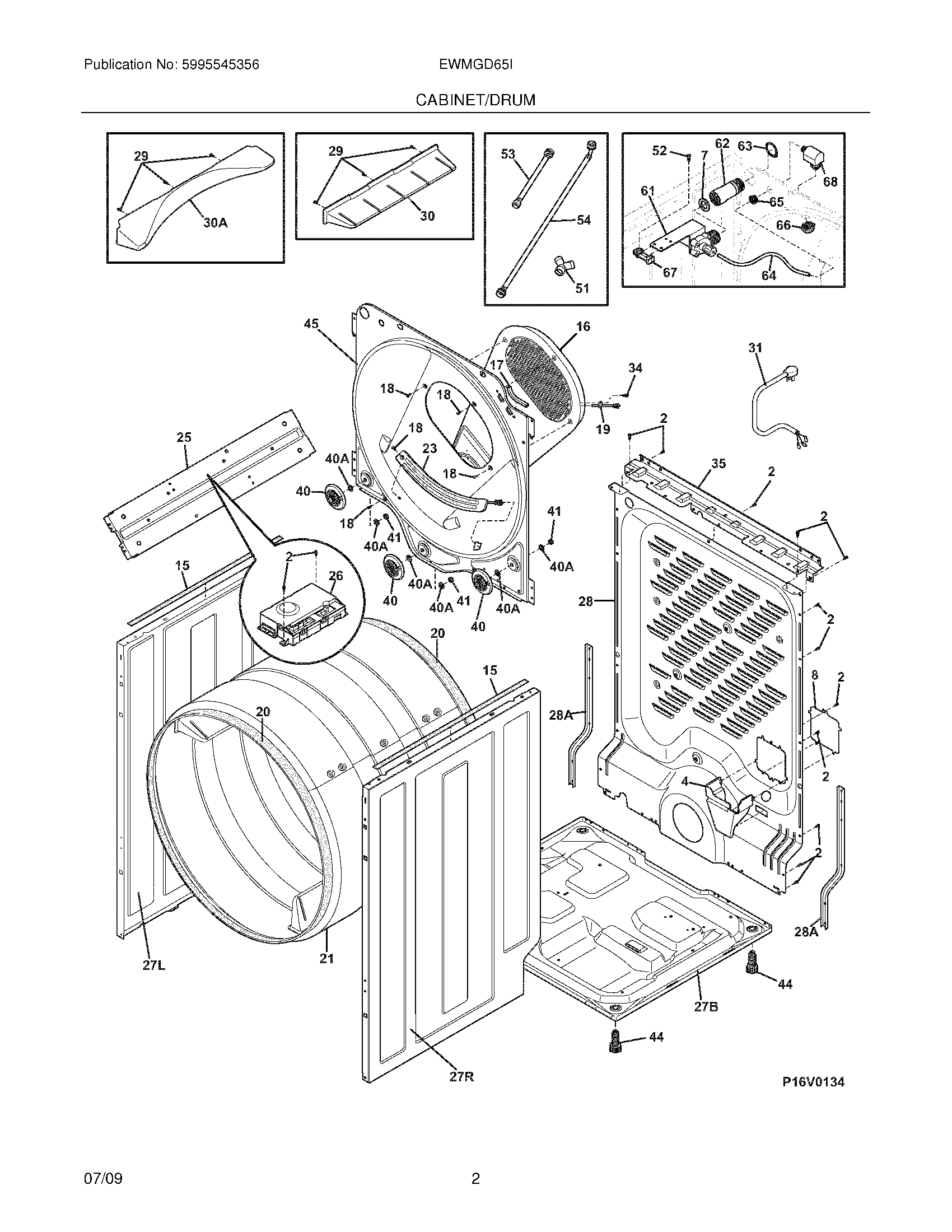

EWMGD65IRR1 03 – CABINET/DRUM

Products

Position	Product
NI	134930800 Frigidaire Harness
NI	5304438633 Frigidaire Dishwasher Romex Connector
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	134700400 Frigidaire Kit
NI	134716200 Frigidaire Retainer
2	131168200 Frigidaire Dryer Screw
4	134792100 Frigidaire Bracket
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	134694400 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
19	134711200 Frigidaire Washer Thermistor
20	WCI 7134705900
21	WCI 7134708200
23	134786100 Frigidaire Moisture Sensor
25	137567001 Frigidaire Bracket Assembly
26	WCI 7137032500
27R	WCI 7134712730
27B	134690203 Frigidaire Base
27L	WCI 7134712630
28A	137029801 Frigidaire Bracket Assembly
28	137560425 Frigidaire Panel
29	131205100 Frigidaire Screw
30A	137611100 Frigidaire Vane
30	137610900 Frigidaire Vane Assembly
31	5304505407 Frigidaire Cord
34	WCI 7131243700
35	WCI 7134713100
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
44	WCI 7134158000
45	WCI 7134712813
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	131202300 Frigidaire Screw
53	137471800 Frigidaire Hose
54	5304503984 Frigidaire Kit Assembly
61	WCI 7137016600
62	WCI 7134935400
63	WCI 7137016500
64	WCI 7137016300
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
67	WCI 7137017400
