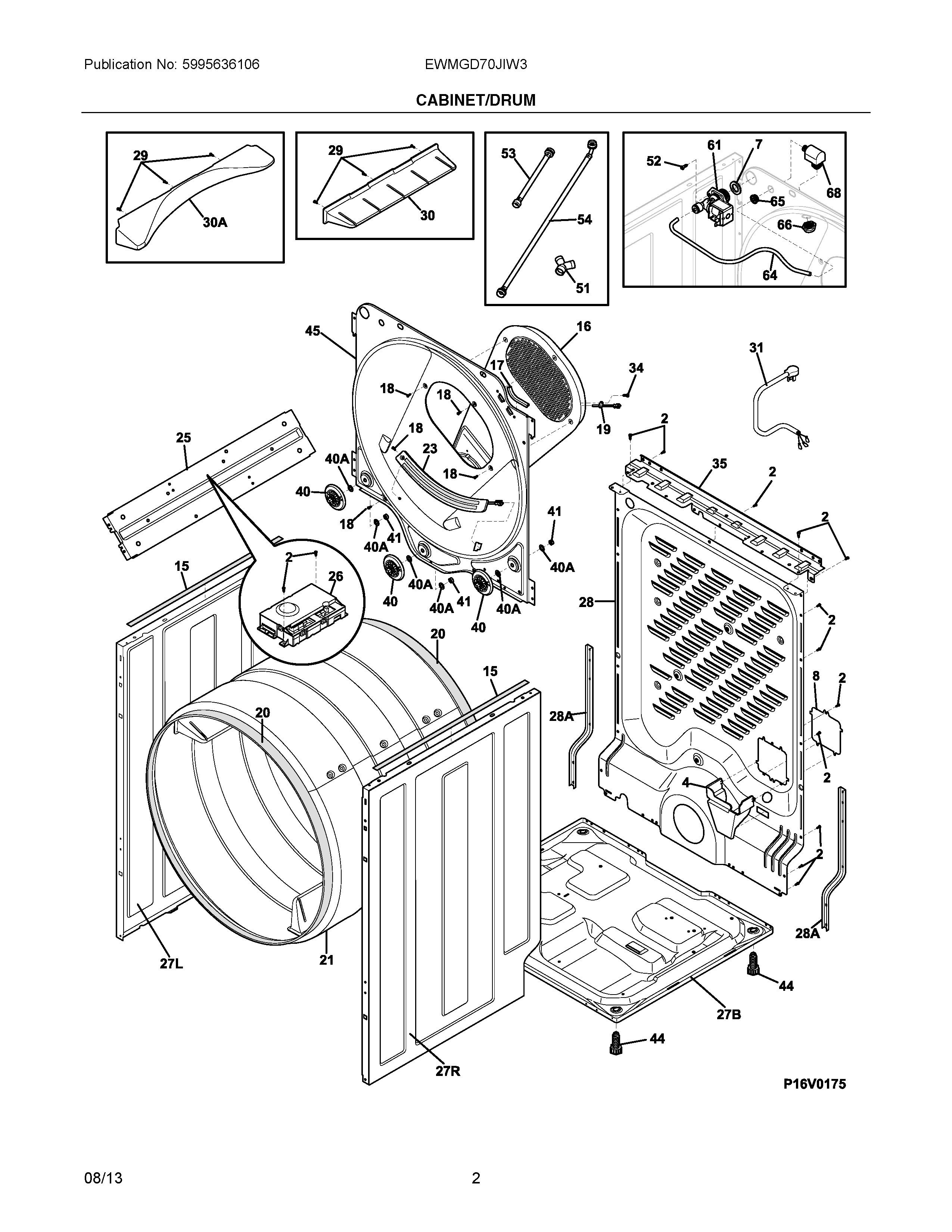

EWMGD70JIW3 02 – CABINET/DRUM

EWMGD70JIW3 02 – CABINET/DRUM

Written by

in

EWMGD70JIW3 02 – CABINET/DRUM

Products

PositionProduct
NIA134930800 Frigidaire Harness
NIAWCI 137360810
NIA134716200 Frigidaire Retainer
NIBRACE, SIDE PANEL
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIA5304438633 Frigidaire Dishwasher Romex Connector
4134792100 Frigidaire Bracket
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
8134694400 Frigidaire Cover
15137031800 Frigidaire Cushion
165304509715 Frigidaire Duct
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
19134711200 Frigidaire Washer Thermistor
20WCI 134705900
21Drum,dryer
23134786100 Frigidaire Moisture Sensor
25137567001 Frigidaire Bracket Assembly
26809160303 Frigidaire Control Board
27B134690203 Frigidaire Base
27RPANEL, RIGHT SIDE, WHITE
27L134712610 Frigidaire Panel
28A137029801 Frigidaire Bracket Assembly
28137560425 Frigidaire Panel
29131205100 Frigidaire Screw
30A137611100 Frigidaire Vane
30137610900 Frigidaire Vane Assembly
315304505407 Frigidaire Cord
34131243700 Frigidaire Screw
35WCI 134713100
40A134716700 Frigidaire Washer
405304523155 Frigidaire Washer Kit
41134716800 Frigidaire Nut
44216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45137556623 Frigidaire Bulkhead
515304500709 Frigidaire Y Hose Adapter Fitting
52131202300 Frigidaire Screw
53137471800 Frigidaire Hose
545304503984 Frigidaire Kit Assembly
61LOW PROFILE MIST VALVE
65137017200 Frigidaire Grommet
665304529773 Frigidaire Nozzle Assembly
