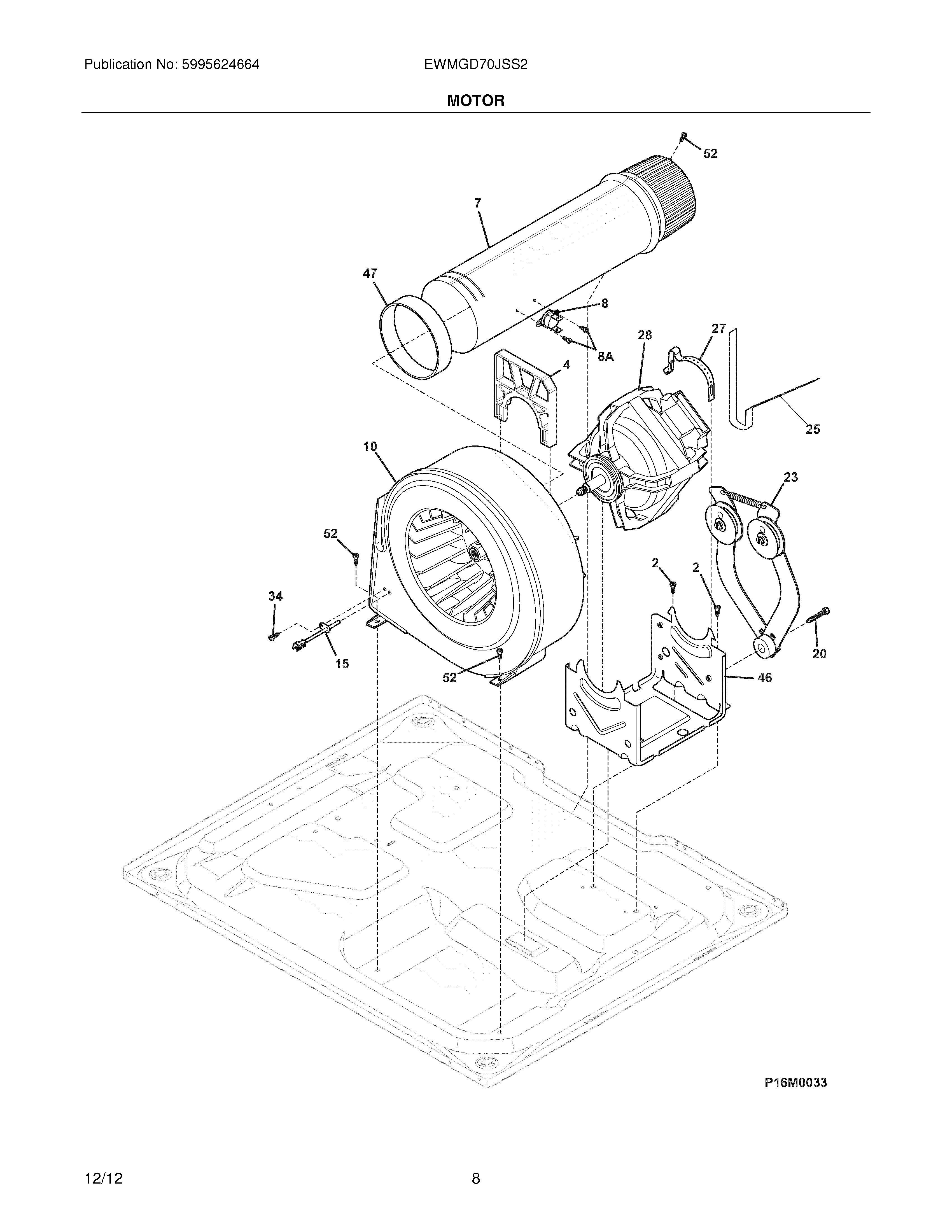

EWMGD70JSS2 09 – MOTOR/FAN

Products

Position	Product
NI	WCI 131089700
NI	137030800 Frigidaire Nut
4	LOCK, BLOWER HOUSING
7	5304509710 Frigidaire Tube
8A	134935200 Frigidaire Screw
8	134711401 Frigidaire Dryer Thermal Fuse
10	134690800 Frigidaire Dryer Blower Housing Assembly with Wheel
15	134711300 Frigidaire Washer Thermister
20	131017900 Frigidaire Screw
23	134784400 Frigidaire Idler Arm Assembly
25	5 RIB DRYER BELT
27	134242400 Frigidaire Washer Clamp Assembly
28	137116000 Frigidaire Dryer Motor Assembly
34	131243700 Frigidaire Screw
46	134707400 Frigidaire Bracket
47	WCI 131633300
52	131168200 Frigidaire Dryer Screw
