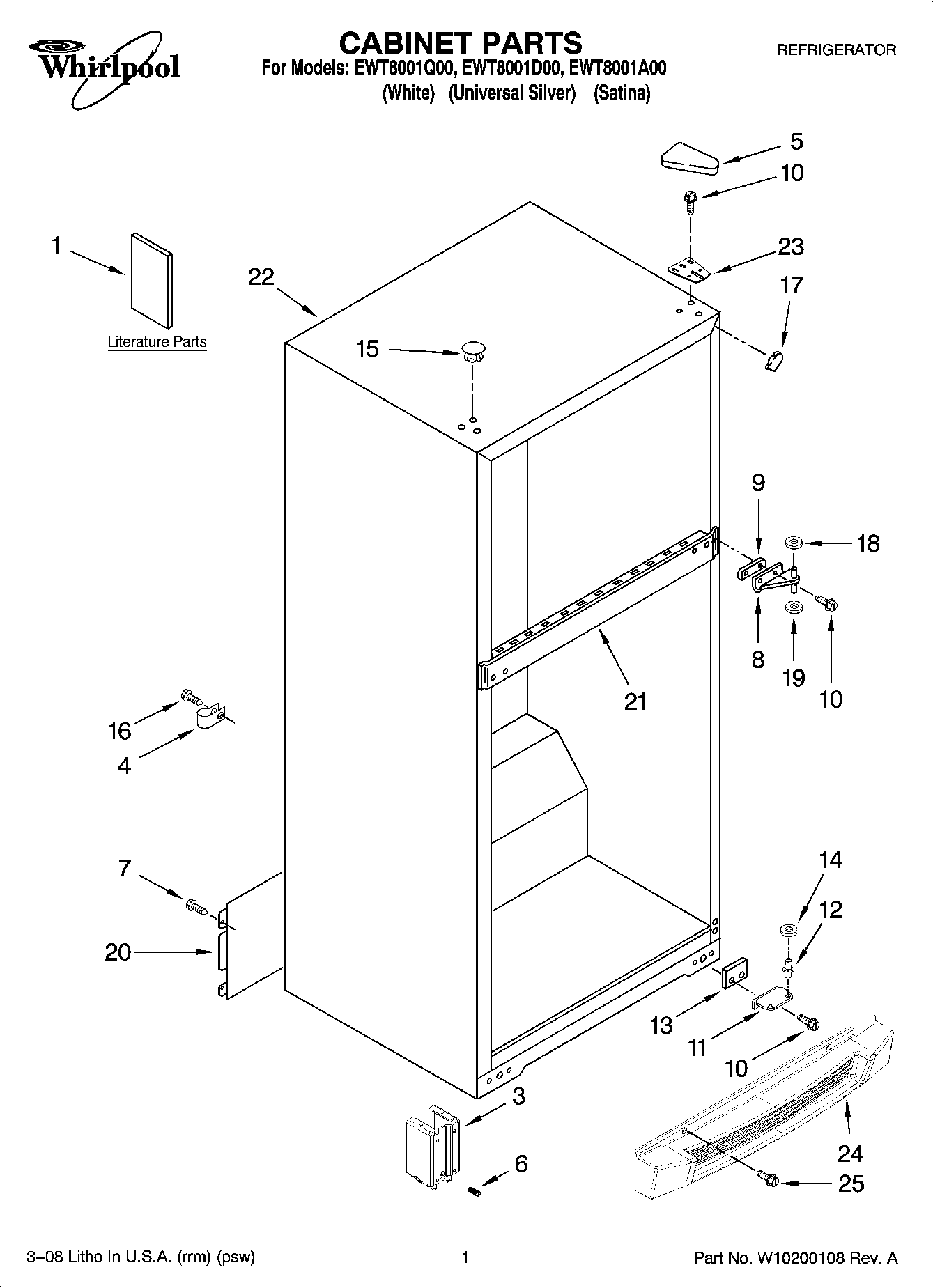

EWT8001A00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
3	2264963 Whirlpool Cabinet Roller
4	489348 Whirlpool Refrigerator Tube Clamp
5	2213360D Whirlpool Refrigerator Cover
5	WP2213360 Whirlpool Refrigerator Cover
6	2222100 Whirlpool Refrigerator Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP489497 Whirlpool Screw
11	WP2325482 Whirlpool Bottom Hinge
12	WP2325483 Whirlpool Hinge Pin
13	WP2201567 Whirlpool Hinge Shim
14	WP487576 Whirlpool Washer
15	WP2151652 Whirlpool Refrigerator Button Plug
15	Hole Plug (6) (Silver)
16	WP489442 Whirlpool Refrigerator Screw
17	W10859322 Whirlpool Refrigerator Filler
17	2166003D Whirlpool Refrigerator Filler
18	WP489467 Whirlpool Hinge Shim
19	WP487802 Whirlpool Refrigerator Washer
20	2213762 Whirlpool Refrigerator Unit Cover
21	Rail, Center (Not Serviced)
22	Cabinet, (Not A Serviceable Part)
23	W11169703 Whirlpool Refrigerator Shim
24	Grill (Silver)
24	Grill (White)
