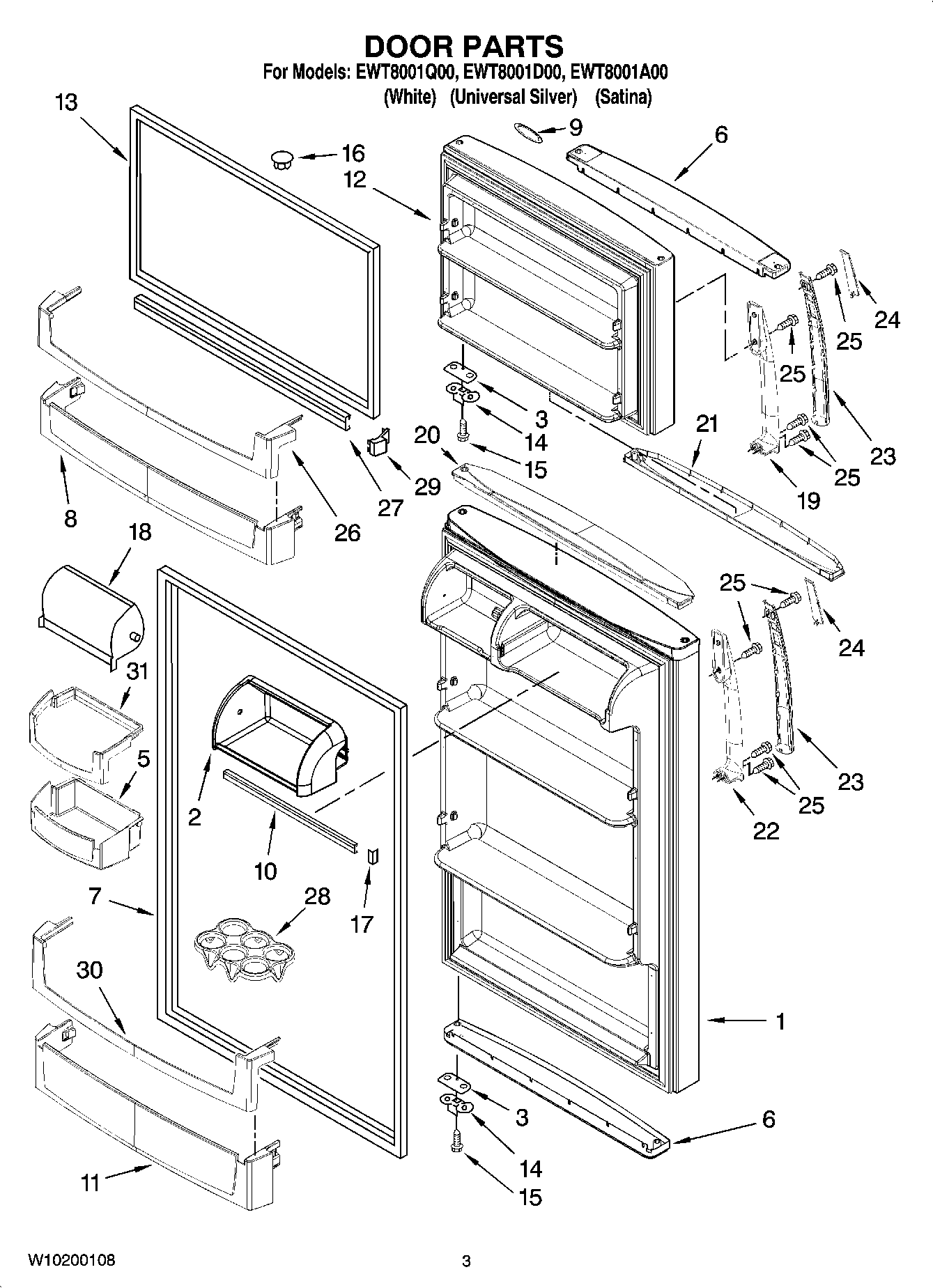

EWT8001A00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Items 6 & 7) (Universal Silver)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
1	Refrigerator Door (Includes Items 6 & 7) (Satina)
2	Utility Comprtmnt.
3	WP2258681W Whirlpool Refrigerator Shim
5	BIN, DOOR
6	Endcap, RC & FC (Silver)
6	ENDCAP (WHITE)
7	WP2319264W Whirlpool Refrigerator FIP Gasket
8	Trivet (FC)
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Trim, Door Shelf
11	TRIM, DOOR
12	FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE)
12	FREEZER DOOR (INCLUDES ILLUS. 15) (SATINA)
12	Freezer Door (Includes Items 6 & 13) (Universal Silver)
13	GASKET-FIP
14	W11745278 Whirlpool Bracket
15	SCREW
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	ENDCAP-TRM
18	2325501 Whirlpool Door Compartment
19	2319301W Whirlpool Handle Assembly
19	2319301D Whirlpool Handle
20	ENDCAP, TOP RC (WHITE)
20	End Cap-Handle-RC (Silver)
21	2316410W Whirlpool Door Trim
21	End Cap-Handle-FC (Silver)
22	2319300D Whirlpool Handle Assembly
22	HANDLE, RC (WHITE)
23	2319302D Whirlpool Handle Trim
23	2319302W Whirlpool Handle Trim
24	Insert-Cap-Handle
25	WP489491 Whirlpool Refrigerator Screw
26	Collar-Trivet-FC
27	TRIM, DOOR SHELF
28	Egg Rack
29	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
30	Collar-Trivet-RC
31	COLLAR, BIN-RC
