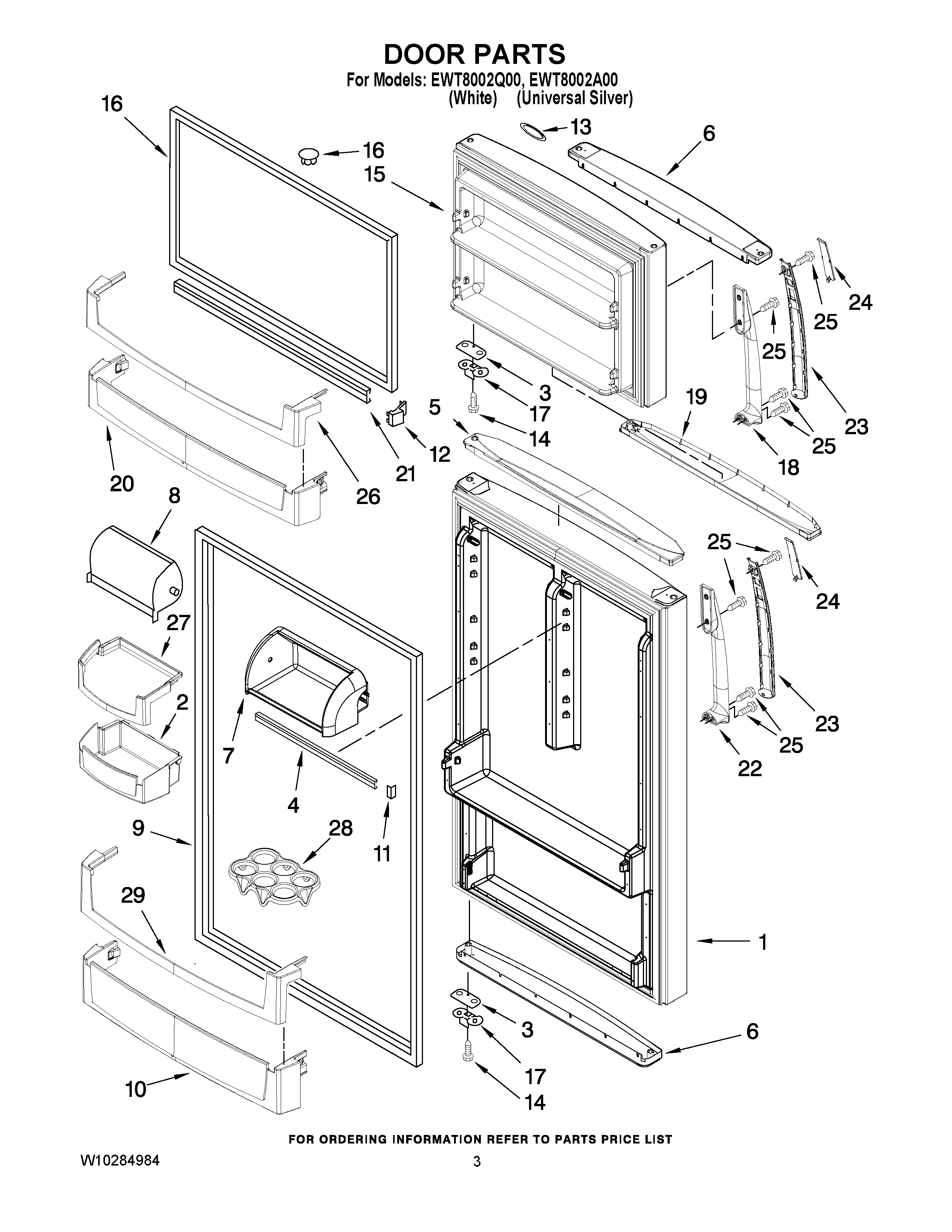

EWT8002A00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Items 6 & 7) (Satina)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
2	BIN, DOOR
3	WP2258681W Whirlpool Refrigerator Shim
4	WPW10234241 Whirlpool Door Shelf Trim
5	ENDCAP, TOP RC (APOLLO GREY)
5	ENDCAP, TOP RC (WHITE)
6	ENDCAP (APOLLO GREY)
6	ENDCAP (WHITE)
7	Utility Comprtmnt.
8	2325501 Whirlpool Door Compartment
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	TRIM, DOOR
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	SCREW
15	FREEZER DOOR (INCLUDES ILLUS. 16) (WHITE)
15	FREEZER DOOR (INCLUDES ILLUS. 15) (SATINA)
16	GASKET-FIP
17	W11745278 Whirlpool Bracket
18	2319301W Whirlpool Handle Assembly
18	2319301D Whirlpool Handle
19	2316410W Whirlpool Door Trim
19	ENDCAP, BOTTOM FC (APOLLO GREY)
20	Trivet (FC)
21	TRIM, DOOR SHELF
22	2319300D Whirlpool Handle Assembly
22	HANDLE, RC (WHITE)
23	2319302W Whirlpool Handle Trim
23	2319302D Whirlpool Handle Trim
24	Insert-Cap-Handle
25	WP489491 Whirlpool Refrigerator Screw
26	Collar-Trivet-FC
27	COLLAR, BIN-RC
28	Egg Rack
29	Collar-Trivet-RC
