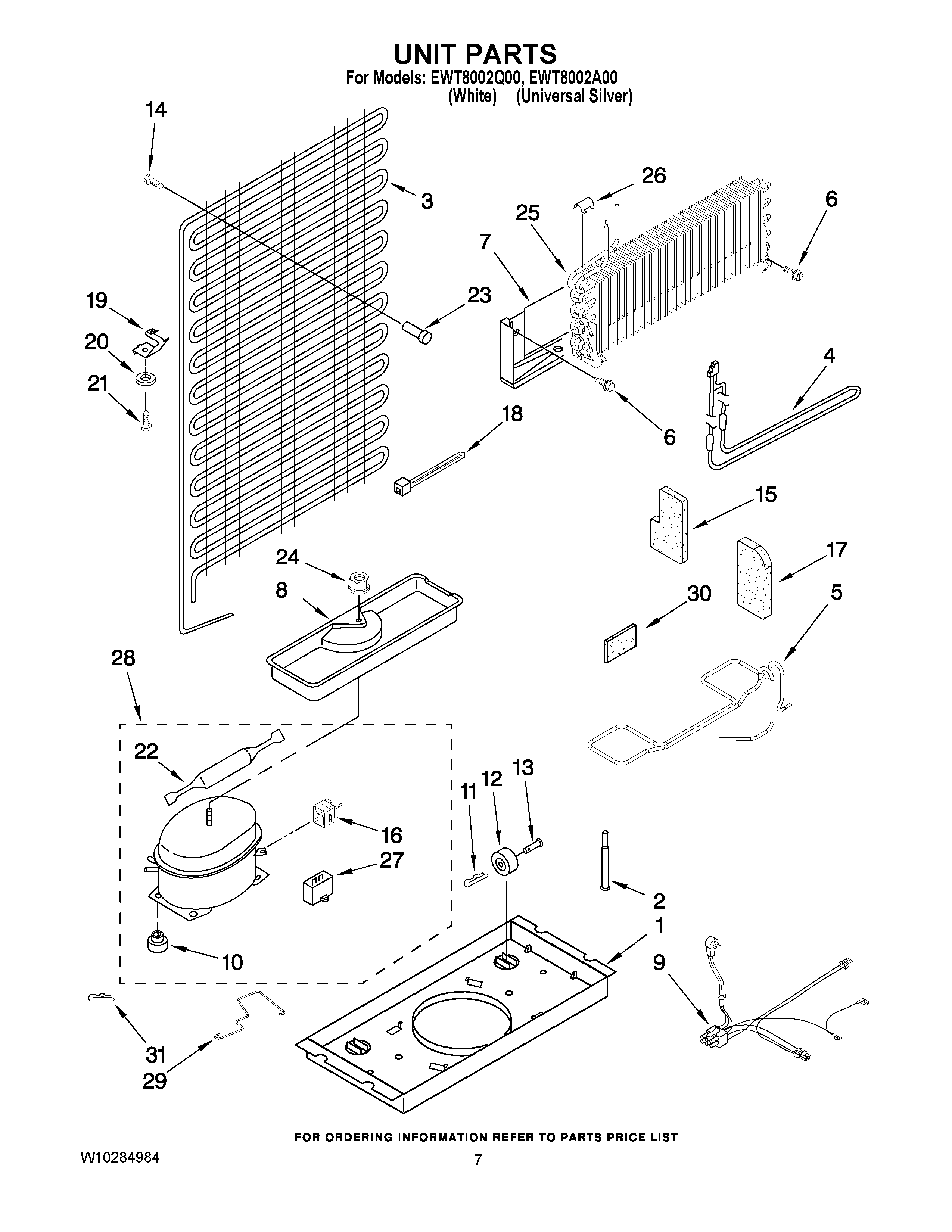

EWT8002A00 04 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	WPW10222451 Whirlpool Refrigerator Support
2	W11661102 Whirlpool Tube
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	TUBE, DISCHARGE (INCL. PRE-COOLER)
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Tray, Evaporator
9	WIRE ASSY. UNIT
10	876811 Whirlpool Grommet
10	WP2163786 Whirlpool Refrigerator Grommet
11	WP2174706 Whirlpool Refrigerator Pin Hitch
12	WPW10475495 Whirlpool Roller Assembly
13	W11594405 Whirlpool Axle
15	8201619 Whirlpool Refrigerator Support Assembly
16	2321301 Whirlpool Start Device
18	WPW10339879 Whirlpool Wire Tie
20	8526417 Whirlpool Washer
21	Screw
22	WPW10143759 Whirlpool Dryer Filter
22	W10843121 Whirlpool Refrigerator Tube
23	2258452 Whirlpool Refrigerator Spacer
24	285002 Whirlpool Nut
25	WP2263920 Whirlpool Refrigerator Evaporator
26	9791833 Whirlpool Refrigerator Clip
27	2321245 Whirlpool Refrigerator Capacitor
28	W10170300 Whirlpool Compressor
29	Retainer
30	W11553819 Whirlpool Refrigerator Insulation
31	Clip, Compressor
