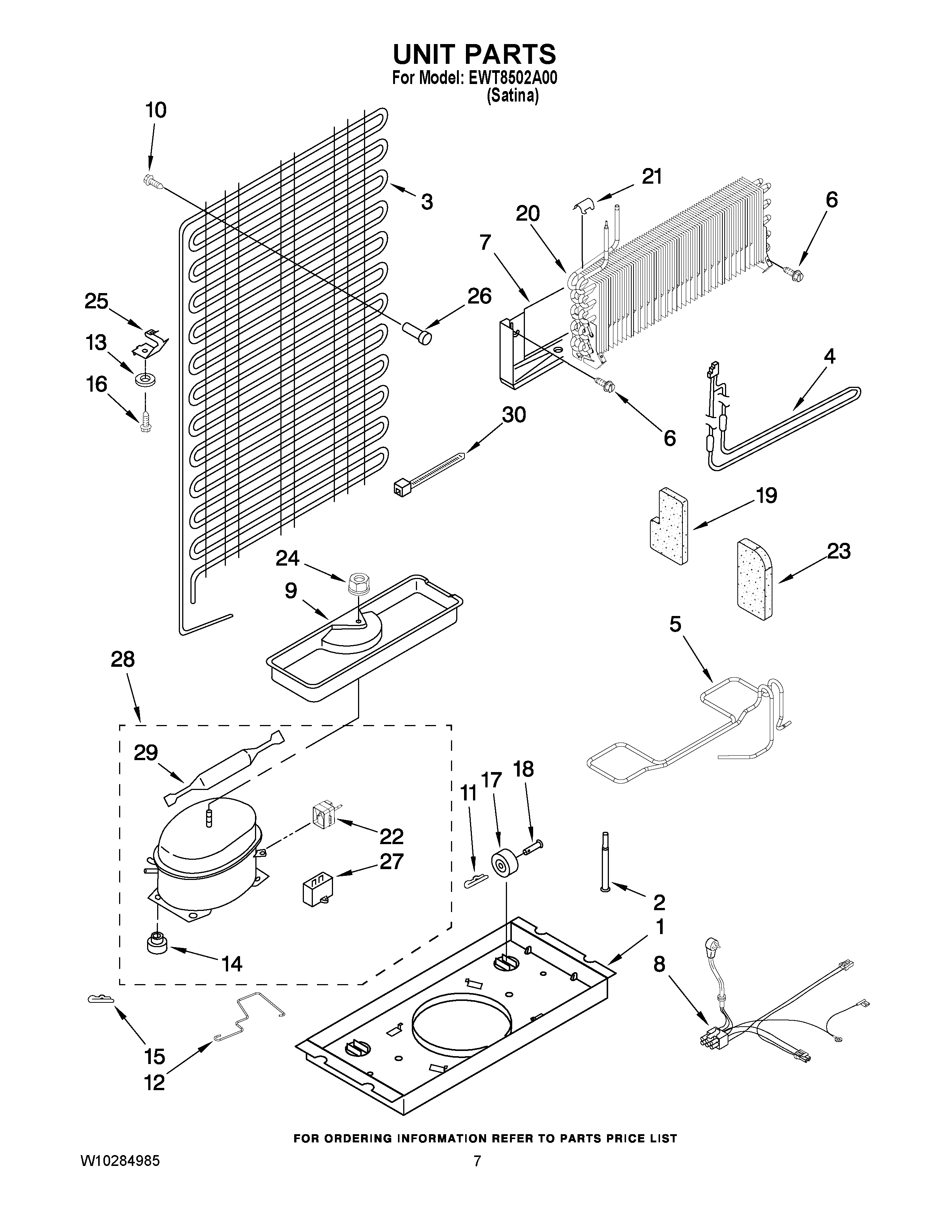

EWT8502A00 04 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	WPW10222451 Whirlpool Refrigerator Support
2	W11661102 Whirlpool Tube
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	TUBE, DISCHARGE (INCL. PRE-COOLER)
7	Heat Shield
8	WPW10151677 Whirlpool Refrigerator Wire Harness
9	Tray, Evaporator
10	Screw
11	WP2174706 Whirlpool Refrigerator Pin Hitch
12	Retainer
13	8526417 Whirlpool Washer
14	WP2163786 Whirlpool Refrigerator Grommet
14	876811 Whirlpool Grommet
15	Clip, Compressor
16	WP489442 Whirlpool Refrigerator Screw
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	2321301 Whirlpool Start Device
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	2321245 Whirlpool Refrigerator Capacitor
28	W10170300 Whirlpool Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
