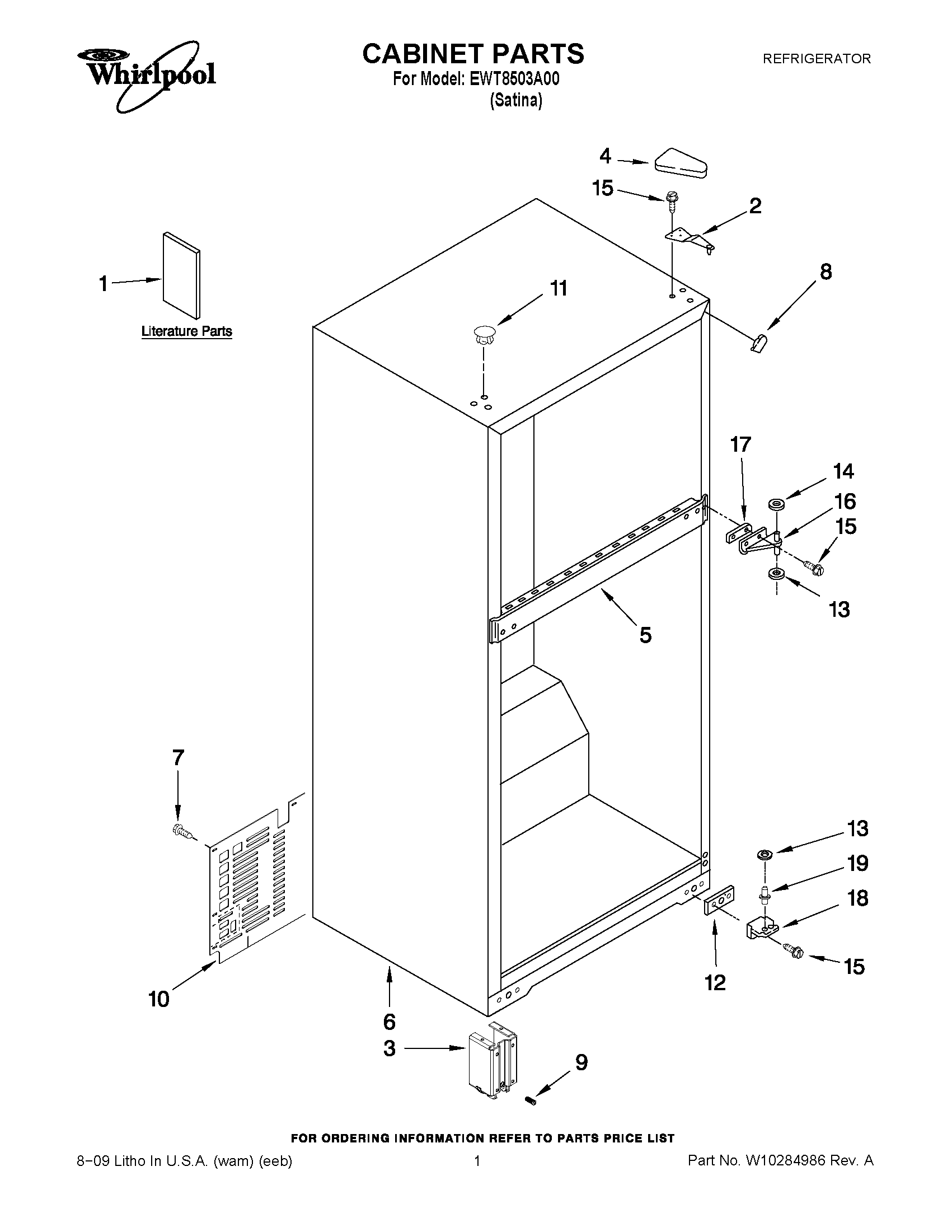

EWT8503A00 01 – CABINET PARTS

EWT8503A00 01 – CABINET PARTS

Written by

in

EWT8503A00 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1ENERGY LABEL
22321179 Whirlpool Door Hinge
32264963 Whirlpool Cabinet Roller
42213360D Whirlpool Refrigerator Cover
6CABINET (NOT A SERVICEABLE PART)
7WP489442 Whirlpool Refrigerator Screw
82166003D Whirlpool Refrigerator Filler
92222100 Whirlpool Refrigerator Screw
102213762 Whirlpool Refrigerator Unit Cover
11WP2183998 Whirlpool Refrigerator Button Plug
12WP2201567 Whirlpool Hinge Shim
13WP487576 Whirlpool Washer
14WP489467 Whirlpool Hinge Shim
15WP489497 Whirlpool Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
18WP2325482 Whirlpool Bottom Hinge
19WP2325483 Whirlpool Hinge Pin
