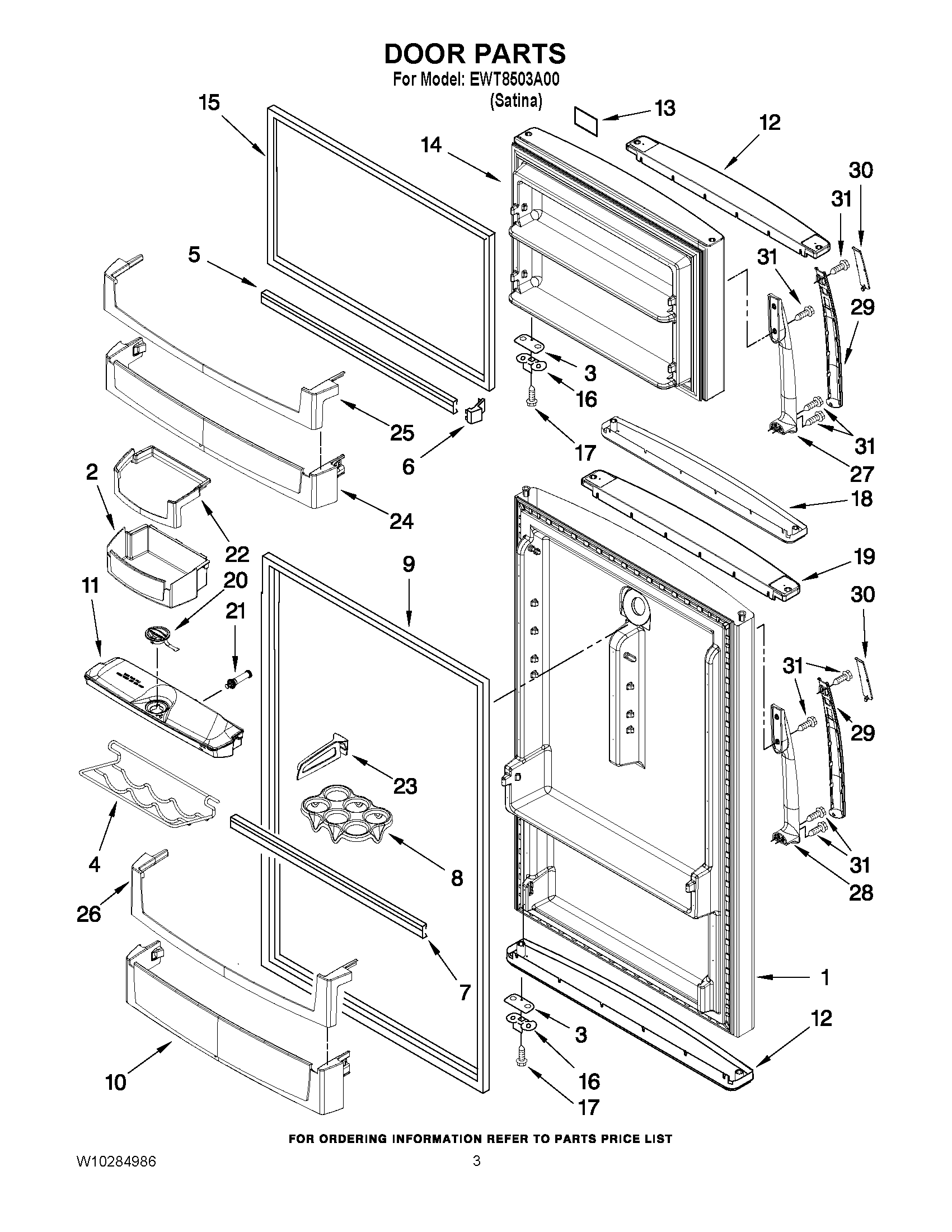

EWT8503A00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
2	BIN, DOOR
3	WP2258681W Whirlpool Refrigerator Shim
5	2324271 Whirlpool Door Trim
6	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7	TRIM, DOOR SHELF
8	EGG RACK
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	TRIM, DOOR
12	ENDCAP (APOLLO GREY)
13	WP2213265 Whirlpool Refrigerator Nameplate
14	FREEZER DOOR (INCLUDES ILLUS. 15) (SATINA)
15	GASKET-FIP
16	W11745278 Whirlpool Bracket
17	SCREW
18	ENDCAP, BOTTOM FC (APOLLO GREY)
19	ENDCAP, TOP RC (APOLLO GREY)
20	W10138779A Whirlpool Reservoir
21	2328499A Whirlpool Valve
22	COLLAR, BIN-RC
23	BOTTLE RETAINER
24	Trivet (FC)
25	Collar-Trivet-FC
26	Collar-Trivet-RC
27	2319301D Whirlpool Handle
28	2319300D Whirlpool Handle Assembly
29	2319302D Whirlpool Handle Trim
30	Insert-Cap-Handle
31	WP489491 Whirlpool Refrigerator Screw
