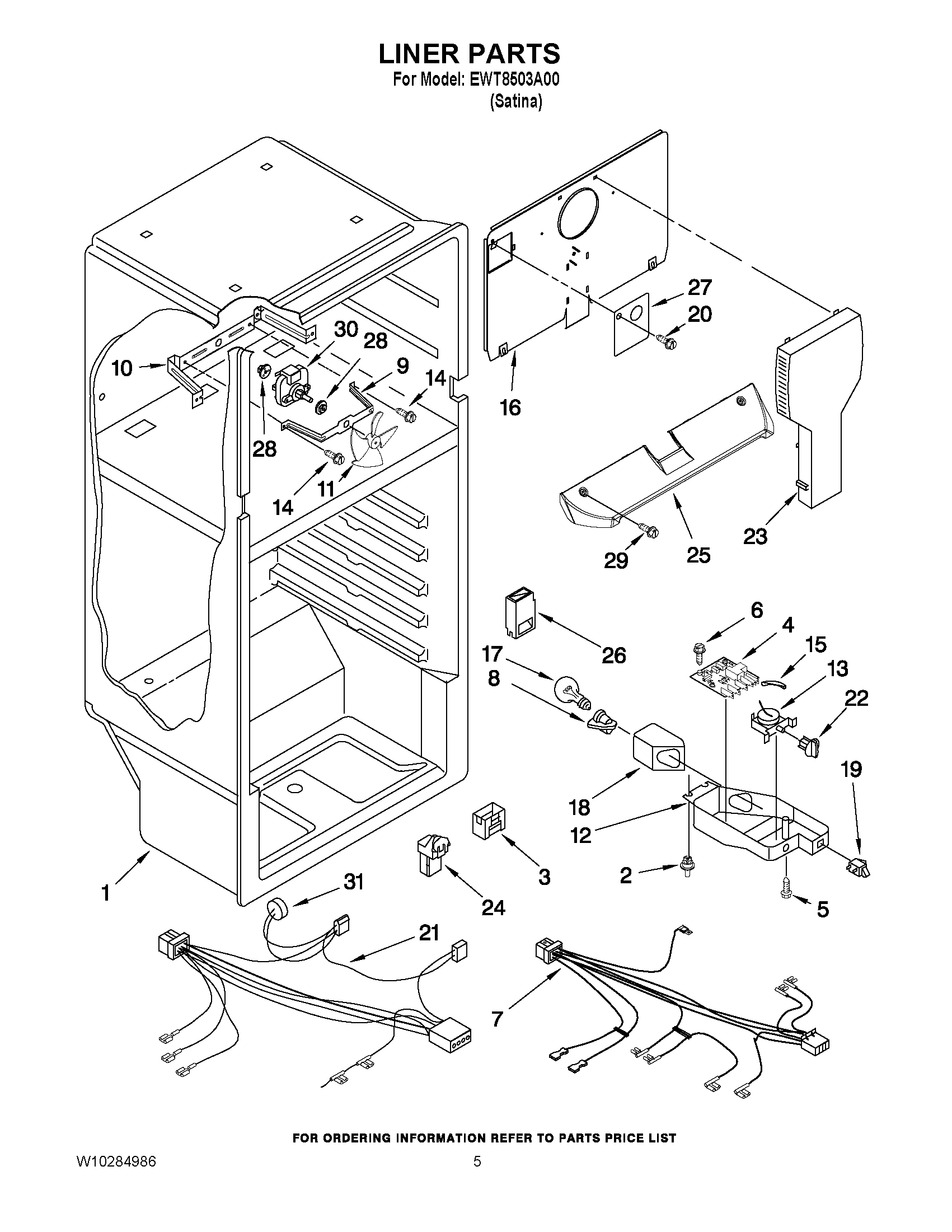

EWT8503A00 03 – LINER PARTS

EWT8503A00 03 – LINER PARTS

Written by

in

EWT8503A00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2939962 Whirlpool Refrigerator Rivet
3Cover, Air Diffuser
4WP2188379 Whirlpool Refrigerator Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP487353 Whirlpool Refrigerator Screw
7Wire Assembly Control Box
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11Fan Blade
12Control Box
13WPW10511937 Whirlpool Thermostat Control
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16Cover-Evaporator
17WP67002552 Whirlpool Refrigerator Light Bulb
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP489478 Whirlpool Refrigerator Screw
21WIRING-FREEZER (INCLUDES ITEM 33)
22WP2202885 Whirlpool Refrigerator Thermal Knob
239790408 Whirlpool Refrigerator Air Tower
24Hood And Foil Assembly
25Cover, Air Return
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
28WP2264462 Whirlpool Refrigerator Grommet
29WP489474 Whirlpool Refrigerator Screw
30WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31WP4387500 Whirlpool Refrigerator Bimetallic Defrost
