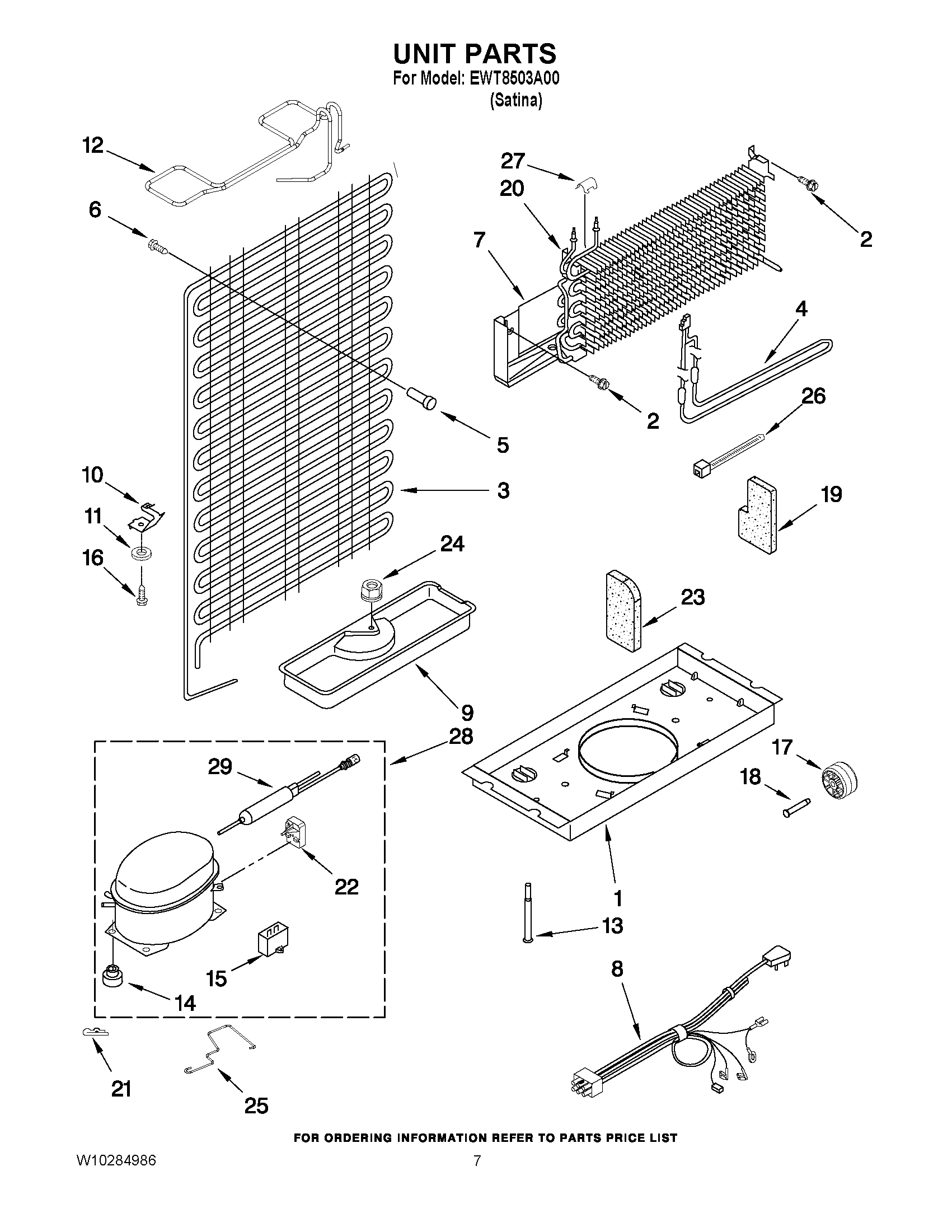

EWT8503A00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10222451 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	WPW10219348 Whirlpool Refrigerator Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	2258452 Whirlpool Refrigerator Spacer
7	Heat Shield
8	WIRE ASSY. UNIT
9	Tray, Evaporator
10	4386951 Whirlpool Refrigerator Clip
11	8526417 Whirlpool Washer
12	TUBE, DISCHARGE (INCL. PRE-COOLER)
13	W11661102 Whirlpool Tube
14	WP2163786 Whirlpool Refrigerator Grommet
14	876811 Whirlpool Grommet
15	2321245 Whirlpool Refrigerator Capacitor
16	Screw
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	Clip, Compressor
22	2321301 Whirlpool Start Device
24	285002 Whirlpool Nut
25	Retainer
26	WPW10339879 Whirlpool Wire Tie
27	9791833 Whirlpool Refrigerator Clip
28	W10170300 Whirlpool Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
