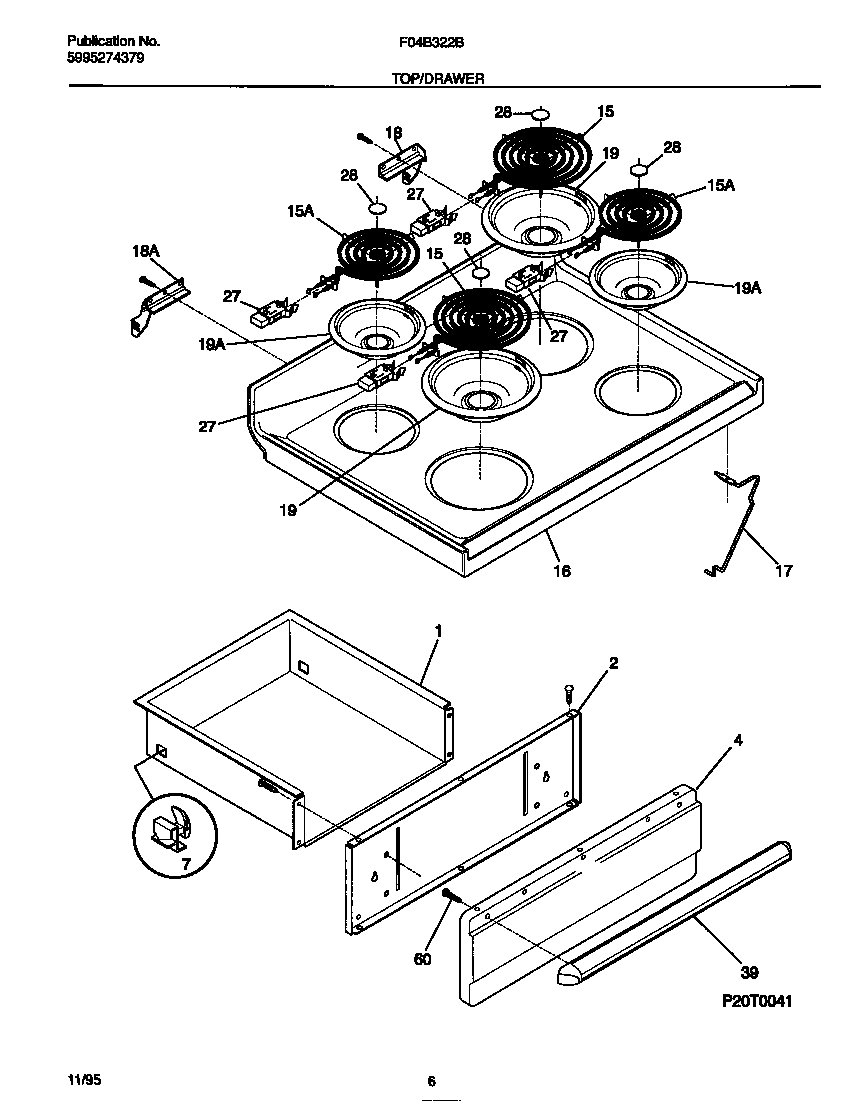

F04B322BDC 04 – TOP/DRAWER

F04B322BDC 04 – TOP/DRAWER

Written by

in

F04B322BDC 04 – TOP/DRAWER

Products

PositionProduct
*24007WCI 316001725
*24008WCI 5303281584
*24010WCI 5303288574
*24009131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
155308011964 Frigidaire Surface Element P1
16WCI 316020908
17316057601 Frigidaire Oven Rod
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
39WCI 316026100
60WCI 5303281379
