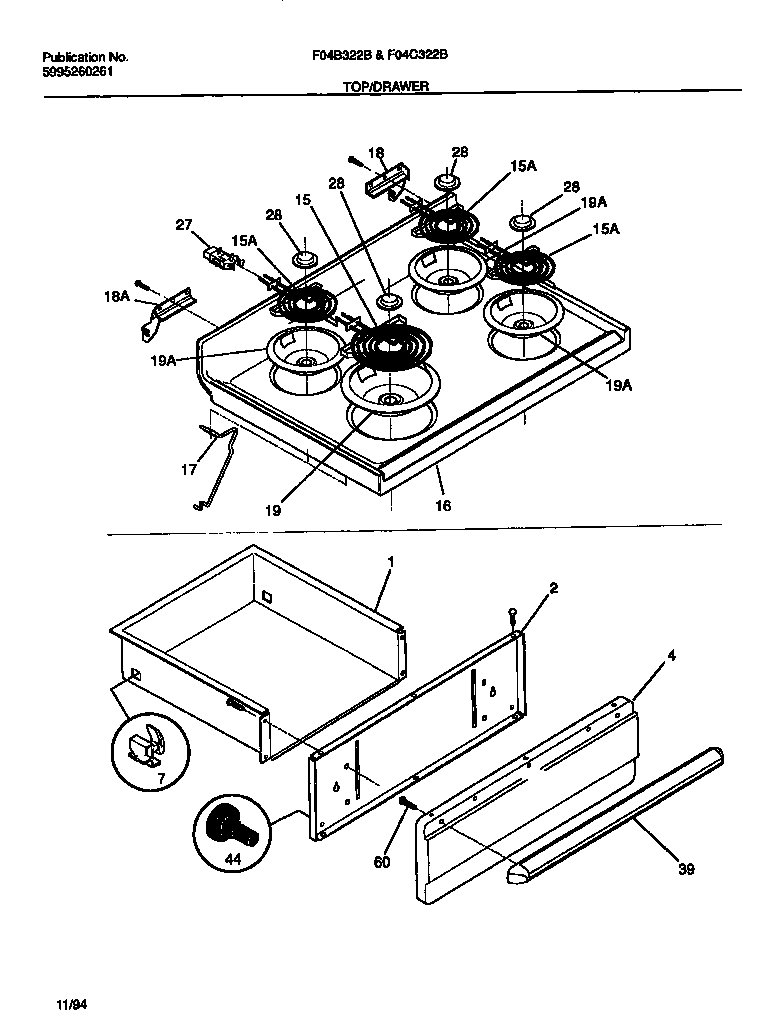

F04B322BWA 04 – TOP/DRAWER

F04B322BWA 04 – TOP/DRAWER

Written by

in

F04B322BWA 04 – TOP/DRAWER

Products

PositionProduct
*01364WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
155308011964 Frigidaire Surface Element P1
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
