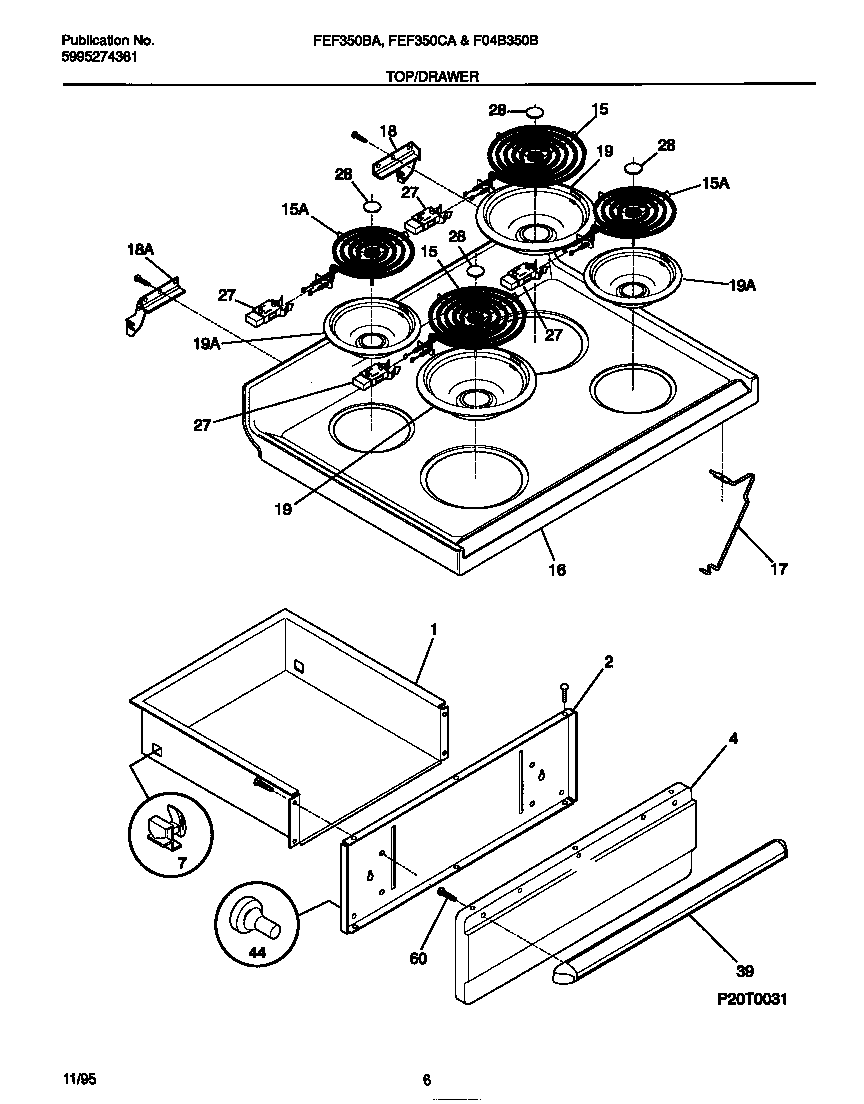

F04B350BDD 04 – TOP/DRAWER

Products

Position	Product
*11727	RIVET-POP, WARING-PLATE
*11728	WCI 316001725
*11726	131243700 Frigidaire Screw
*11730	WCI 5303288574
*11729	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056206
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28A	5303017715 Frigidaire Medallion
28B	WCI 5303296595
39	WCI 316026100
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
