F04B350EDA 04 – TOP/DRAWER

F04B350EDA 04 – TOP/DRAWER

Written by

in

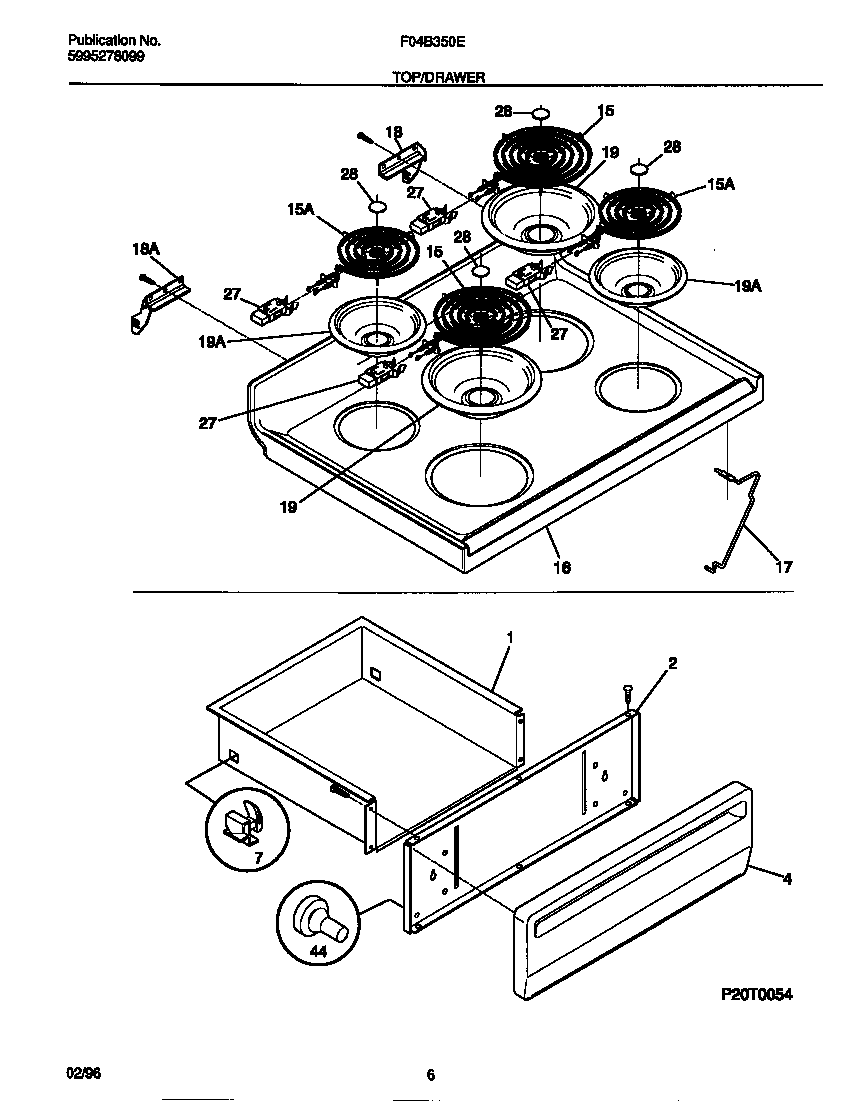

F04B350EDA 04 – TOP/DRAWER

Products

PositionProduct
*41487131243700 Frigidaire Screw
*41485RIVET-POP, WARING-PLATE
*41488WCI 316001725
*41486Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4BSCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4AWCI 316084407
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
