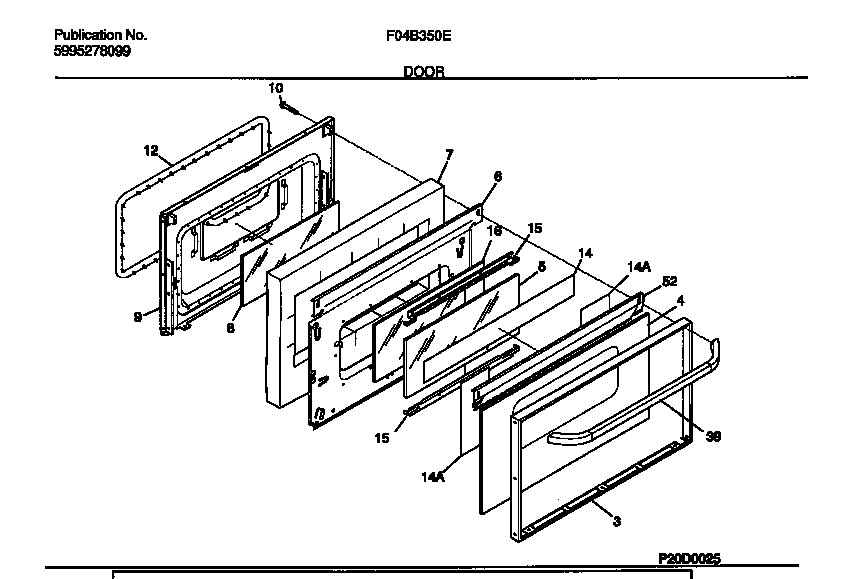

F04B350EDA 05 – DOOR

F04B350EDA 05 – DOOR

Written by

in

F04B350EDA 05 – DOOR

Products

PositionProduct
*41491SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*41490WCI 316065301
*41497131243700 Frigidaire Screw
*41495WCI 5303280311
*414945303271648 Frigidaire Oven Screw
*41489WCI 316055101
*41493WCI 5303269859
*414925303300265 Frigidaire Oven Screw
*414965303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5GLASS-OVEN DOOR, AIRWASH
6WCI 316088401
7WCI 316076400
8WCI 316088700
9WCI 316066610
10WCI 5303280308
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
395304529996 Frigidaire Handle Kit
52WCI 316081303
