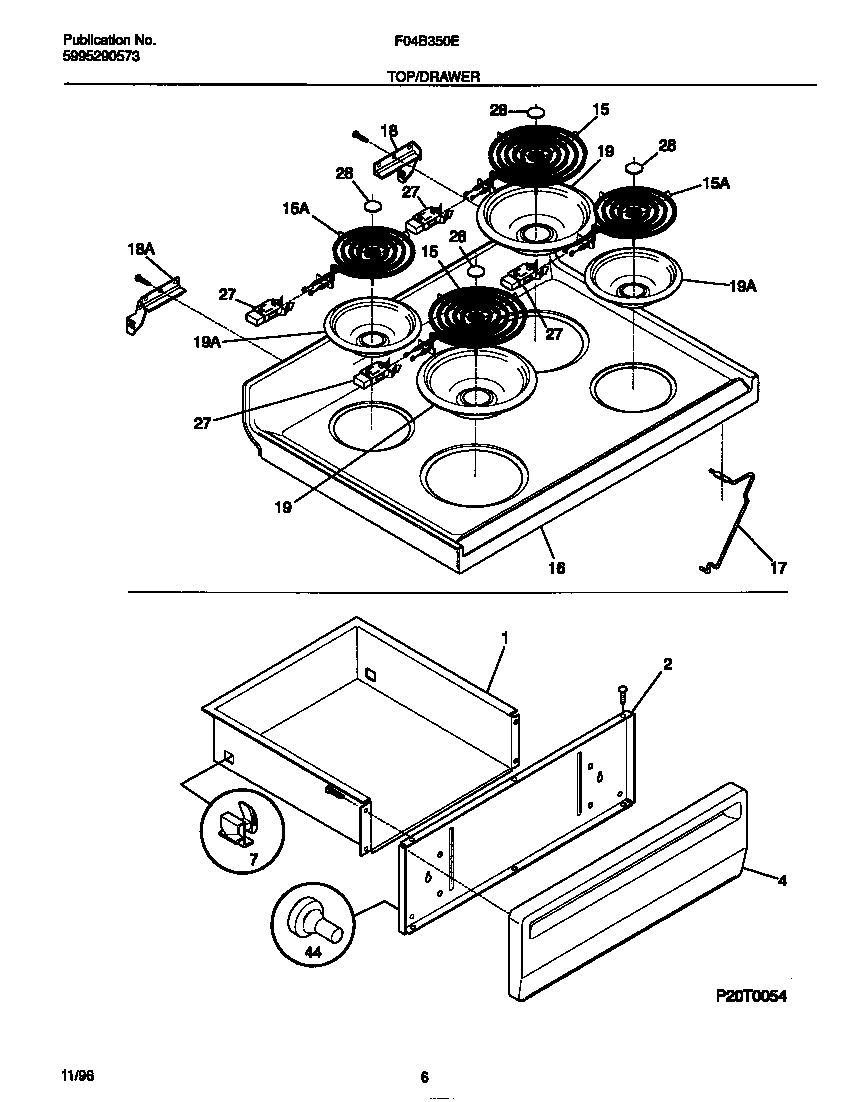

F04B350EDB 04 – TOP/DRAWER

Products

Position	Product
*18245	Screw,cup pt ,8-18 x 0.375 ,chrome
*18244	RIVET-POP, WARING-PLATE
*18248	WCI 316001725
*18247	131243700 Frigidaire Screw
*18246	WCI 5303280311
1	DRAWER-UTILITY
2	SHIELD-PNL
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4A	WCI 316084407
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442300 Frigidaire Oven 2100W Coil Element 8
15	318372210 Frigidaire Oven Range 6" 1250W Surface Element
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
44	3131903 Frigidaire Door/Drawer Bumper
